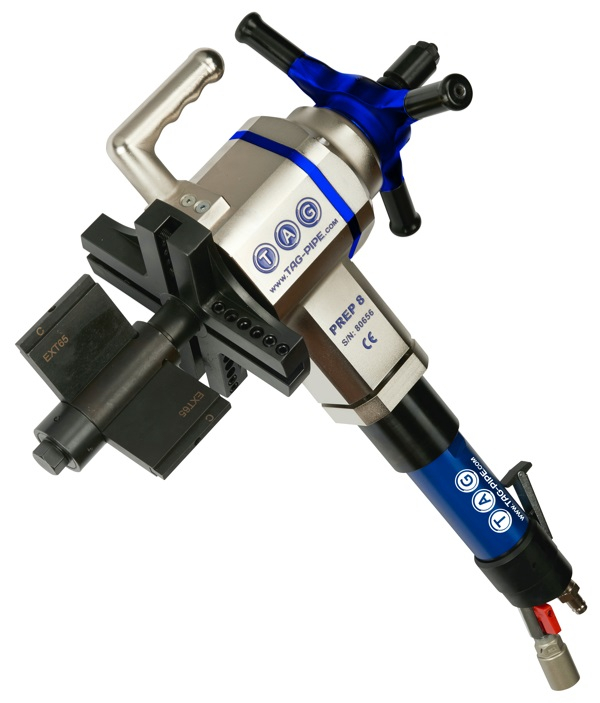

Bevelling Machine TAG Pipe PREP 8 - tube range 50 до 207mm.
Common Characteristics

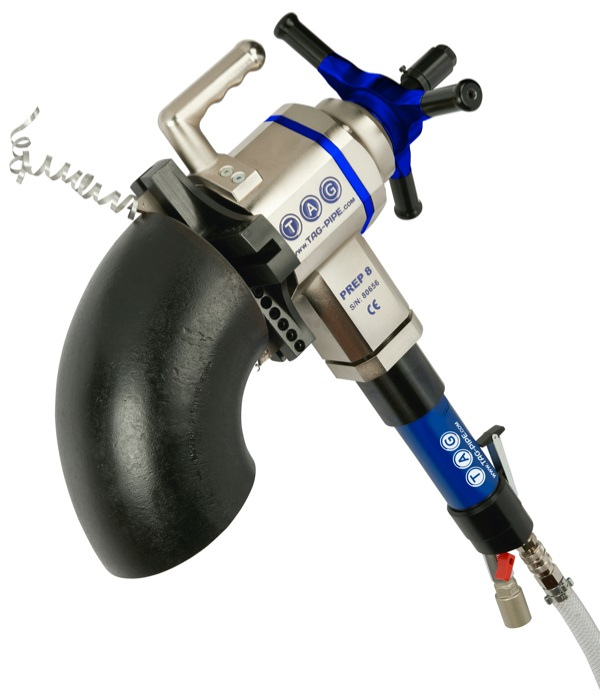

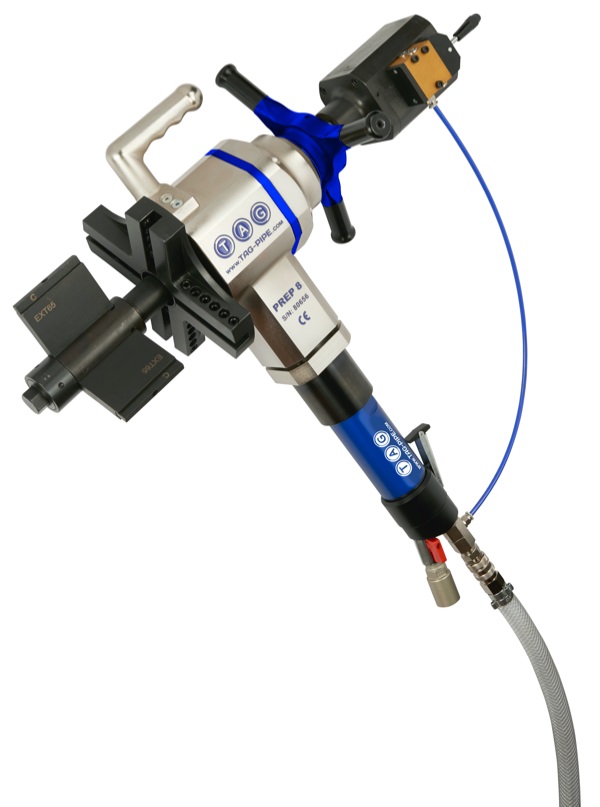

The machine TAG PIPE PREP 8 is available with electric and pneumatic drive or battery. A 4 jaw tool holder (chuck) allows use of up to 4 insert or form tools to enable bevelling of heavy wall pipe & tube, simultaneous external, internal and facing of tubes can be performed with ease for accure repatitive work.
Technical Data
| Parameter | Value |
|---|
| Locking tube range | 50-211
mm |
| Recommended working range | 2-8
inch |
| Idle speed | 5-34
rpm |
| Torgue | 45/441+
kgm/nm |
| Length of axial feed | 40
mm |
| Max acoustic radiation | 75
dB |
| Max operating temperature | 55
C° |
| Weight | 26
kg |
| Motor power | 1700
W |
| Voltage | 220
V |
| Frequency | 50/60
Hz |
