Chamfering and length measuring SOCO FM-76V

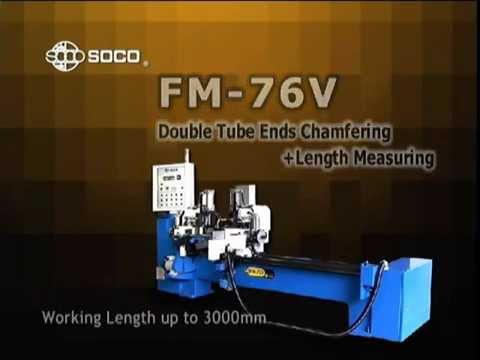

FM-76V OD 76mm Double Tube Ends Chamfering + Measuring
Common Characteristics
FM-76V OD 76mm Double Tube Ends Chamfering + Measuring

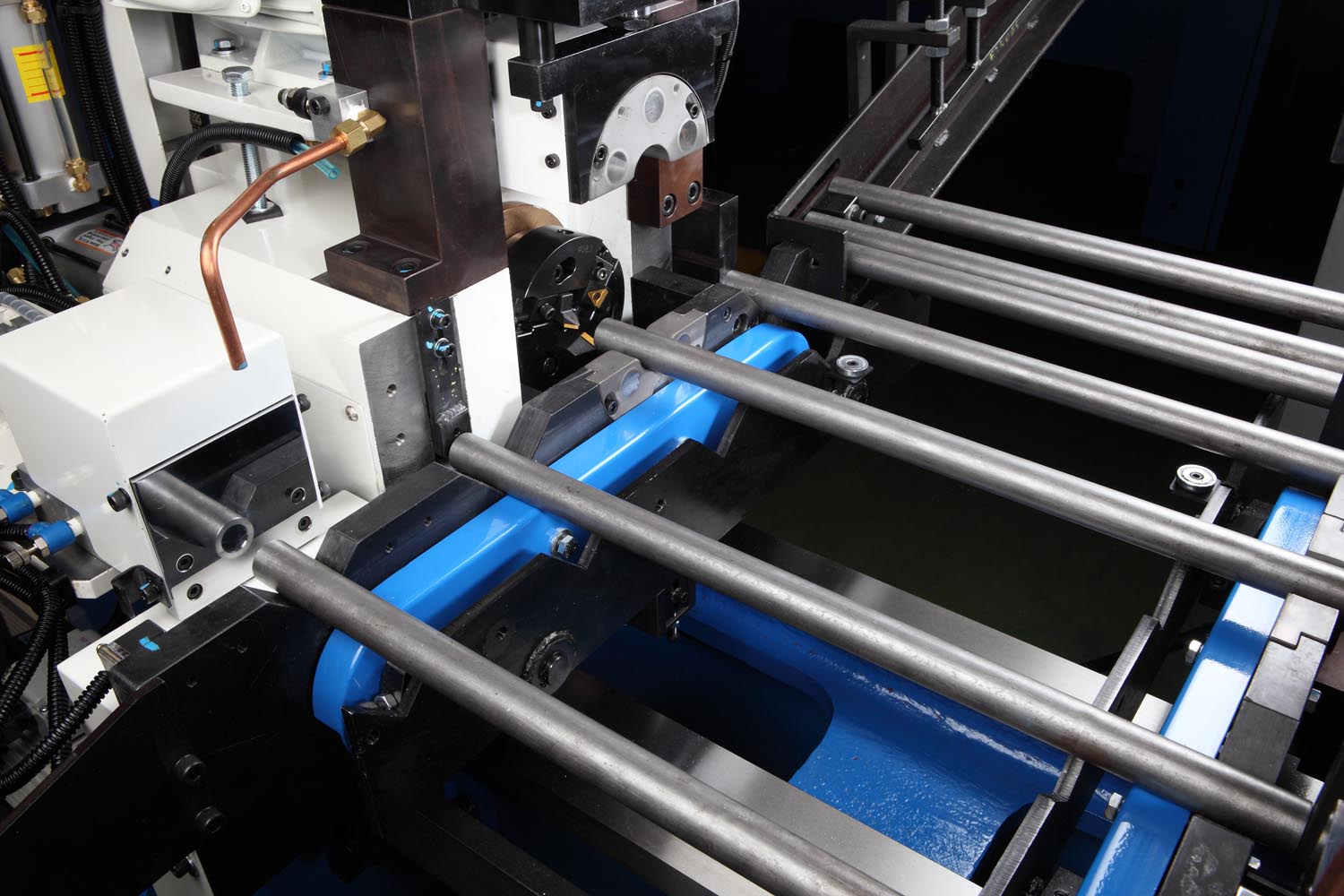

With the SOCO FM series for Chamfering + Length Measuring, it is possible to simultaneously chamfer both ends of a tube, with up to 3000 mm in working length (FM-76V) and measure their lengths with tolerances as low as +/- 0.02 mm.

With an optional BTM (Bundle Loading Magazine), the machines offer a completely automatic loading, feeding, chamfering and length measuring processes.

Using an relative length measuring system, the machines may also be programmed to stop after a certain number of pieces do not fall within the specified length tolerance.

This range is suitable for a clean and even chamfer on both ends of the tube, with chamfering the inside + outside (I/O) and face of the material or making a radius (round) chamfer than measuring its length. It may also be used for outside chamfering of solid bars .
Technical Data
ParameterValue
Working capacity tube16-76  mm
Working capacity bar16-30  mm
Weight1470  kg
Working length250-3000  mm
