The E-Z FAB is a revolutionary new cutting and bevelling system for pipes
Common Characteristics

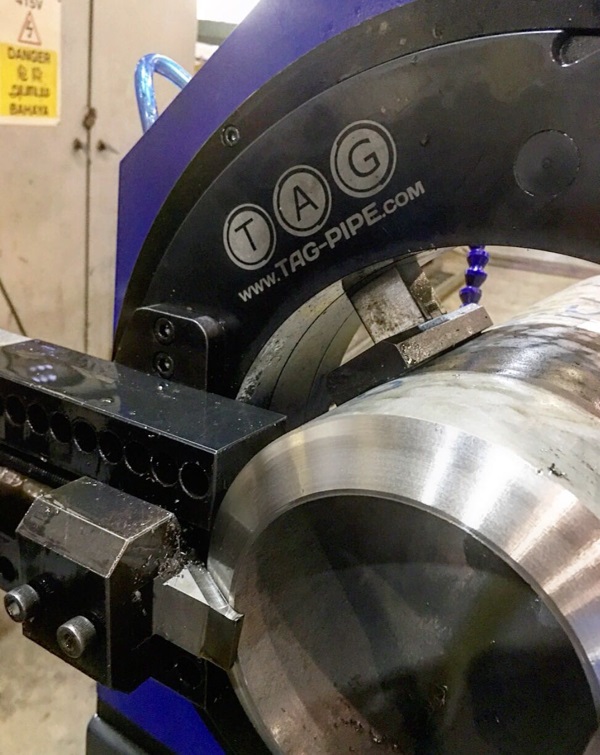

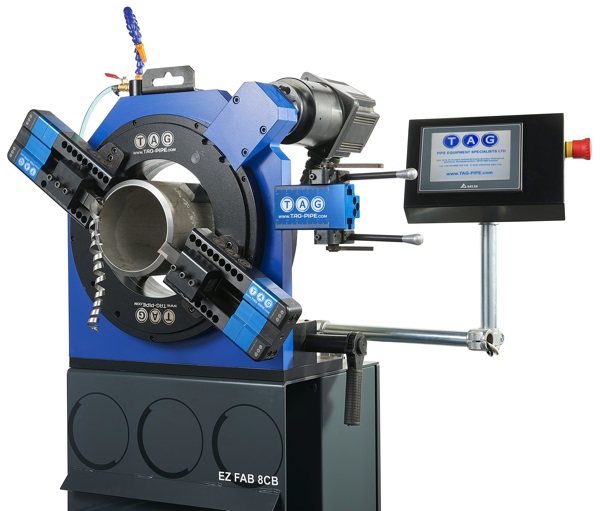

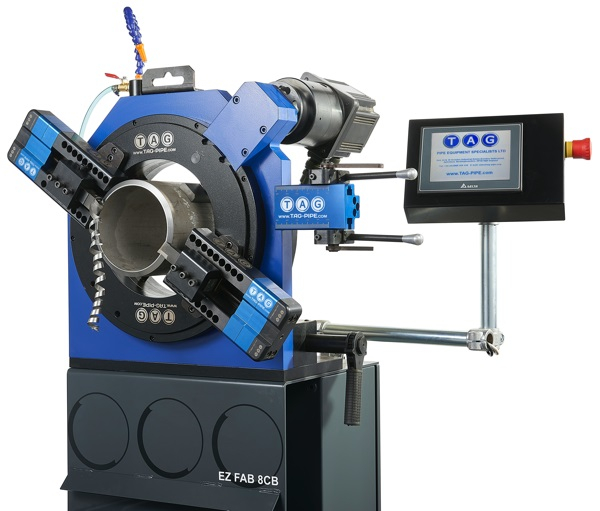

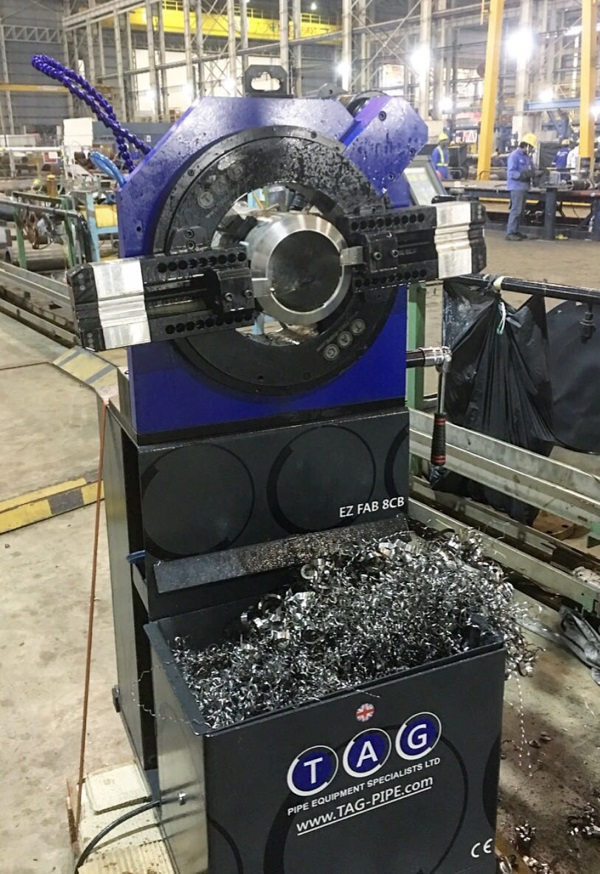

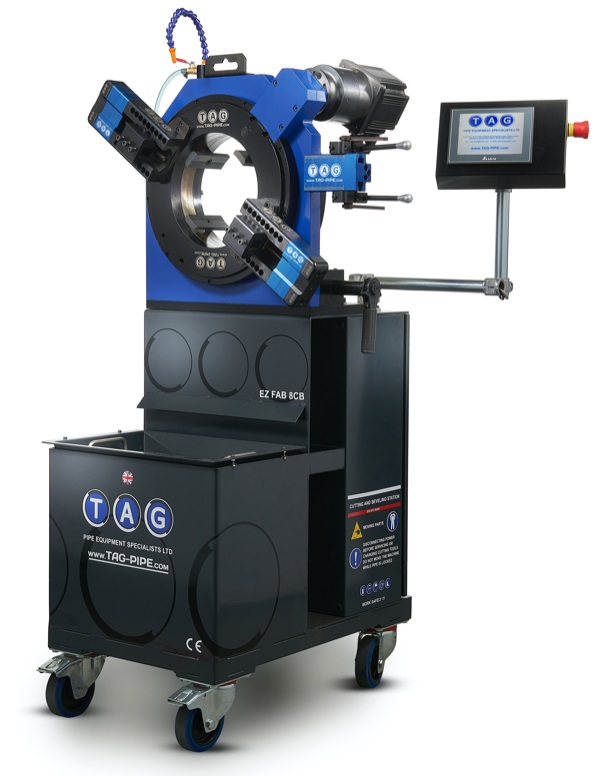

The E-Z FAB is Ideally suited, but not limited to workshops, and high productivity process environments. The E-Z FAB utilises a similar principle to the clamshell split frame cutting and bevelling machines. The E-Z FAB consists of a movable trolley fitted with a case outer body housing the rotating, working cutting ring which is driven by an NC controlled powerful 1.5kw servo electric motor. This design provides strength, rigidity and speed as well as high efficiency and precision to the pipe cutting process.
Touch screen
The numerically controlled (NC) servo motor offers unrivalled power and cut speeds, from a touch screen Delta control system, conveniently mounted on an adjustable stalk-arm for operating ease.
The touch screen control comes with 2 main settings: manual and automatic.
The automatic option offers pre-set cut rotation speeds for pipes within each machines’ range, whilst the manual option allows the operator to adjust the speed of the machine themselves. * Touch screen controls can be customised during commissioning/training.
Range O/D : 270 - 420 mm
Wall thickness : 6 - 40 mm
