The Eurostamp 2067 is a high-quality 4V lower press brake die designed for precision sheet metal bending applications. Manufactured according to the Amada / Promecam European tooling standard, it is compatible with most press brake machines equipped with European-style tooling systems.
The die is made from hardened C45 steel, providing excellent wear resistance, high bending accuracy, and a long service life. Featuring four V-openings, it offers exceptional flexibility for bending different sheet thicknesses without the need for frequent tool changes. The maximum permissible load capacity is 80 t/m.
Common Characteristics
Eurostamp 2067 Press Brake Die
The Eurostamp 2067 is a high-quality 4V lower press brake die designed for precision sheet metal bending applications. Manufactured according to the Amada / Promecam European tooling standard, it is compatible with most press brake machines equipped with European-style tooling systems.
The die is made from hardened C45 steel, providing excellent wear resistance, high bending accuracy, and a long service life. Featuring four V-openings, it offers exceptional flexibility for bending different sheet thicknesses without the need for frequent tool changes. The maximum permissible load capacity is 80 t/m.
The Eurostamp 2067 is designed for air bending and standard sheet metal forming operations in mechanical engineering, metal fabrication, electrical enclosures, metal structures, and other applications requiring high bending precision.
Technical Specifications
Manufacturer: Eurostamp
Model: 2067
Type: Lower Die (4V Die)
Tooling Standard: Amada / Promecam

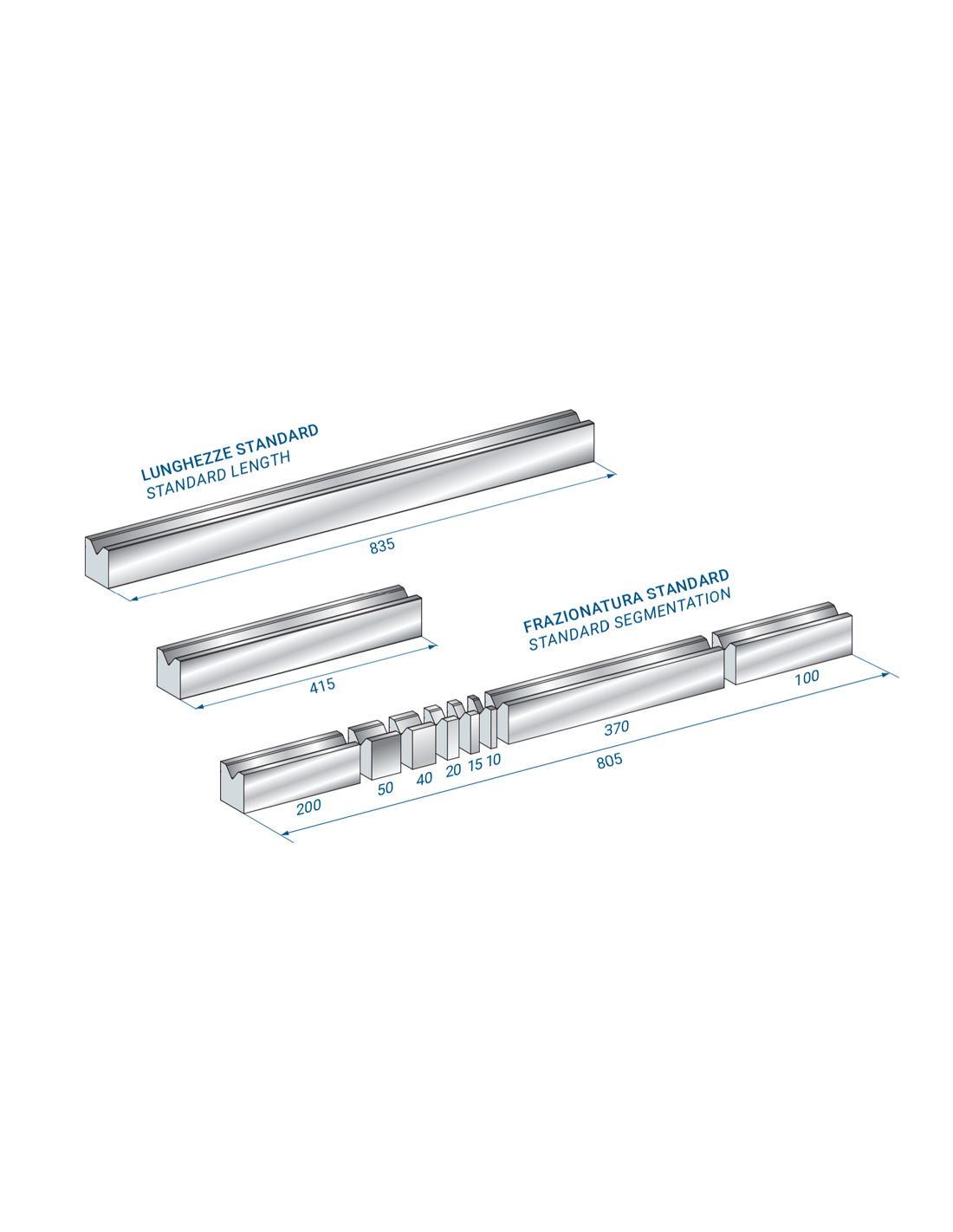

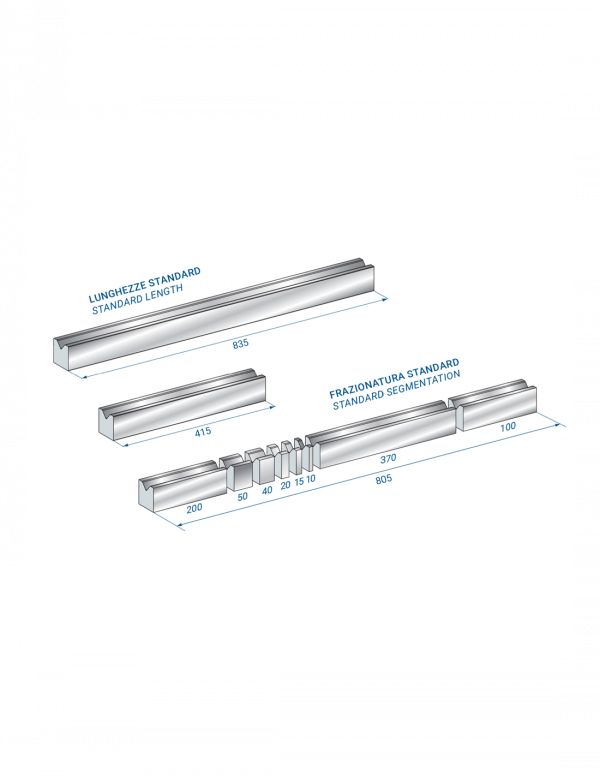

Available Lengths: 415 mm, 805 mm (sectional), and 835 mm
Bending Angle: 85°
Number of V-Openings: 4

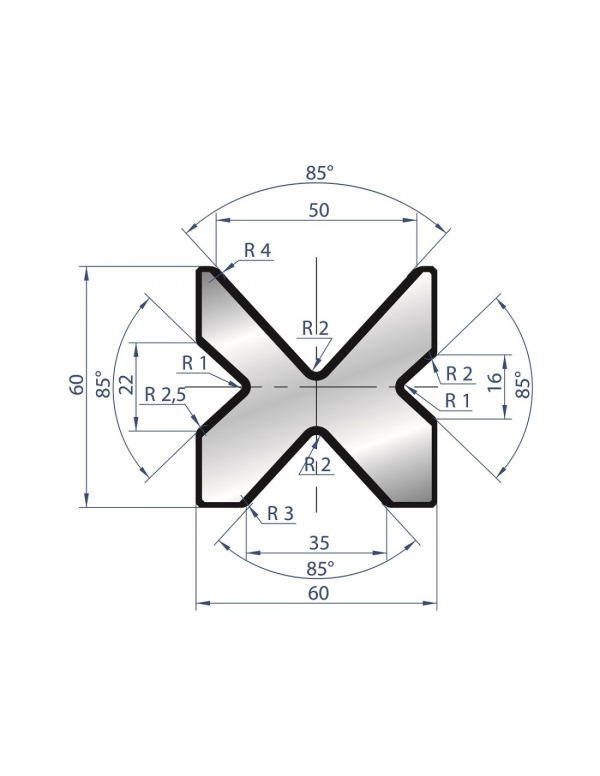

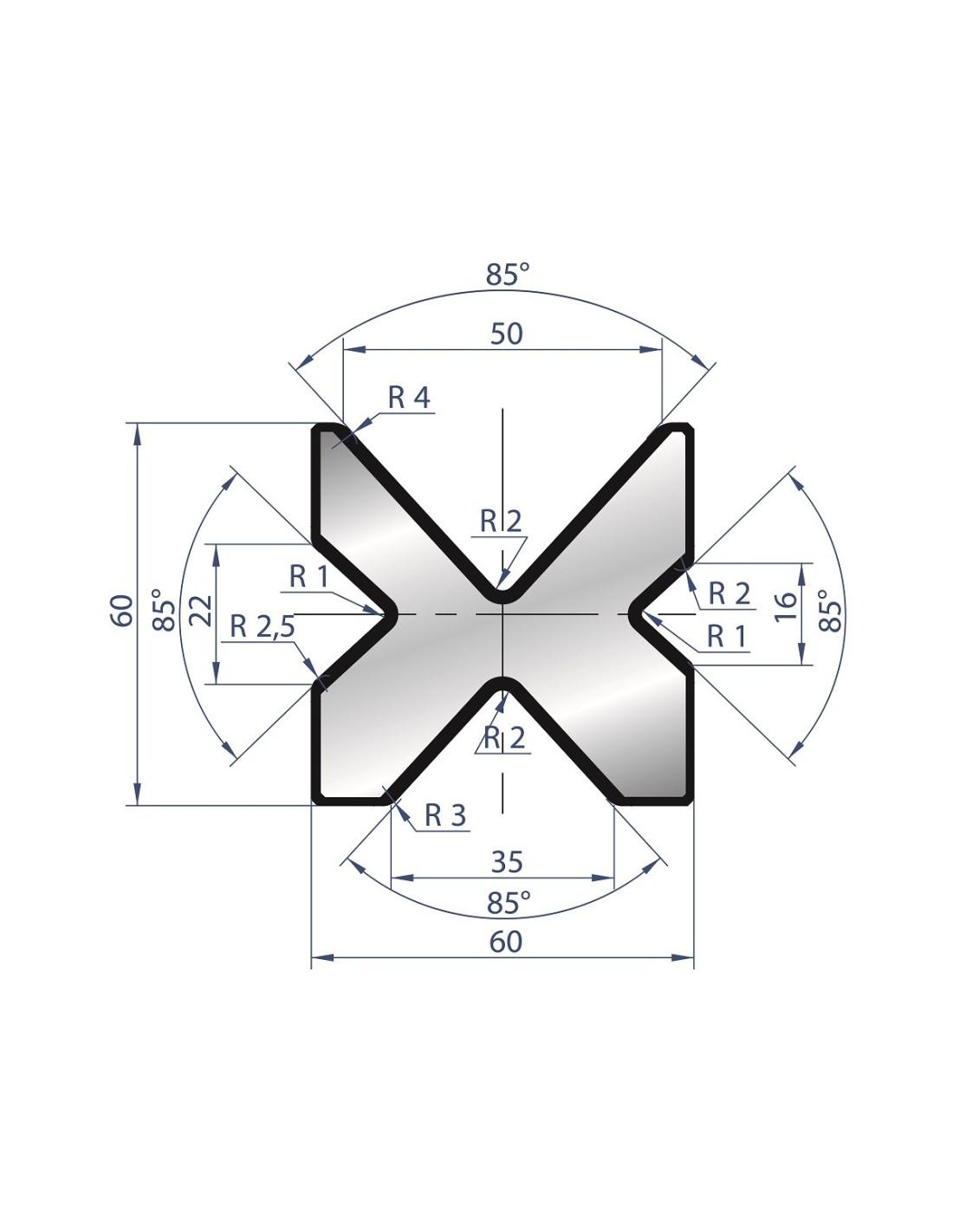

V-Opening Sizes: 16 mm, 22 mm, 35 mm, and 50 mm
Height (H): 60 mm
Material: Hardened C45 steel
Maximum Load Capacity: 80 t/m
