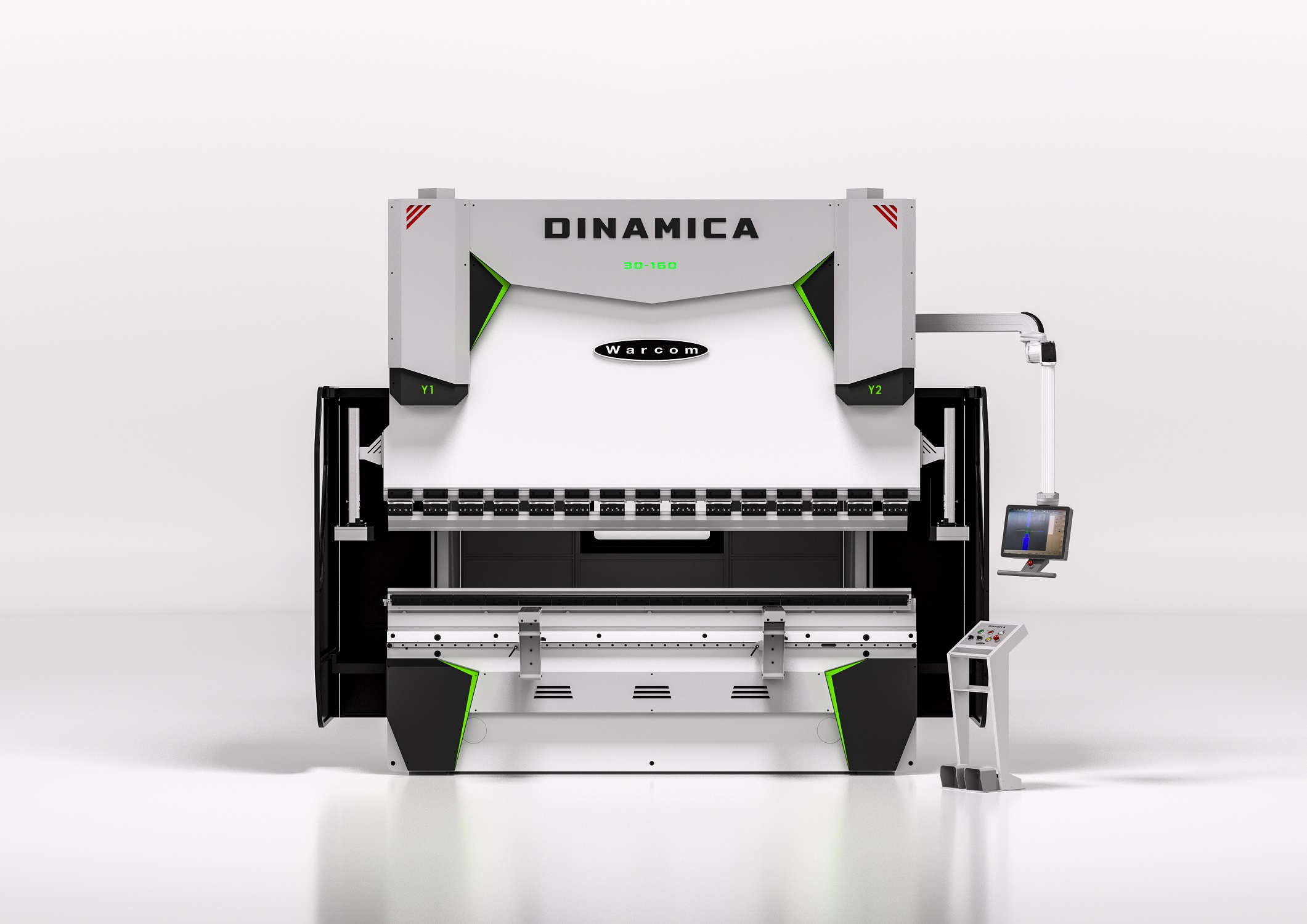

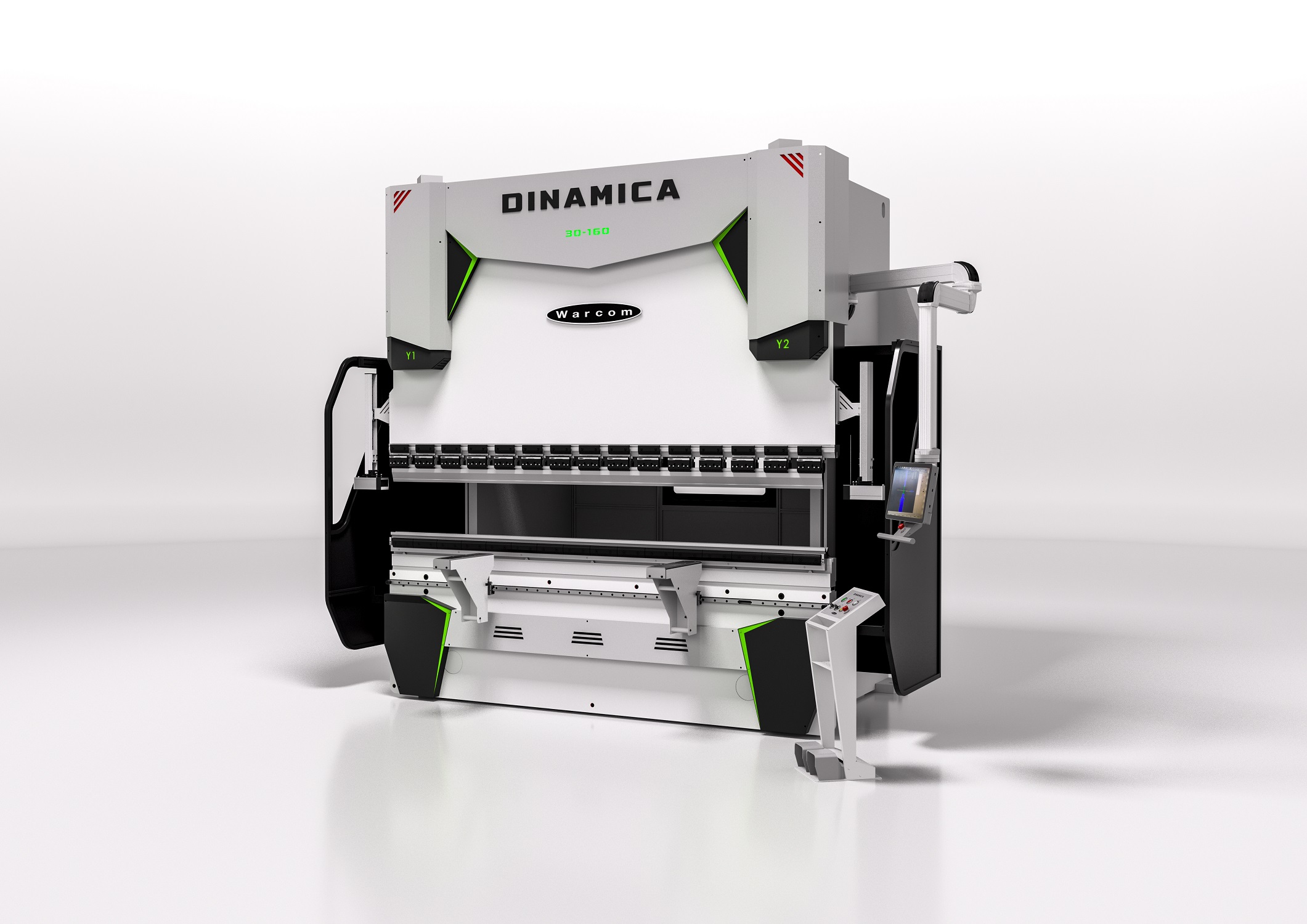

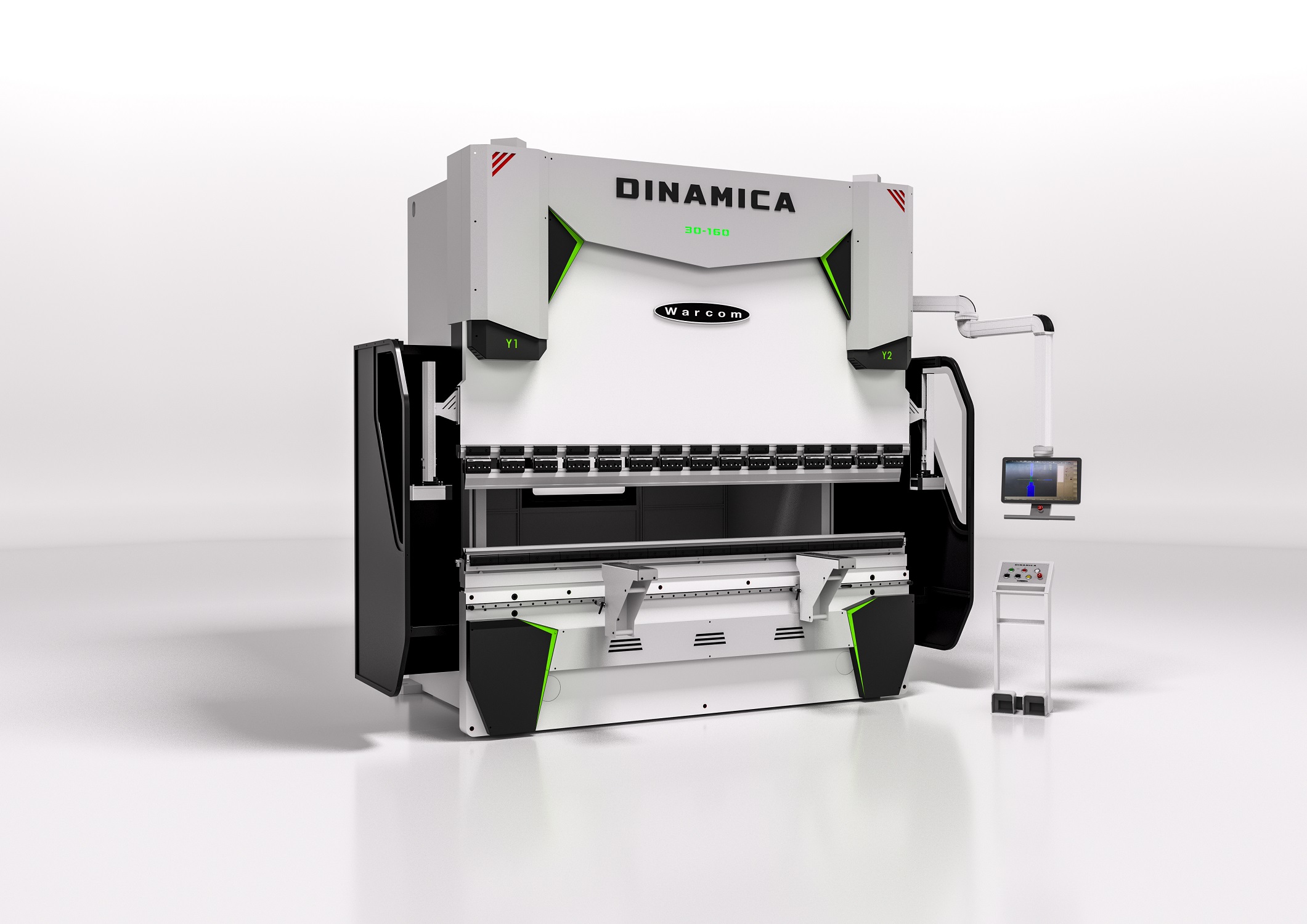

The model DINAMICA ensures exceptional bending accuracy, high energy efficiency, and intuitive control.
Common Characteristics
- Precision, Speed, and Elegance: The DINAMICA press brake is designed for production environments that refuse to compromise between aesthetics and performance, combining Italian design with cutting-edge technology.
- Key Technological Advantages
Intelligent Anti-Deflection System: DCS PLUS
The key to perfect results with the DINAMICA is the patented DCS PLUS (Dynamic Crowning System). It operates in a "closed-loop" to guarantee a uniform bending angle across the entire length of the workpiece:
Sensor Precision: Special sensors in the upper and lower beams detect even the slightest structural deformations under pressure in real-time.
Dynamic Correction: The CNC controller immediately activates independent hydraulic cylinders that compensate for deviations, keeping the beams perfectly parallel.
Autonomous Construction: The "sandwich-type" lower beam is independent of the main frame, allowing the system to react flexibly to material specifics without operator intervention.
Roller Bearing System: The upper beam moves along dual hardened guides with roller bearings, drastically reducing friction, noise, and maintenance requirements while enabling very high operating speeds.
WES (Warcom Energy Saver): An intelligent inverter-driven system that reduces energy consumption by up to 50% and optimizes noise levels by stopping the main motor during standby.
TALENTO Controller: A 21-inch multi-touch interface developed by Warcom, making the programming of complex parts fast and easy, even for less experienced operators.
- High-Tech Backgauges
The precision of a press brake depends largely on its backgauge. DINAMICA offers exceptionally robust and flexible solutions:
High-Rigidity Construction: The backgauges are built on a solid steel structure mounted directly to the machine base, ensuring absolute stability and positioning repeatability.
Model M6 (Standard): A high-performance system with up to 6 controlled axes (X, R, Z1, Z2, X5, X6), providing maximum flexibility for positioning parts with complex geometries. Various configurations are available (models M1, M3, M6, and M6W), supporting from 2 to 6 controllable axes with an X-axis stroke of up to 1000 mm and an R-axis stroke of up to 250 mm.
Precision Components: All movements are executed via high-quality ball screws and linear guides driven by brushless servomotors. This allows for fast and accurate positioning with minimal deviations.
Special Functions: The system allows the use of various types of gauge fingers, which are easily adjustable and provide stable support for the sheet metal throughout the process.
- Optional Equipment
Customize your DINAMICA for maximum automation:
Laser Angle Measurement (DATA-M): Automatic real-time angle correction (accuracy +/- 0.30°).
Sheet Followers: Support arms to assist with handling large and heavy metal sheets.
Hydraulic Clamping: Fast tool changeover (Wila or Promecam systems).
Pneumatic Hemming Table: For precise flattening (hemming) without the need for special tools.
Technical Parameters and Capacity
Working Force and Dimensions: The range includes models with capacities from 60 to 400 tons and bending lengths from 2200 mm to 4200 mm.
Daylight and Stroke: The standard daylight is 600 mm and the cylinder stroke is 400 mm (for models over 100t), allowing for the processing of parts with deep boxes/high flanges.
Throat Depth: The free space in the side frames (throat depth) is 500 mm, providing a wide operational area.
Speed Characteristics: Approach speed up to 200 mm/sec and working speed up to 15 mm/sec (in combination with Iris Plus safety systems), making the DINAMICA one of the fastest machines in its class.
|
Models DINAMICA |
Bending Force (Ton) |
Working Length (mm) |
Distance between uprights (mm) |
Throat Depth (mm) |
Светал отвор (mm) |
Daylight (mm) |
R-axis Stroke (mm) |
Power (kW) |
Speeds (mm/s) [Approach / Bending / Return] |
Weight (kg) |
|
60-25 |
60 |
2700 |
2050 |
300 |
500 |
600 |
150 |
7,5 |
200/10-15/200 |
6500 |
|
60-30 |
60 |
3200 |
2050 |
300 |
500 |
600 |
150 |
7,5 |
200/10-15/200 |
8000 |
|
80-25 |
80 |
2700 |
2050 |
300 |
500 |
600 |
150 |
9,2 |
200/10-15/200 |
10000 |
|
80-30 |
80 |
3200 |
2050 |
300 |
500 |
600 |
150 |
9,2 |
200/10-15/200 |
10500 |
|
100-20 |
100 |
2200 |
1550 |
400 |
600 |
800 |
150 |
11 |
200/10-15/200 |
8800 |
|
100-25 |
100 |
2700 |
2050 |
400 |
600 |
800 |
150 |
11 |
200/10-15/200 |
10500 |
|
100-30 |
100 |
3200 |
2550 |
400 |
600 |
800 |
150 |
11 |
200/10-15/200 |
11200 |
|
100-40 |
100 |
4200 |
3550 |
400 |
600 |
800 |
150 |
11 |
200/10-15/200 |
14000 |
|
130-30 |
130 |
3200 |
2550 |
400 |
600 |
800 |
150 |
15 |
200/10-15/200 |
14000 |
|
130-40 |
130 |
4200 |
3550 |
400 |
600 |
800 |
150 |
15 |
200/10-15/200 |
16500 |
|
160-30 |
160 |
3200 |
2550 |
400 |
600 |
800 |
150 |
15 |
200/10-15/200 |
15000 |
|
160-40 |
160 |
4200 |
3550 |
400 |
600 |
800 |
150 |
15 |
200/10-15/200 |
18000 |
|
200-30 |
200 |
3200 |
2550 |
400 |
600 |
800 |
150 |
18,5 |
200/10-15/200 |
18000 |
|
200-40 |
200 |
4200 |
3550 |
400 |
600 |
800 |
150 |
18,5 |
200/10-15/200 |
21500 |
|
250-30 |
250 |
3200 |
2550 |
400 |
600 |
800 |
150 |
22 |
140/8/140 |
19000 |
|
250-40 |
250 |
4200 |
3550 |
400 |
600 |
800 |
150 |
22 |
140/8/140 |
25700 |
|
320-30 |
320 |
3200 |
2550 |
400 |
600 |
800 |
150 |
30 |
140/8/140 |
22500 |
|
320-40 |
320 |
4200 |
3550 |
400 |
600 |
800 |
150 |
30 |
140/8/140 |
28500 |
|
400-40 |
400 |
4200 |
3550 |
400 |
600 |
800 |
150 |
37,5 |
100/8/100 |
33000 |
