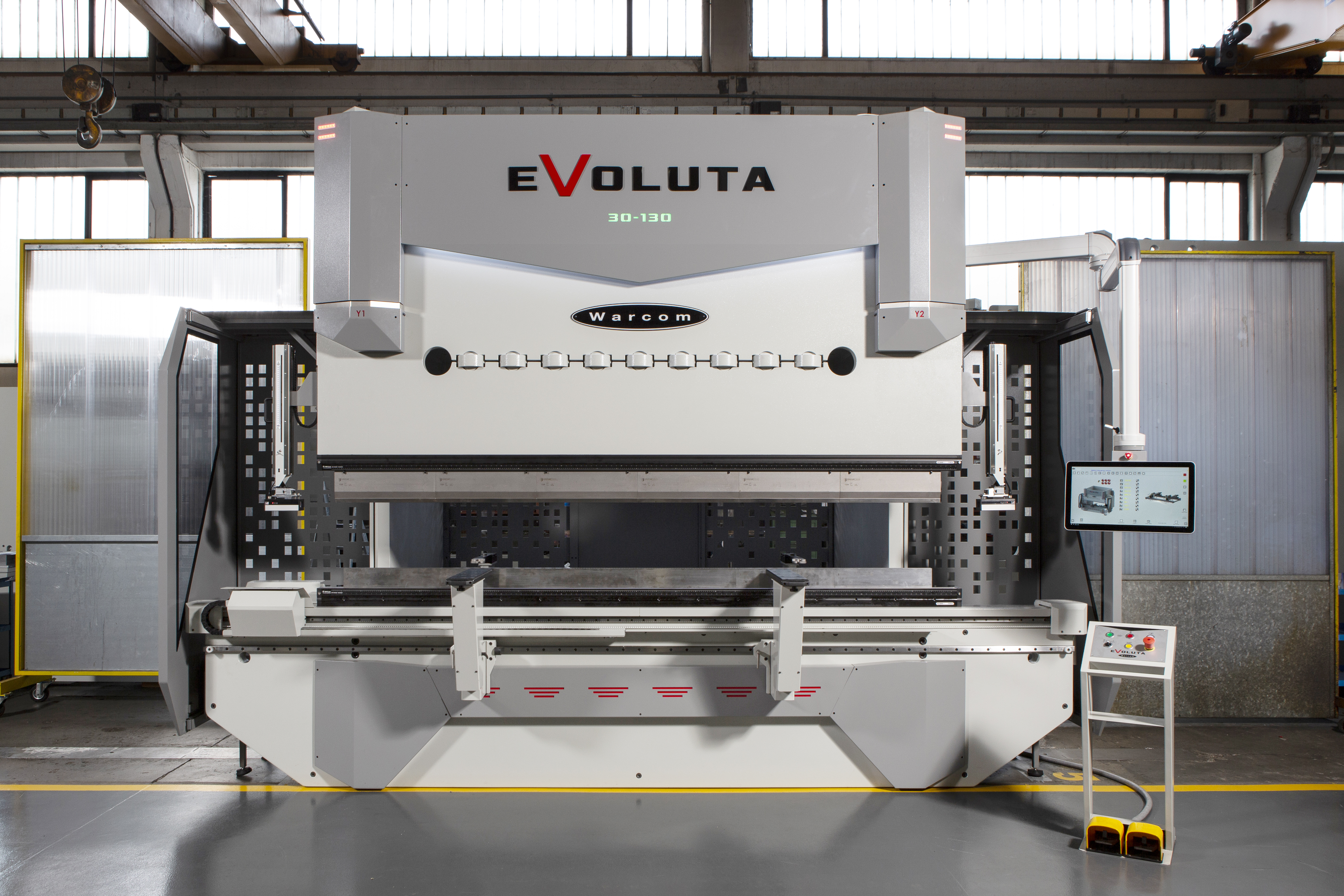

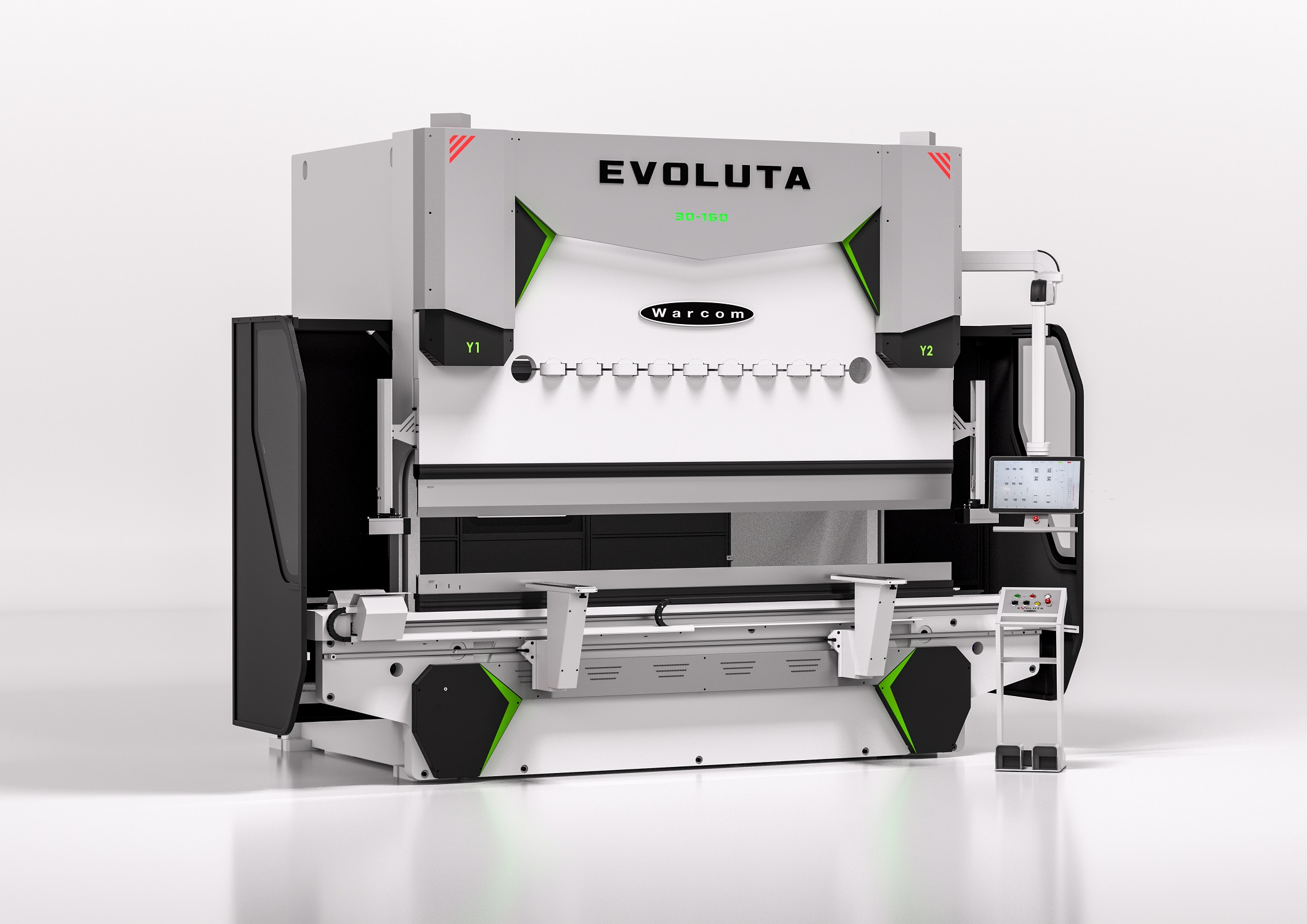

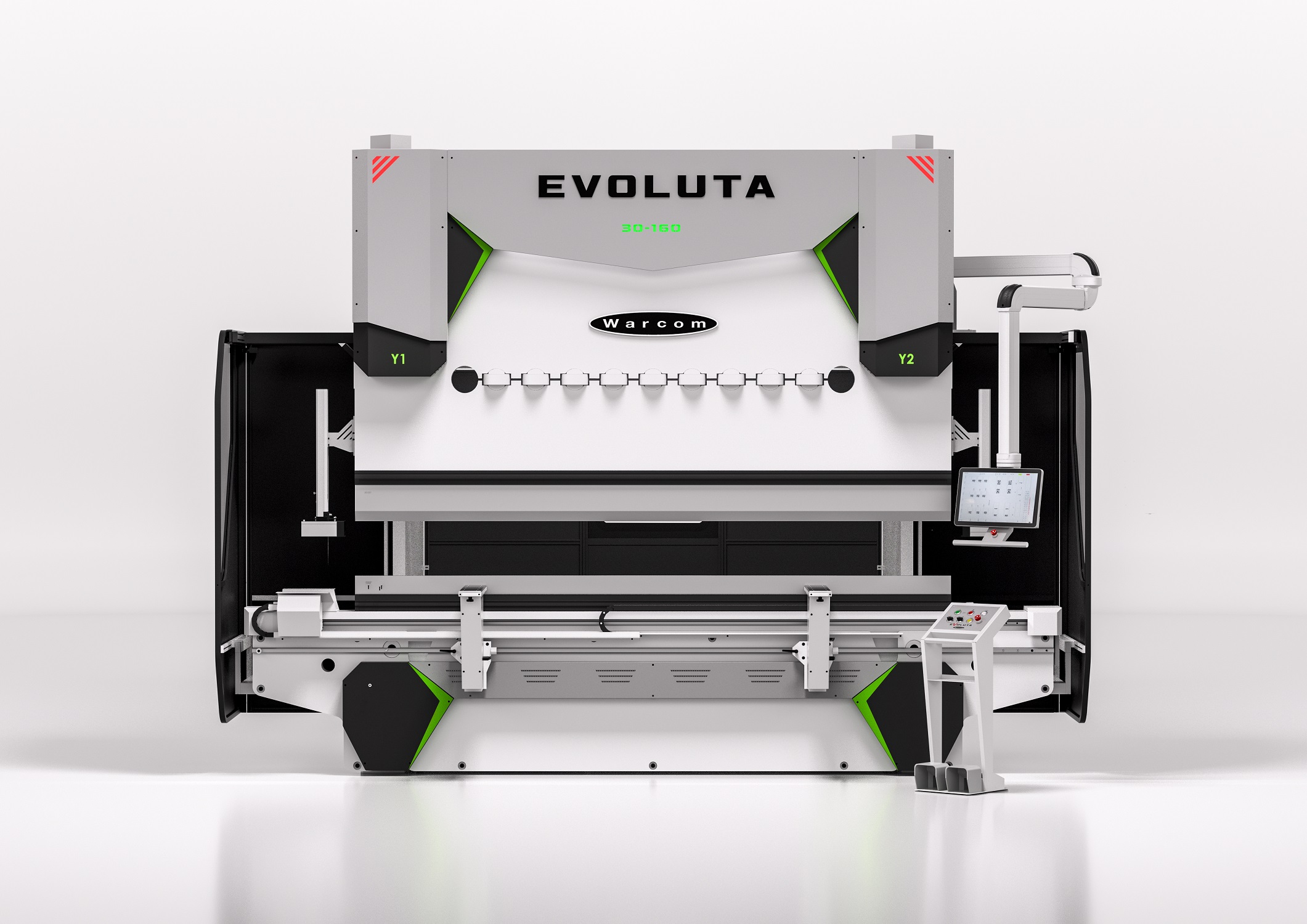

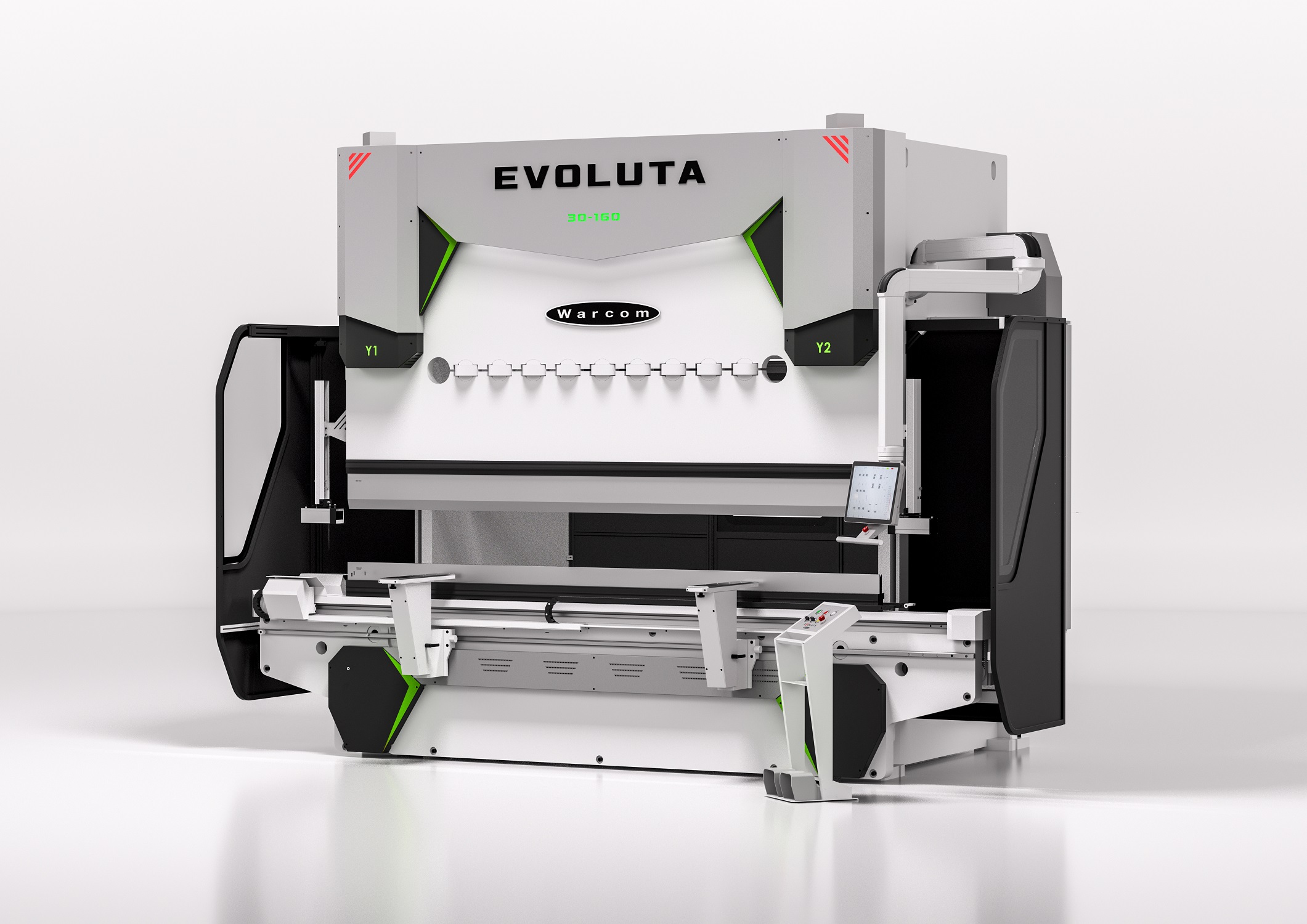

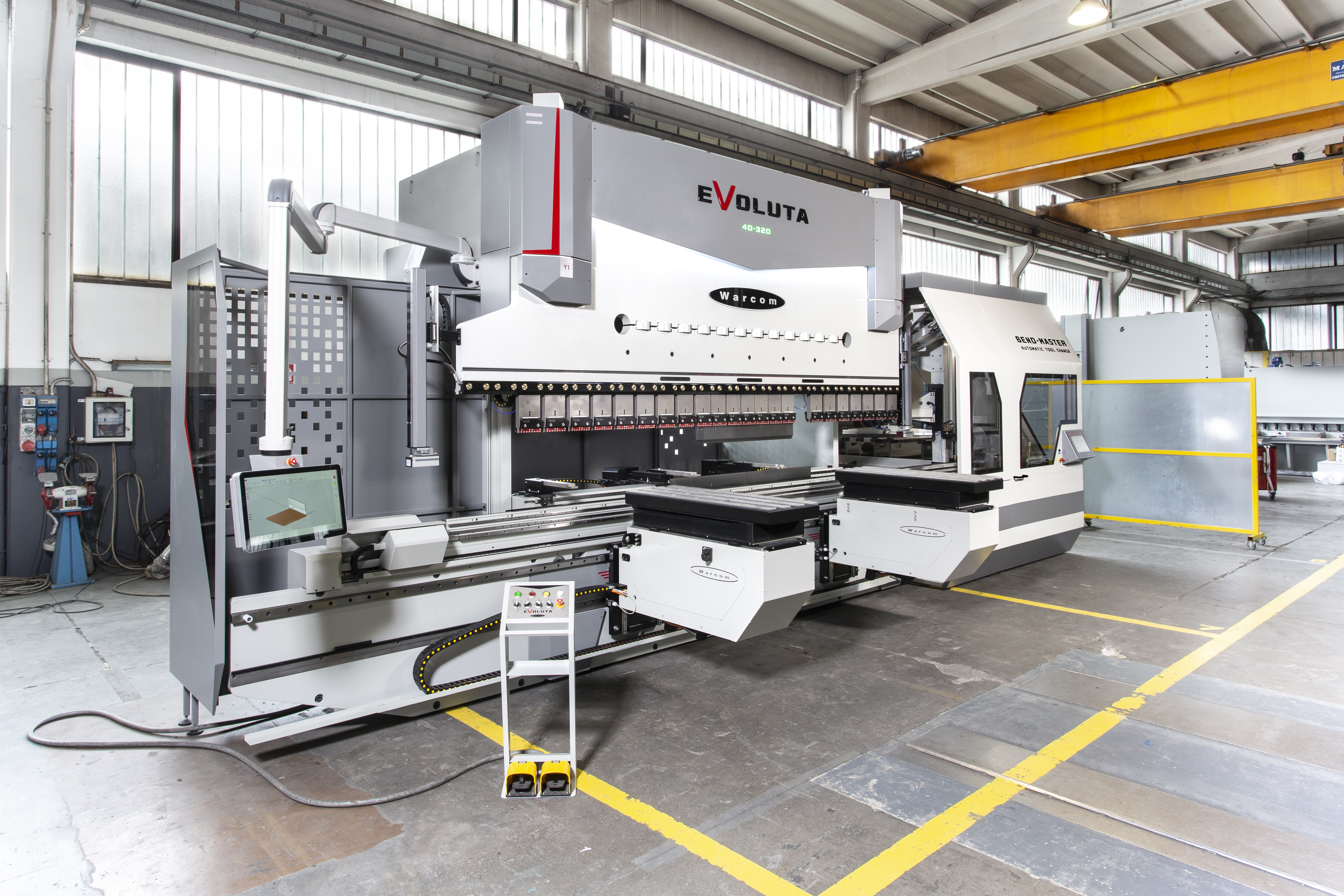

The model EVOLUTA combines modern Italian design with unique technological solutions that guarantee maximum flexibility and quality for every task.
Common Characteristics
- A Revolution in the Bending Process: EVOLUTA is not just a press brake – it is the new benchmark for technological excellence in metalworking, designed to revolutionize the bending process through innovation and precision.
- Key Advantages and Technologies
FCS2 System (Full Compensation System): A revolutionary technology for dual automatic compensation in real-time. Unlike traditional machines, FCS2 utilizes hydraulic cylinders in both the upper beam and the lower table to detect and correct even the smallest flexions during operation. Sensors monitor deformations in the beam, the table, and the side frames, ensuring perfect flatness and angle accuracy across any material.
High-Performance Hydraulics: Equipped with a premium hydraulic system, EVOLUTA achieves industry-leading speeds and precision.
Roller Bearing Sliding System: The vertical movement of the beam is carried out via dual hardened and ground guides with roller bearings. This minimizes friction and noise, allowing for extremely high approach and return speeds for superior productivity.
WES (Warcom Energy Saver): An intelligent inverter-driven "Start & Stop" system that reduces energy consumption by up to 50%. It lowers noise to a minimum, extends the life of the pump and oil, and stabilizes machine performance.
- Precision Backgauges
Warcom’s backgauges are engineered to guarantee accuracy, reliability, and safety throughout the entire bending process. The use of hardened and ground racks, along with linear guides and ball screws, ensures high-precision positioning at optimal speeds with low noise.
The system is protected from mechanical damage via integrated anti-collision technology. For handling thinner materials, retractable pneumatic supports are available to hold the sheet metal and prevent sagging during positioning. Various configurations are available (models M1, M3, M6, and M6W), supporting from 2 to 6 controllable axes (X1, X2, R1, R2, Z1, Z2) with an X-axis stroke of up to 1000 mm and an R-axis stroke of up to 250 mm.
- Intelligent Control and Safety
TALENTO Interface: All machines are equipped with a 21" touch-screen controller featuring an interface developed by Warcom, which is simple and intuitive for the operator.
Angle Measurement Systems: Technologies such as DATA-M and BCS measure the actual angle in real-time, guaranteeing precision from the very first part and automatically compensating for material springback.
Security: Featuring market-leading solutions from LazerSafe, which protect the operator without compromising high operating speeds (up to 15 mm/sec).
- Optional Equipment
Customize your EVOLUTA for maximum automation:
Laser Measurement (DATA-M): Automatic real-time angle correction (accuracy +/- 0.30°).
Sheet Followers: Support arms to assist with handling large and heavy metal sheets.
Hydraulic Clamping: Fast tool changeover (Wila or Promecam systems).
Pneumatic Hemming Table: For precise flattening (hemming) without the need for special tools.
- Main Technical Parameters
The machine offers increased workspace for processing complex parts, including a standard beam stroke of 400 mm and a daylight of 600 mm. The distance between uprights is also larger than standard – 2850 mm for 3.0 m models and 3850 mm for 4.0 m models.
|
Model (EVOLUTA) |
Bending Force (Ton) |
Working Length (mm) |
Distance between uprights (mm) |
X-axis Stroke (mm) |
R-axis Stroke (mm) |
Power (kW) |
Speeds (mm/s) [Approach / Bending / Return] |
Weight (kg) |
|
60-30 |
60 |
3200 |
2800 |
600 |
150 |
9,2 |
220/10-20/200 |
10000 |
|
80-30 |
80 |
3200 |
2800 |
600 |
150 |
11 |
200/10-20/200 |
13000 |
|
100-30 |
100 |
3200 |
2800 |
800 |
250 |
15 |
200/10-20/200 |
14000 |
|
130-30 |
130 |
3200 |
2800 |
800 |
250 |
18,5 |
200/10-20/200 |
16000 |
|
130-40 |
130 |
4200 |
3800 |
800 |
250 |
18,5 |
200/10-20/200 |
18200 |
|
160-30 |
160 |
3200 |
2800 |
800 |
250 |
18,5 |
200/10-20/200 |
18000 |
|
160-40 |
160 |
4200 |
3800 |
800 |
250 |
18,5 |
200/10-20/200 |
20000 |
|
200-30 |
200 |
3200 |
2800 |
800 |
250 |
22 |
200/10-20/200 |
20500 |
|
200-40 |
200 |
4200 |
3800 |
800 |
250 |
22 |
200/10-20/200 |
23800 |
|
250-30 |
250 |
3200 |
2700 |
800 |
250 |
30 |
140/10/140 |
22500 |
|
250-40 |
250 |
4200 |
3700 |
800 |
250 |
30 |
140/10/140 |
27000 |
|
320-30 |
320 |
3200 |
2700 |
800 |
250 |
37,5 |
140/8/140 |
24800 |
|
320-40 |
320 |
4200 |
3700 |
800 |
250 |
37,5 |
140/8/140 |
29700 |
|
400-40 |
400 |
4200 |
3600 |
800 |
250 |
45 |
100/8/100 |
36000 |
