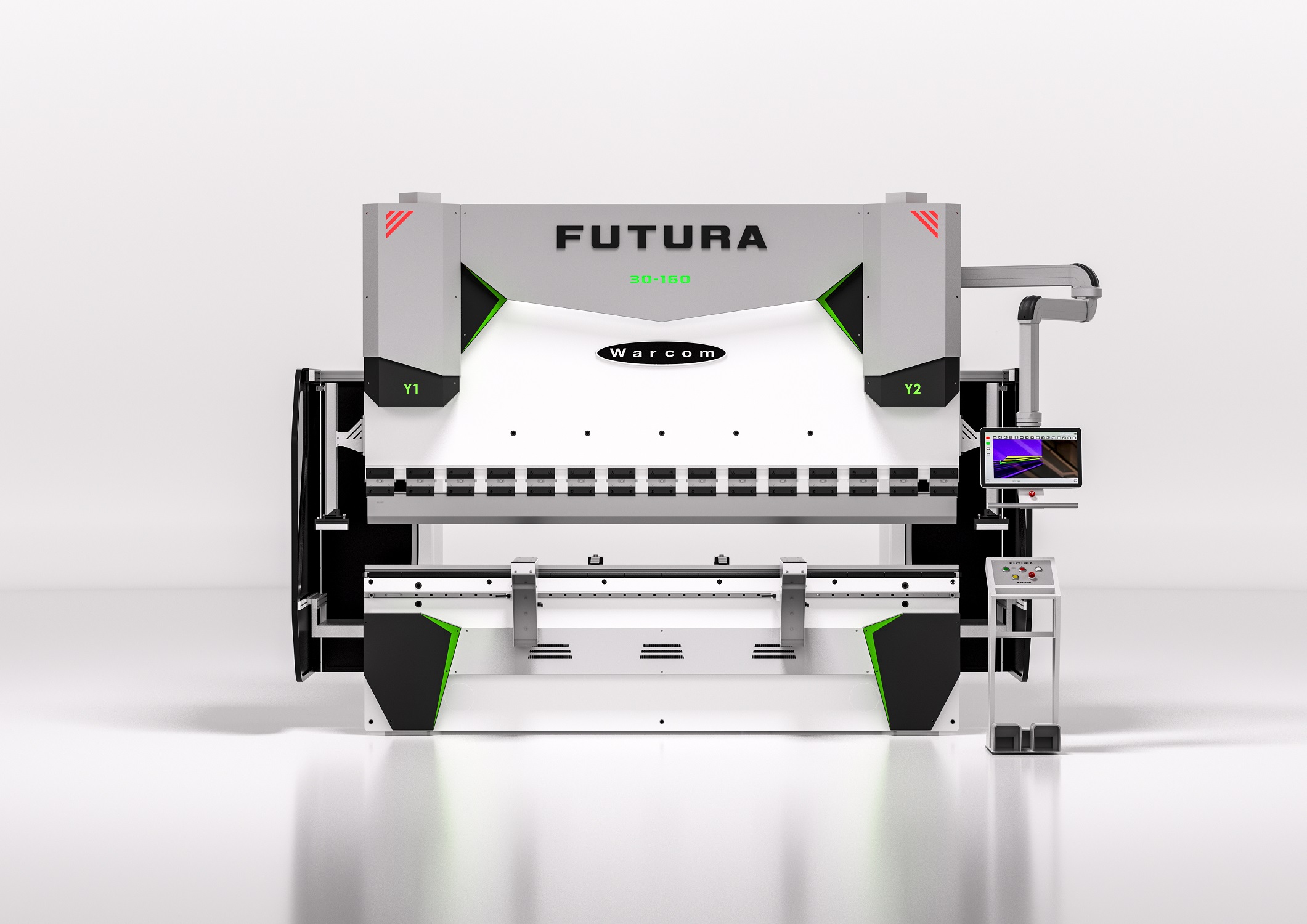

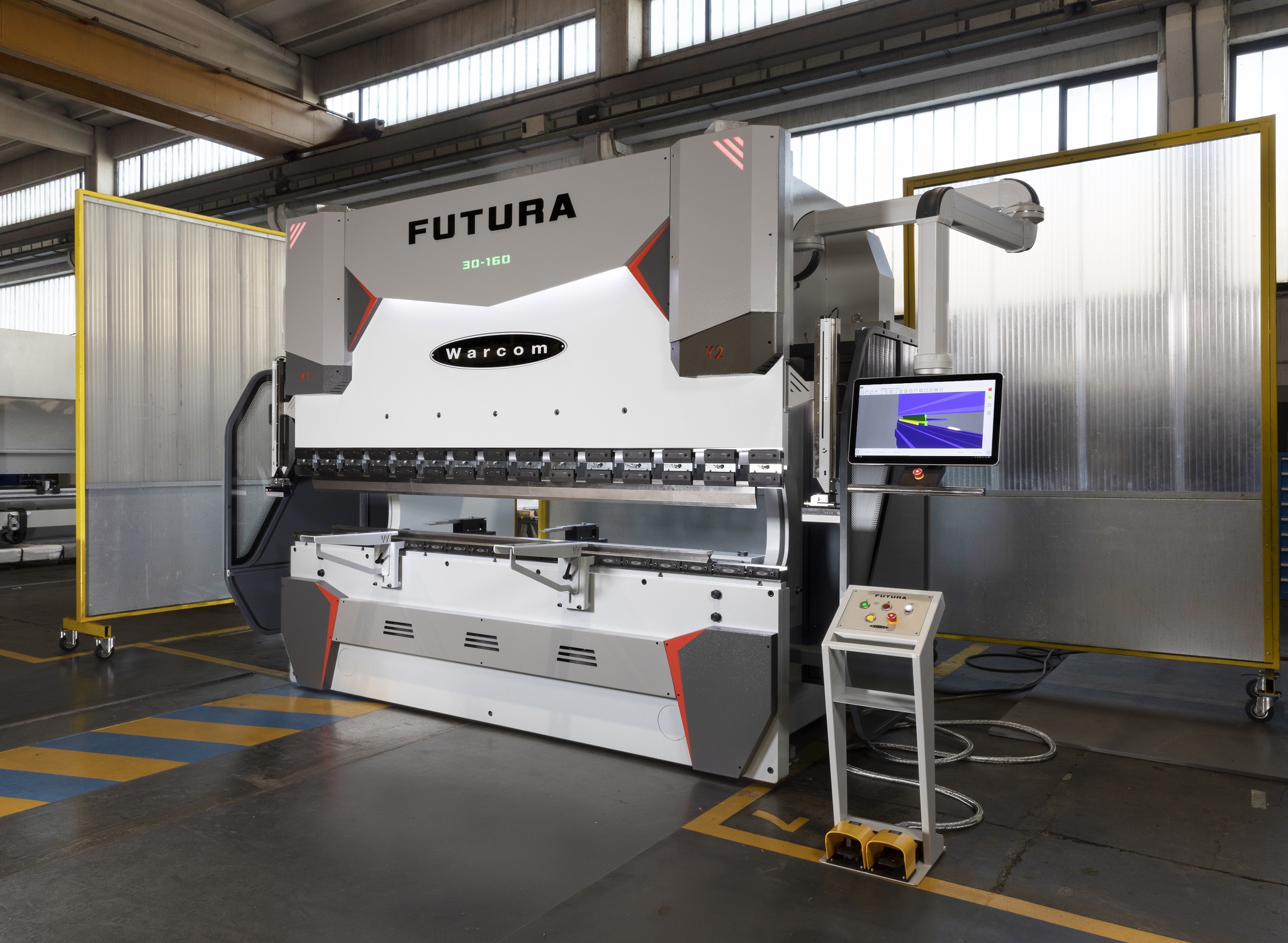

Hydraulic Press Brake Warcom FUTURA

Reliability, Power, and Precision

FUTURA is Warcom's flagship model, the result of over 20 years of experience and innovation in the bending sector. Designed as the company’s "workhorse," this machine combines exceptional reliability with an excellent quality-price ratio.

• Key Advantages of the Model

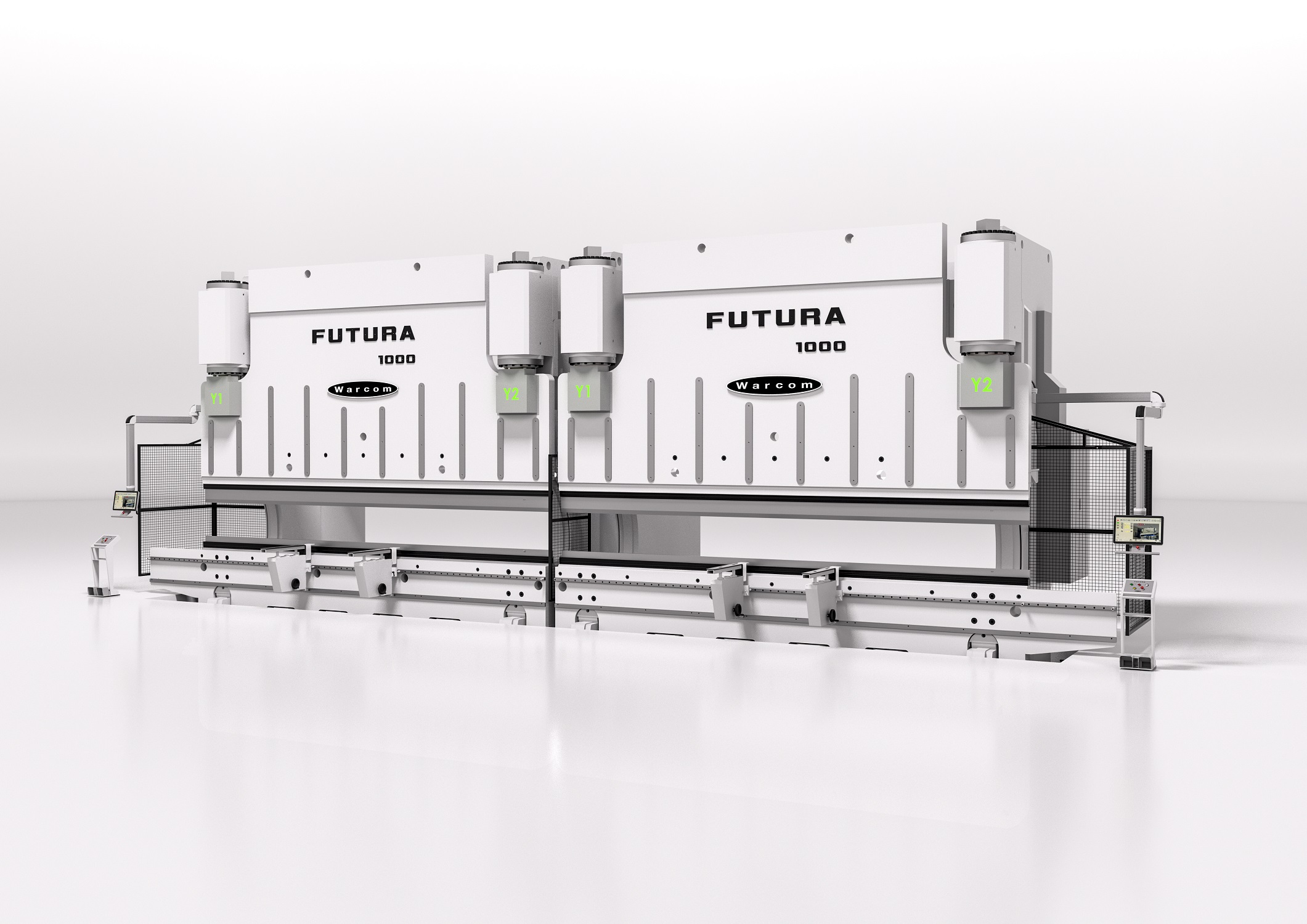

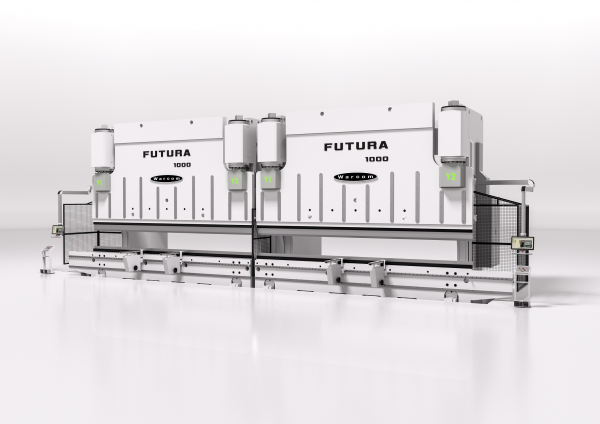

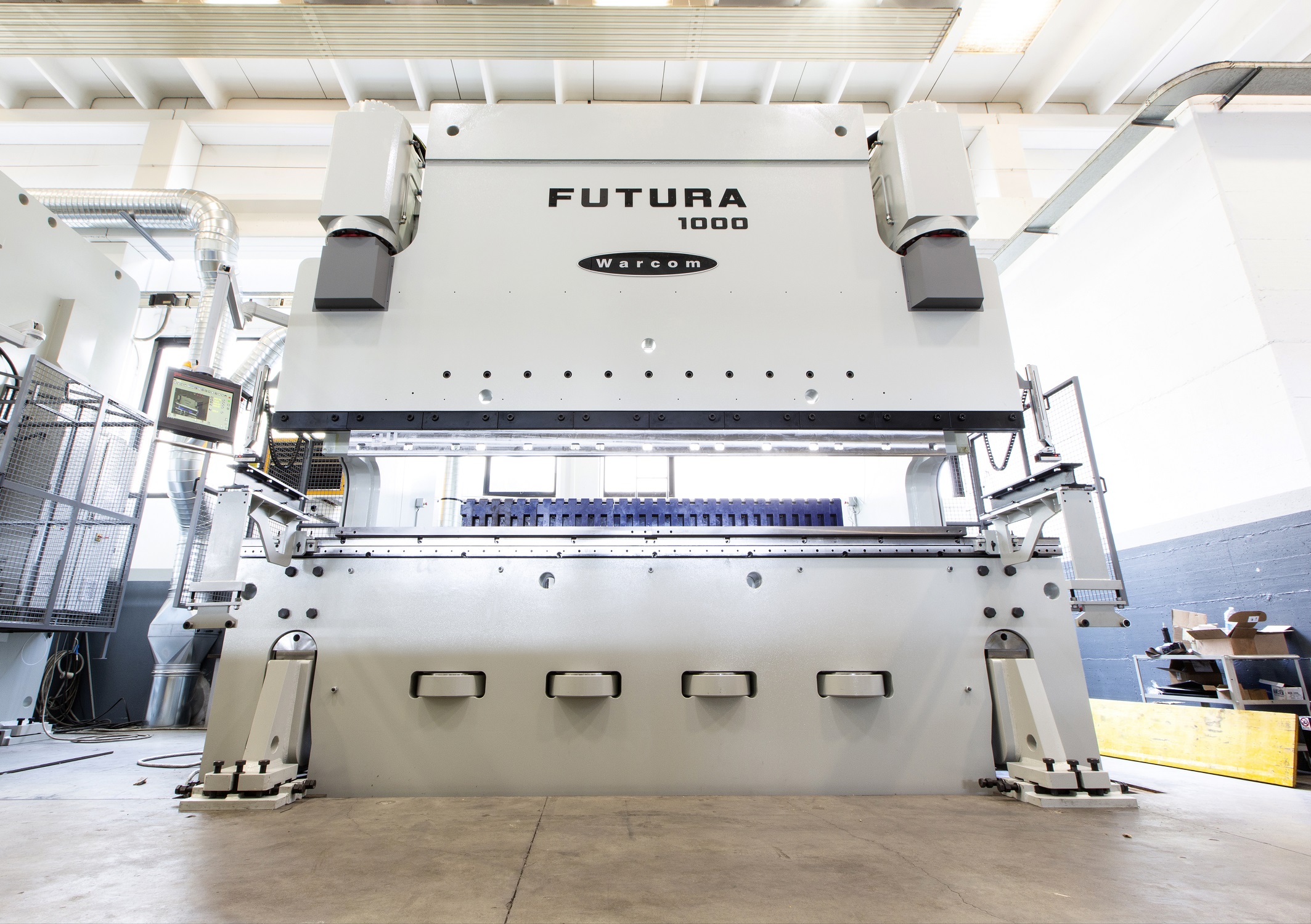

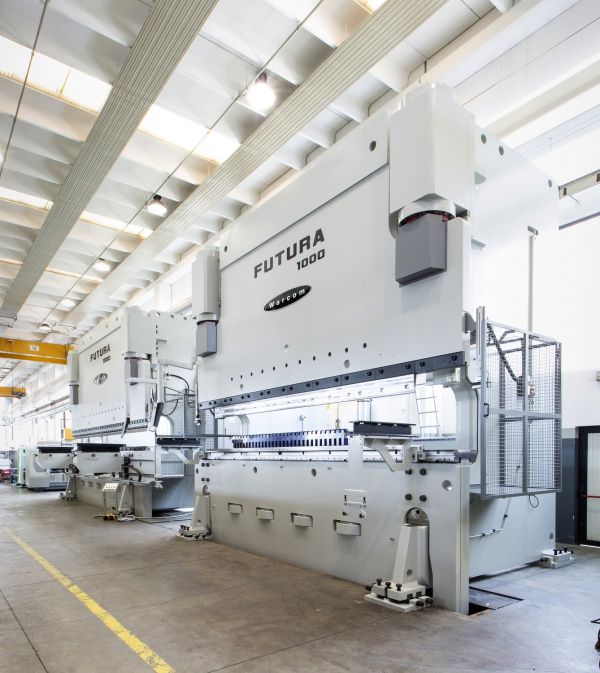

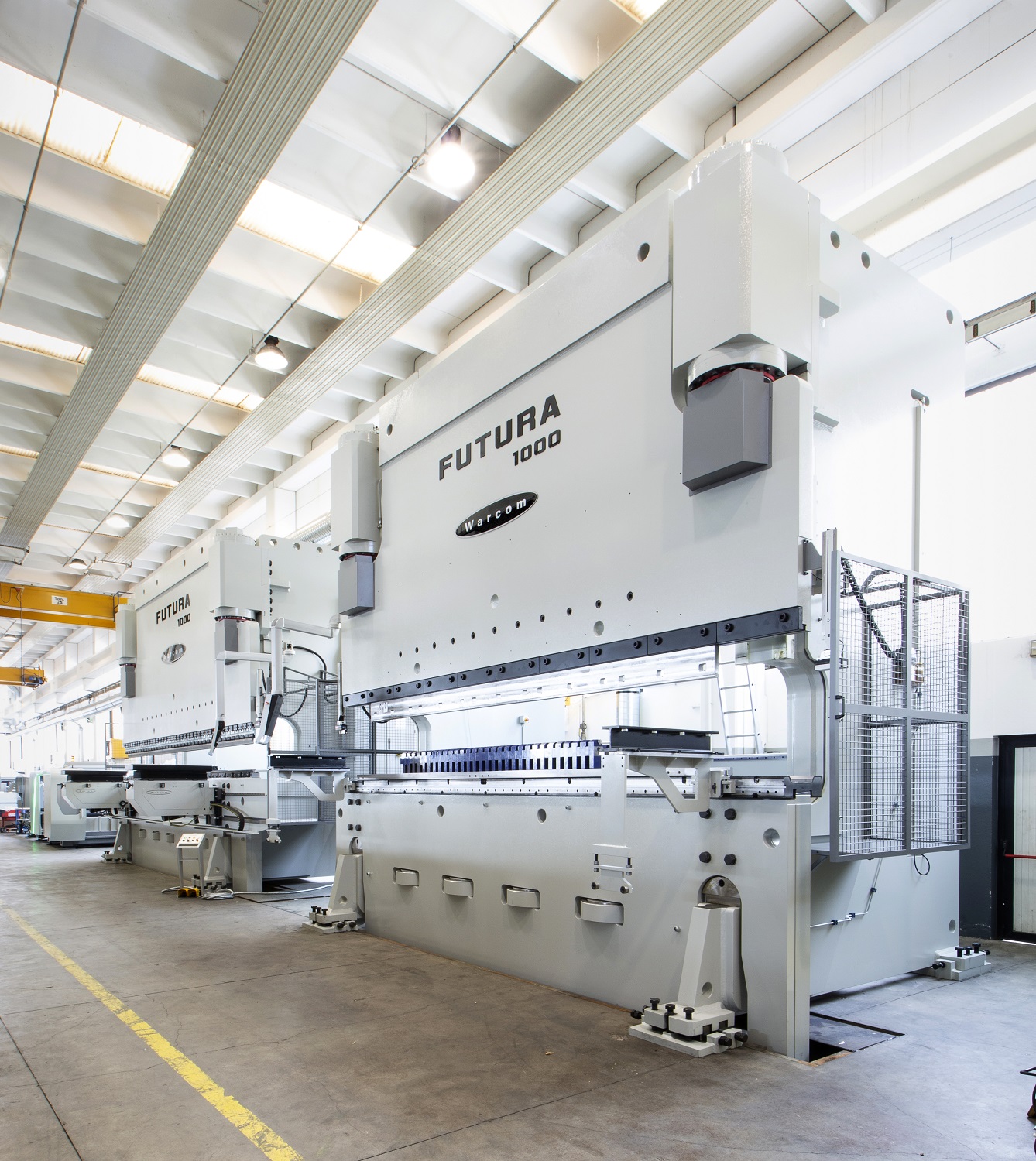

  Versatility and Power: The series covers a wide range of models – from compact machines with a 40-ton capacity to industrial giants of 1500 tons and lengths up to 10 meters. Tandem configurations are also available for even larger projects.
  Robust Construction: The frame is monolithic for sizes that allow standard transport. Larger models utilize a precisely assembled and bolted structure, ensuring stability under extreme loads.
  Intelligent Control: Machines are equipped with the TALENTO 21" CNC controller, featuring an intuitive graphical interface developed by Warcom to simplify the operator's work and reduce programming time.
• Backgauge System
  Model M3 (Standard): The M3 model is the standard equipment for the FUTURA series and is mounted directly onto the machine frames (side uprights).
  Characteristics: It is a straightforward and reliable device, available in various configurations to meet specific customer needs.
  Technical Parameters: * X-axis Stroke: 600 mm (for standard models from 40 to 1000 tons).
  R-axis Stroke: 150 mm (for lighter models up to 160 tons), reaching up to 200–250 mm for heavier models.
  Integration: Controlled via the TALENTO 21" software interface, allowing for easy and intuitive adjustments.
  Additional Options: The machine can be equipped with other specialized positioning components, such as motorized photocells or laser systems for bending line tracking.
  Note: Warcom also offers other series (M6, M6W with X1-X2-R1-R2-Z1-Z2 axes) with different stroke capacities and axis counts, but the M3 is specifically optimized for the FUTURA series.
• Precision Anti-Deflection System (Crowning)
  Intelligent DCS PLUS System
  The key to perfect results with the FUTURA is the patented DCS PLUS (Dynamic Crowning System). It operates in a "closed-loop" to guarantee a uniform bending angle across the entire length of the workpiece:
  Sensor Precision: Special sensors in the upper and lower beams detect even the slightest structural deformations under pressure in real-time.
  Dynamic Correction: The CNC controller immediately activates independent hydraulic cylinders that compensate for deviations, keeping the beams perfectly parallel.
  Autonomous Construction: The "sandwich-type" lower beam is independent of the main frame, allowing the system to react flexibly to material specifics without operator intervention.
• Optional Equipment
  Customize your FUTURA for maximum automation:
  Laser Angle Measurement (DATA-M): Automatic real-time angle correction (accuracy +/- 0.30°).
  Sheet Followers: Support arms to assist with handling large and heavy metal sheets.
  Hydraulic Clamping: Fast tool changeover (Wila or Promecam systems).
  Pneumatic Hemming Table: For precise flattening (hemming) without the need for special tools.
