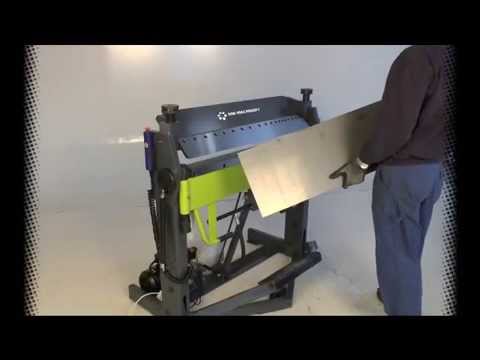

Semi hydraulic operated folder HS-2A-3SH SUPERFLEX ERGO
Common Characteristics
The new range of HS SUPERFLEX ERGO, folders are actually manual machines, which have been up-rated to offer a very efficient motorised option via a newly developed and patented, folding beam support cylinder system.
These models have the unique feature, that they can be operated either manually when folding thin sheet, or with the special developed hydraulic system when folding heavier gauge material.
The ERGO range of machines have been ergonomically designed, with the operator in mind.
All models are very competitively priced, and provide an excellent cost effective alternative to either, manual or motorised folding machines.
Technical Data
| Parameter | Value |
|---|
| Voltage | 1x230V- 50 Hz
V |
| Length | 1348
mm |
| Width | 850
mm |
| Height | 1250
mm |
| Net weight | 435
kg |
| Capacity | 1020 x 2.5
mm |
| Sheet thickness steel | 2.5
mm |
| Bending angle | 100/120°
|
| Max. Opening | 45
mm |
