Eurostamp 1281 Punch is a high-quality upper tool for press brake machines, designed for precise sheet metal bending operations. Manufactured according to the European standard (Promecam / European Style), it is suitable for applications requiring high levels of bending accuracy and repeatability. The tool is made from hardened C45 steel, providing excellent wear resistance and a long service life. The maximum permissible load capacity is 100 t/m.
Common Characteristics
Eurostamp 1281
Eurostamp 1281 Punch
The Eurostamp 1281 Punch is a high-quality upper tool for press brake machines, designed for precise sheet metal bending operations. Manufactured according to the European standard (Promecam / European Style), it is suitable for production environments with high requirements for accuracy and repeatability. The tool is made from hardened C45 steel, providing excellent wear resistance and a long service life. The maximum permissible load capacity is 100 t/m.
Advantages
High bending accuracy.
Hardened working surface for minimal wear.
Excellent repeatability in serial production.
Suitable for processing various types of sheet steel, stainless steel, and aluminium.
Compatible with press brakes using the European tooling system (Promecam).
Applications
The Eurostamp 1281 Punch is designed for air bending and standard sheet metal forming operations in mechanical engineering, metal fabrication, electrical enclosure manufacturing, and other sheet metal processing applications.

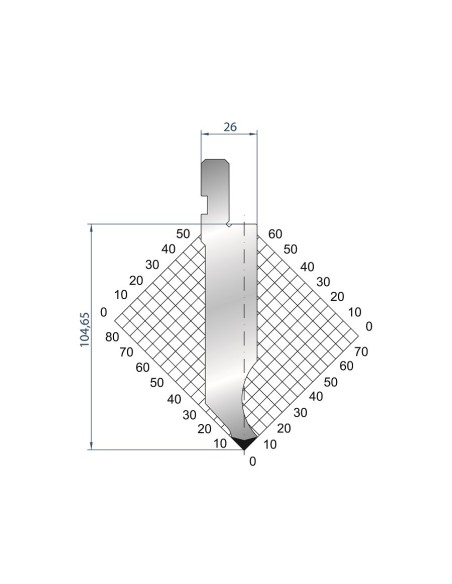

Technical Specifications
Manufacturer: Eurostamp
Model: 1281
Type: Upper Punch

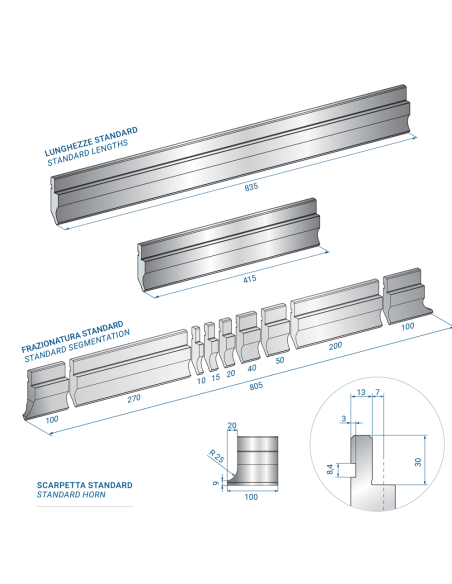

Available Lengths: 415 mm, 805 mm (sectional), 835 mm
Angle: 85°
Tip Radius: 0.8 mm
Height (H): 104.65 mm
Material: Hardened C45 Steel
Maximum Load Capacity: 100 t/m
Standard: Promecam / European Style
