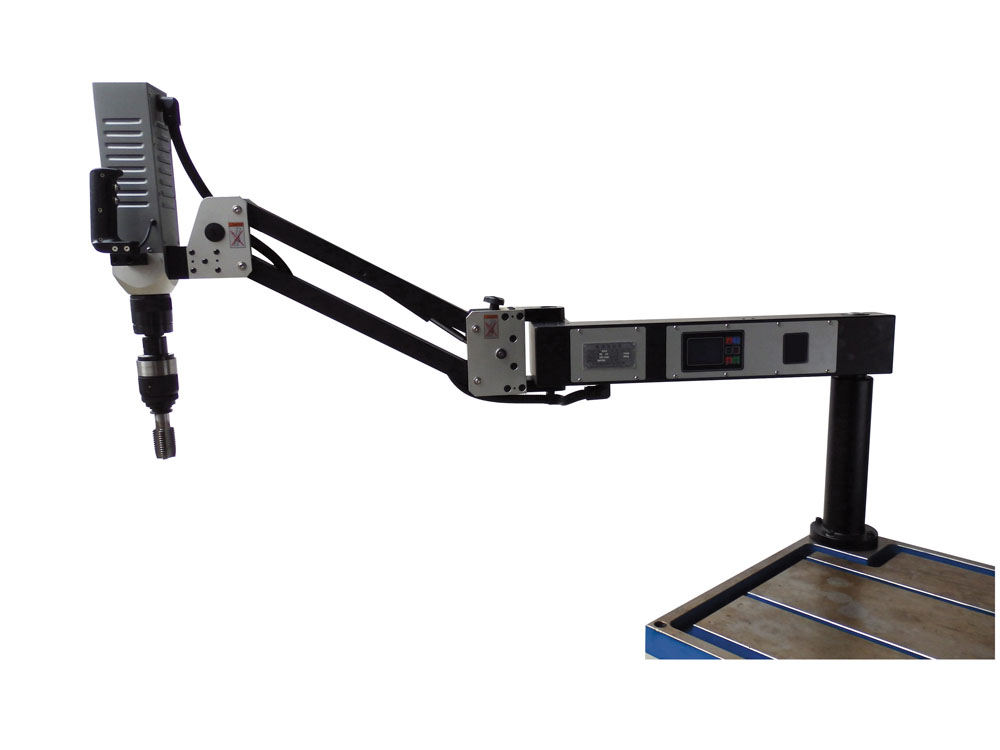

Electrical THREAD-TAPPING MACHINES Dumeta D-BD
Common Characteristics
Working with the Dumeta D-BD electric thread-tapping machine guarantees ergonomic working conditions and saves a lot of time. Saving time means saving money.These electric thread tapping machines are easy to install and to operate; with these machines you get high productivity and low labour intensity.With the D-BD you can rapidly adjust the positioning and there is a large scale of working area.This machine features a quick-change collet and is equipped with an overload clutch.The electric thread tapping machine operates in both manual and automatic mode and features adjustable rotation speed.This electric thread-tapping machine comes with a bright display, which renders a number of technical functions such as: adjustable rotation speed, adjustable depth, various thread sizes, and manual or automatic operation
Technical Data
| Parameter | Value |
|---|
| Tapping capacity | M3-M12
|
| Speed | 375
Rpm |
| Adjustable angle | 0-90
degrees |
| Motor power | 700
W |
| Max. motor torque | 28
N |
| Working range | 180-1000
mm |
| Tapping collets | 7
pcs |
| Weight | 30
kg |
