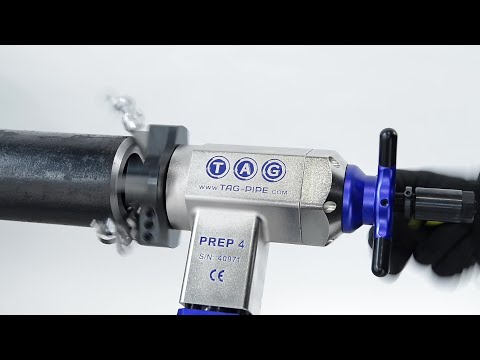

Bevelling machine TAG PREP 4
Common Characteristics
The machine TAG PIPE PREP 4 is available with electric and pneumatic drive or battery. A 4 jaw tool holder (chuck) allows use of up to 4 insert or form tools to enable bevelling of heavy wall pipe & tube, simultaneous external, internal and facing of tubes can be performed with ease for accure repatitive work.
Technical Data
| Parameter | Value |
|---|
| Locking tube range | 23-112
mm |
| Recommended working range | 1-4
inch |
| Idle speed | 5-82
rpm |
| Torgue | 19.7/ 193+
kgm/nm |
| Length of axial feed | 40.5
mm |
| Max acoustic radiation | 75
dB |
| Max operating temperature | 55
C° |
| Weight | 10.4
kg |
| Motor power | 1300
W |
| Voltage | 220
V |
| Frequency | 50-60
Hz |
