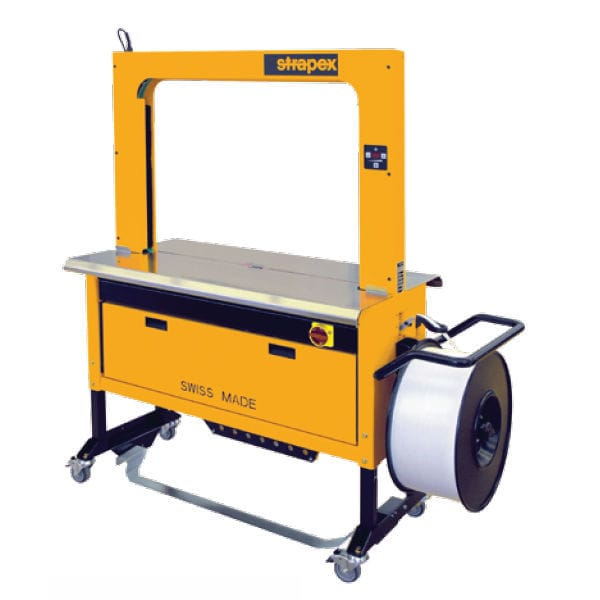

High-tech semiautomatic machine for packing of large and small packages and cartons with polypropylene (PP) strap.
Common Characteristics
The machine can also be equipped with a second pedal so that two people can work simultaneously.
Arch dimensions ( W x H )
SMG20:
650 x 500 mm
850 х 650 mm
850 x 850 mm
1250 x 500 mm
1650 x 500 mm
SMG25:
650 x 500 mm
850 х 650 mm
850 x 850 mm
850 x 1250 mm
1250 x 500 mm
1250 x 850 mm
1250 x 1550 mm
1650 x 500 mm
1650 x 850 mm
1850 x 500 mm
2250 x 500 mm
Advantages:
*up to 70 cycles per minute
*touch panel: Simple and intuitive operation
*modern technology, few moving parts
*constant strap tension for different products
*simple strap change
*user-friendly: strap tension adjustable via push button
*Simple strap coil change: minimum downtime time when changing the coil thanks to automatic threading
*optimum accessibility and tool-free maintenance
*rollers on the desktop for easier passage of the package through the machine
The machine is also available in stainless steel INOX version to meet the high requirements in the food industry.
Technical Data
| Parameter | Value |
|---|
| Type strap | PP
|
| Strap width | SMG 20: PP - 5 mm; SMG 25: PP 9 - 12
mm |
| Strap coil diameter, inside / ouside | 200/430
mm |
| Dispenser position | Странично/Side Mounted
|
| Strap tension, up to | 300
N |
| Working height | 670 - 930
mm |
| Machine weight from | 170
kg |
| Cycles per minute up to without conveyor | 70
|
| Electrical connection | 115/230 V; 50/60 Hz
|
| Room temperature | 10-40
°С |
| Relative humidity | 10-65
% |
| Min. Packaged goods ( W x H ) | 100 х 20
mm |
| Max. weight of packaged goods | 35
kg |
