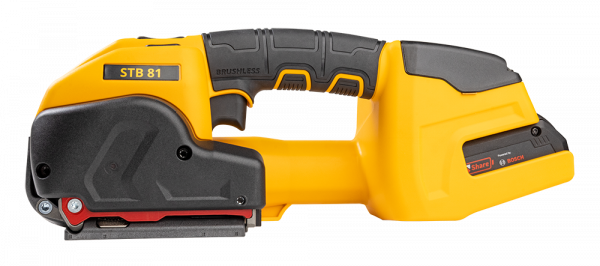

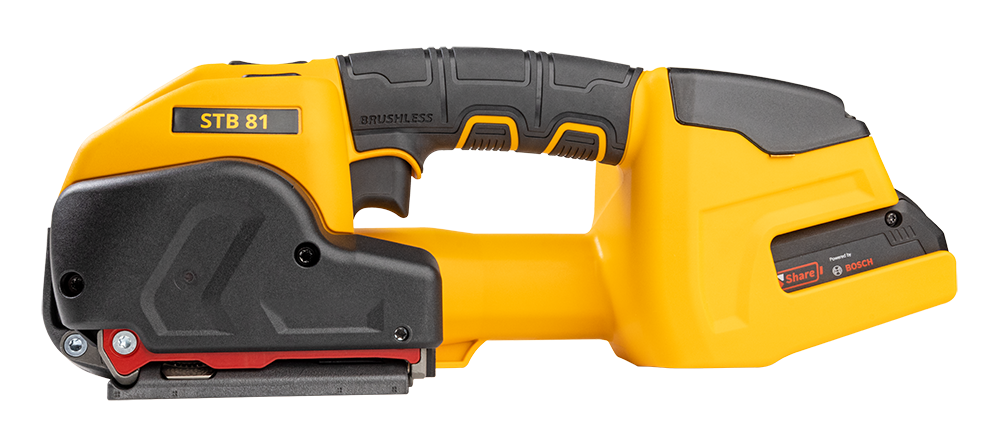

Friction welding tool Strapex STB 81

Hand tool for polypropylene /PP/ and polyester /PET/ strapping with battery, strap width 9 - 13 mm.
Common Characteristics
The next generation battery Hand Tool for plastic strapping, the STB with a new Easy Trigger Technology, can take your operations to a higher level. The advanced technologies and ergonomic design of the STB Hand Tools fit into your advanced packaging process.
Benefits and Features
Simplified strapping process
Easy Trigger Technology activates the strapping process with a simple finger pull to insert and remove the strap. This simple process and optimized tool balance reduces operator fatigue and makes the operation easier, regardless of the strapping application.
Increased productivity
Increased efficiency due to the unique, ergonomic handling and advanced performance of the latest AMPShare® battery
generation from BOSCH®.
Enhanced reliability
High-quality materials, including wear parts, meet the highest quality standards and are made of heat-treated tool steel or powder metallurgical material.
Highlights
Advanced ergonomics
For increased efficiency and usability
Intuitive and simple user interface
Balanced design for easy operation
Quick to learn and use
High performance
For enhanced power and productivity
Maximum control through fine adjustment of the tension force, tension speed and welding
Optical control element for correct strap insertion
Latest AMPShare® battery generation
Reliable quality
For more consistent operation
High quality components
DEKRA-tested and certified
Swiss made
Technical Data
ParameterValue
Strap tension400–1200 N (Standard) 150-750 N (Soft)  N
Width of the strap9-13  mm
Thickness of the strap0.4 – 0.8  mm
Adjustable speed of strap tension0 - 180  mm/sec
Battery chargerBosh 230  V
Battery charging time48 - 65  min
Battery18 V, 4.0 Ah, Li-Ion Bosch  V/Ah
Weight with battery3.8  kg
Ambient temperature-10 °С ? +40 °С  °С
Relative humidityДо 90  %
Dimensions (L x W x H)367x149x135  mm
