Green 360° Plane Laser Milwaukee, M123PL-401C

Green 360° plane laser
Common Characteristics

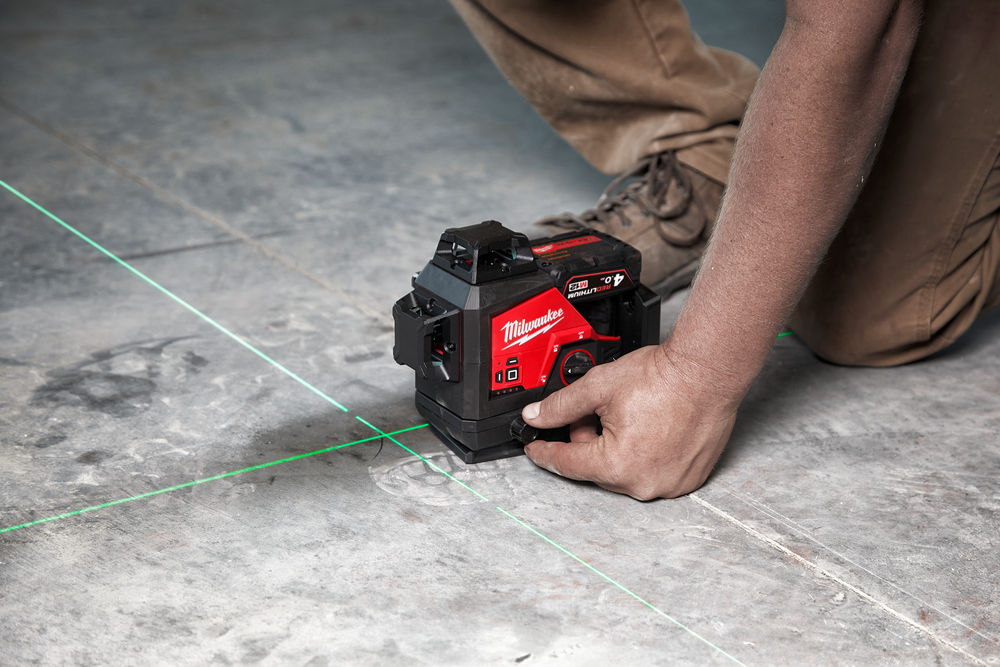

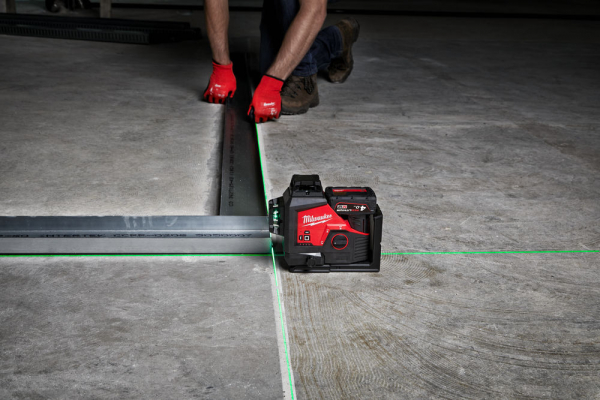

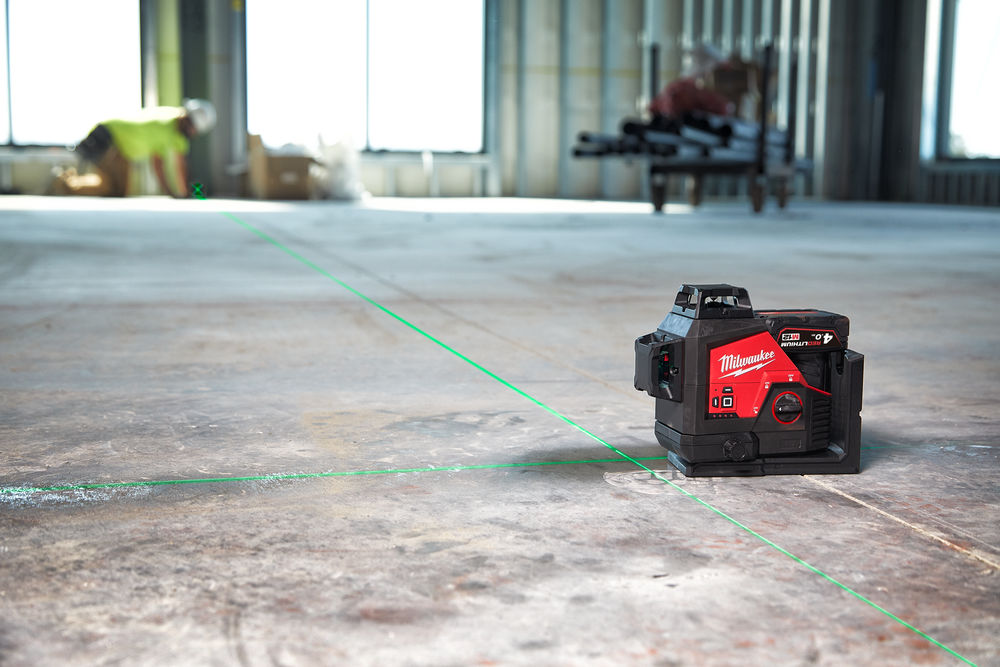

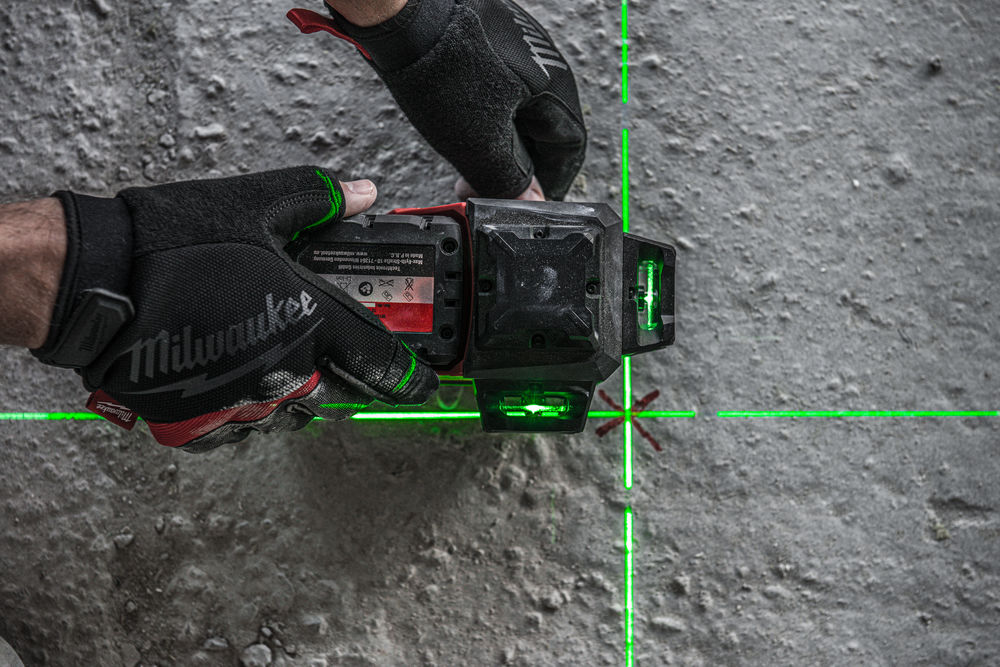

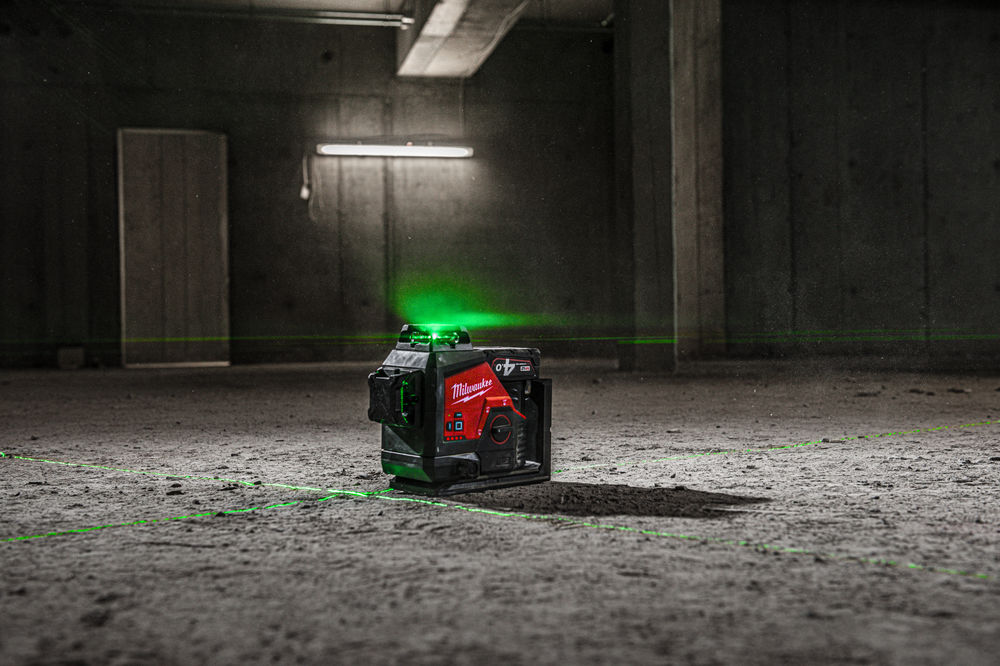

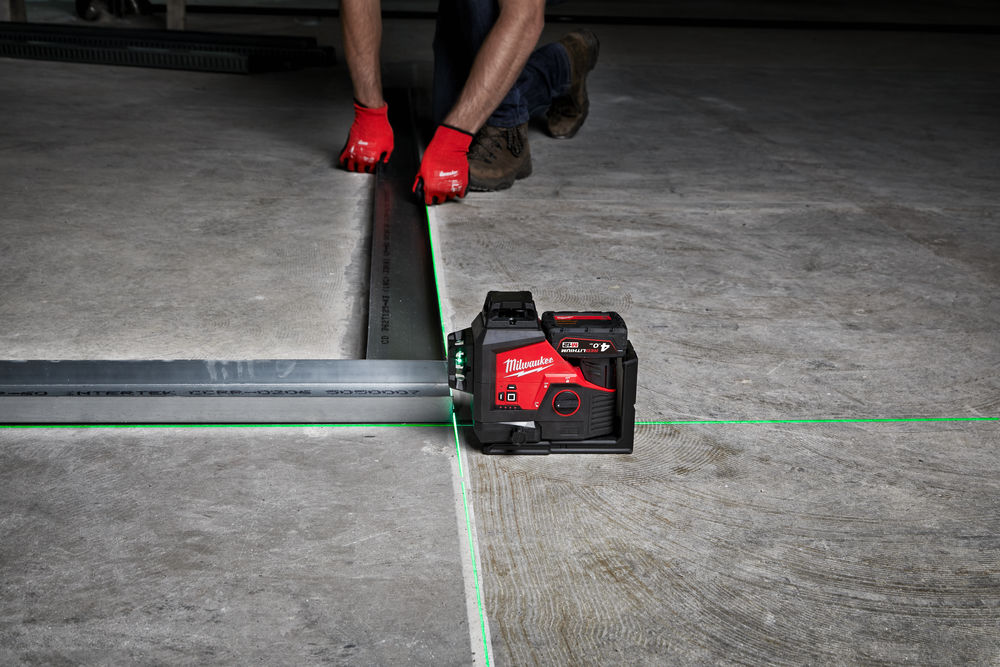

- M12 green 360° 3 plane laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool;
- Built with high intensity green diodes to provide maximised visibility - up to 4x better visibility vs red lasers;
- High intensity green beams provide a working range of 38 m and up to 100 m with a detector;
- Provides all-day run time of 15+ hours with an M12 B4 battery pack;
- 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport;

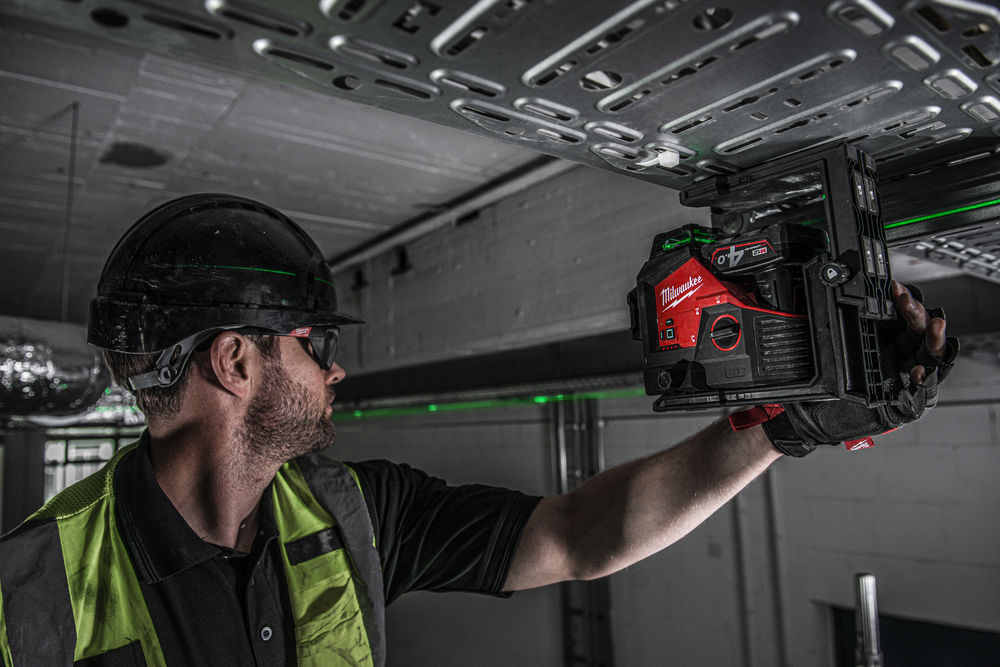

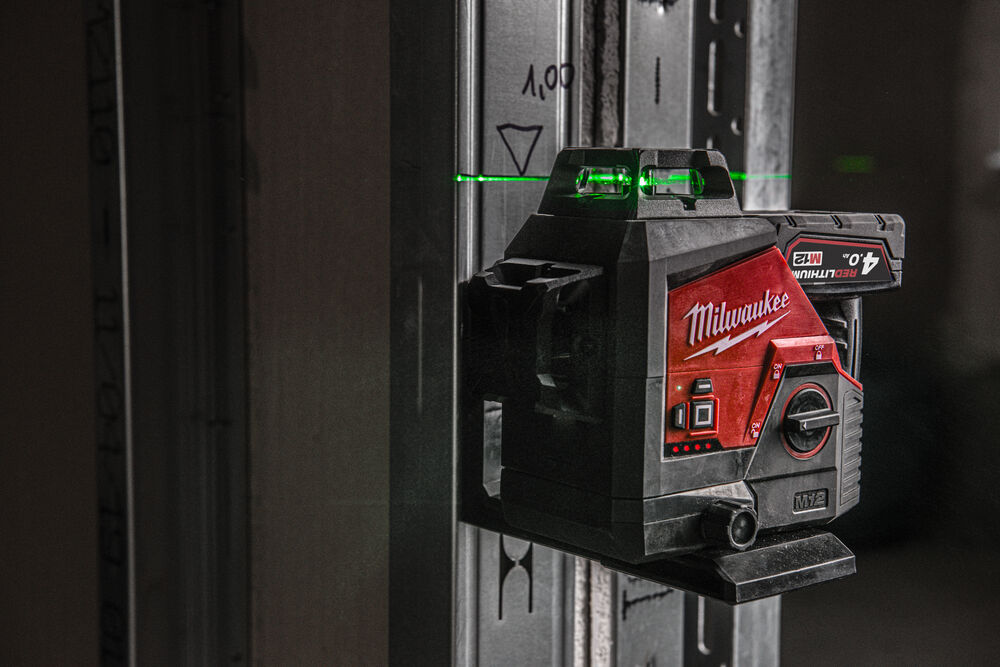

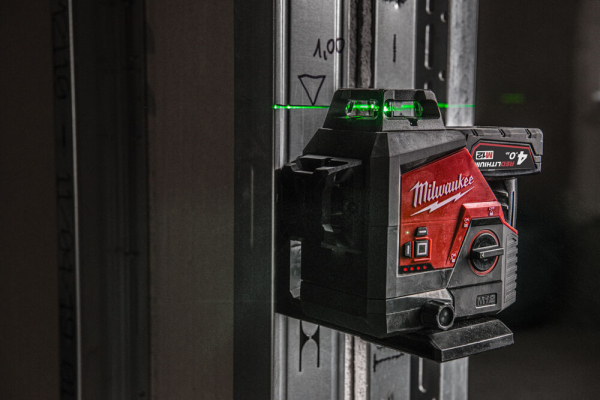

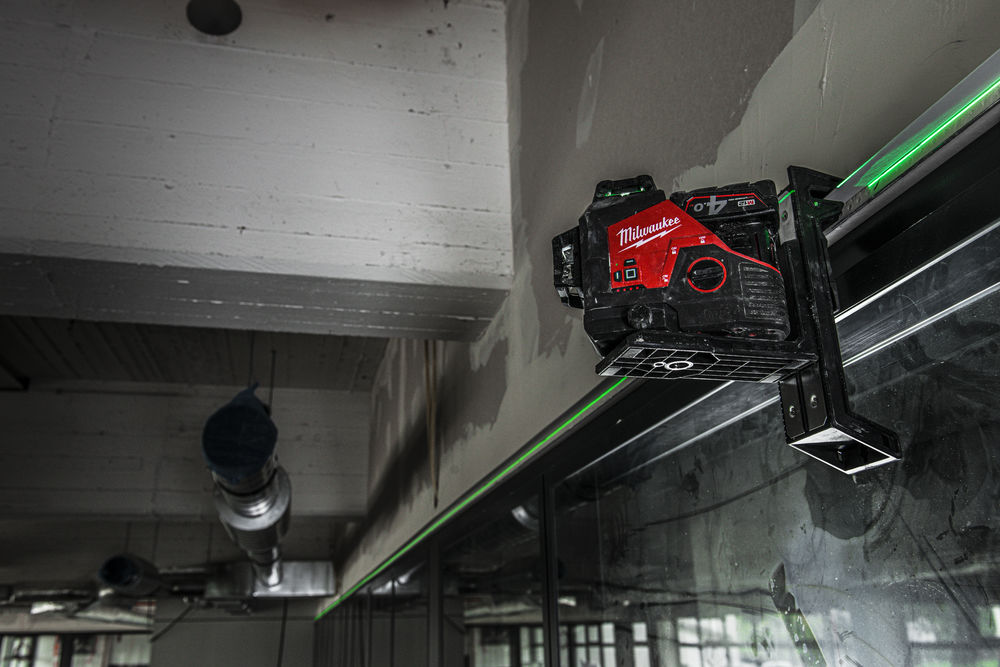

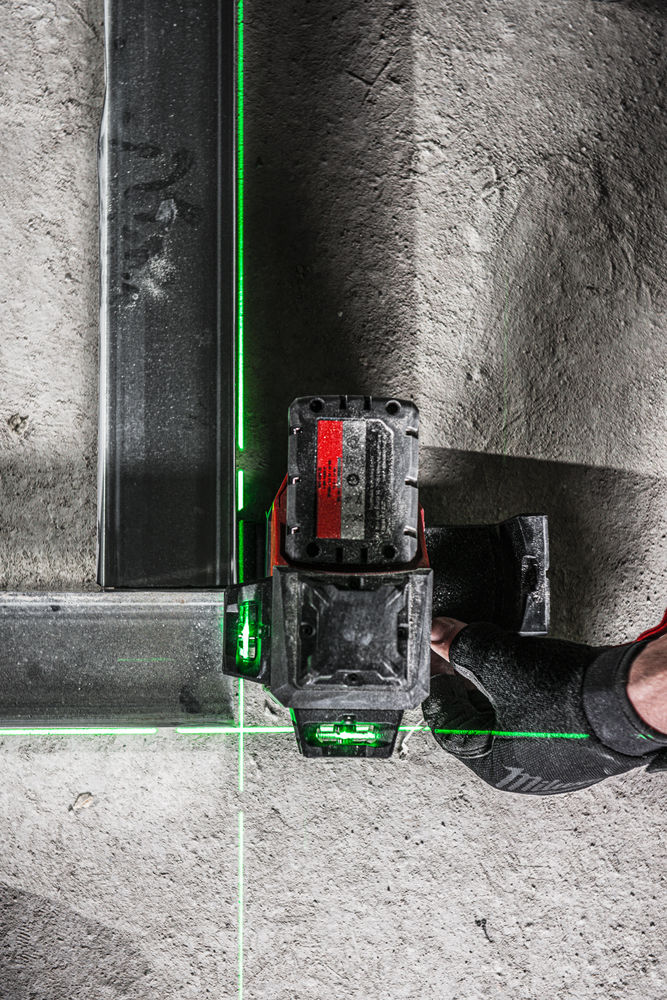

- Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4? and 5/8? tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod;
The bracket also provides the laser 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment;
- Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops;
- Flexible battery system: works with all MILWAUKEE M12 batteries.
Technical Data
Voltage12  V
Battery capacityLi-Ion, 4.0 Ah
Working range38  m
Laser classificationII
IP protection classIP54
Colour of laser lineзелен
Laser projection (degrees)3 x 360° линии
Compatible laser detectorLLD50 / LRD100
Working range detector50 / 100  m
Self-levelling range4  °
Self-levelling time3  s
Weight1.5  kg

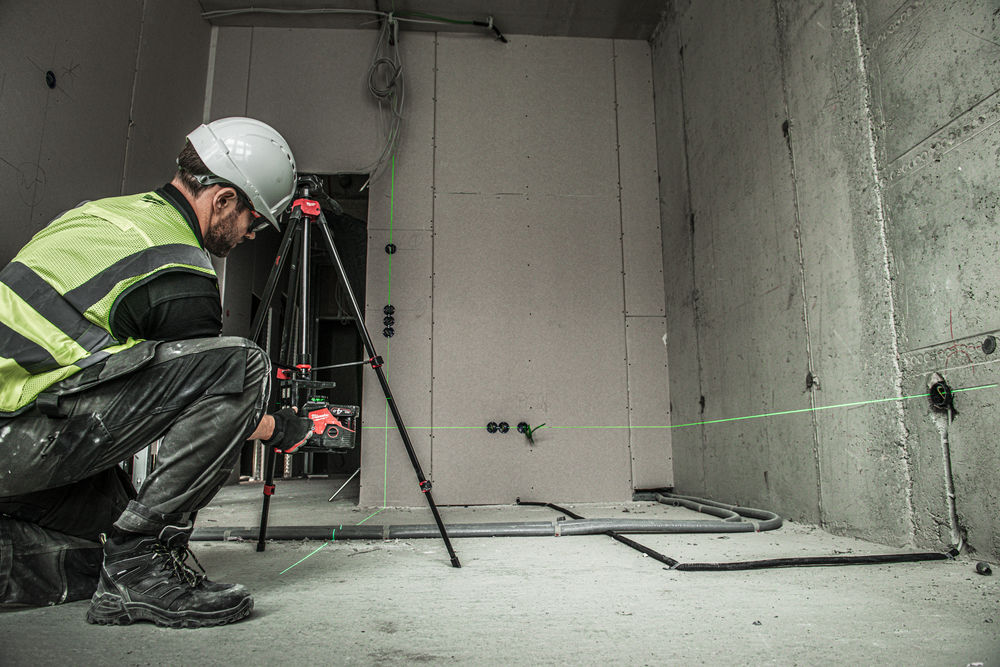

Tripod thread1/4", 5/8"
