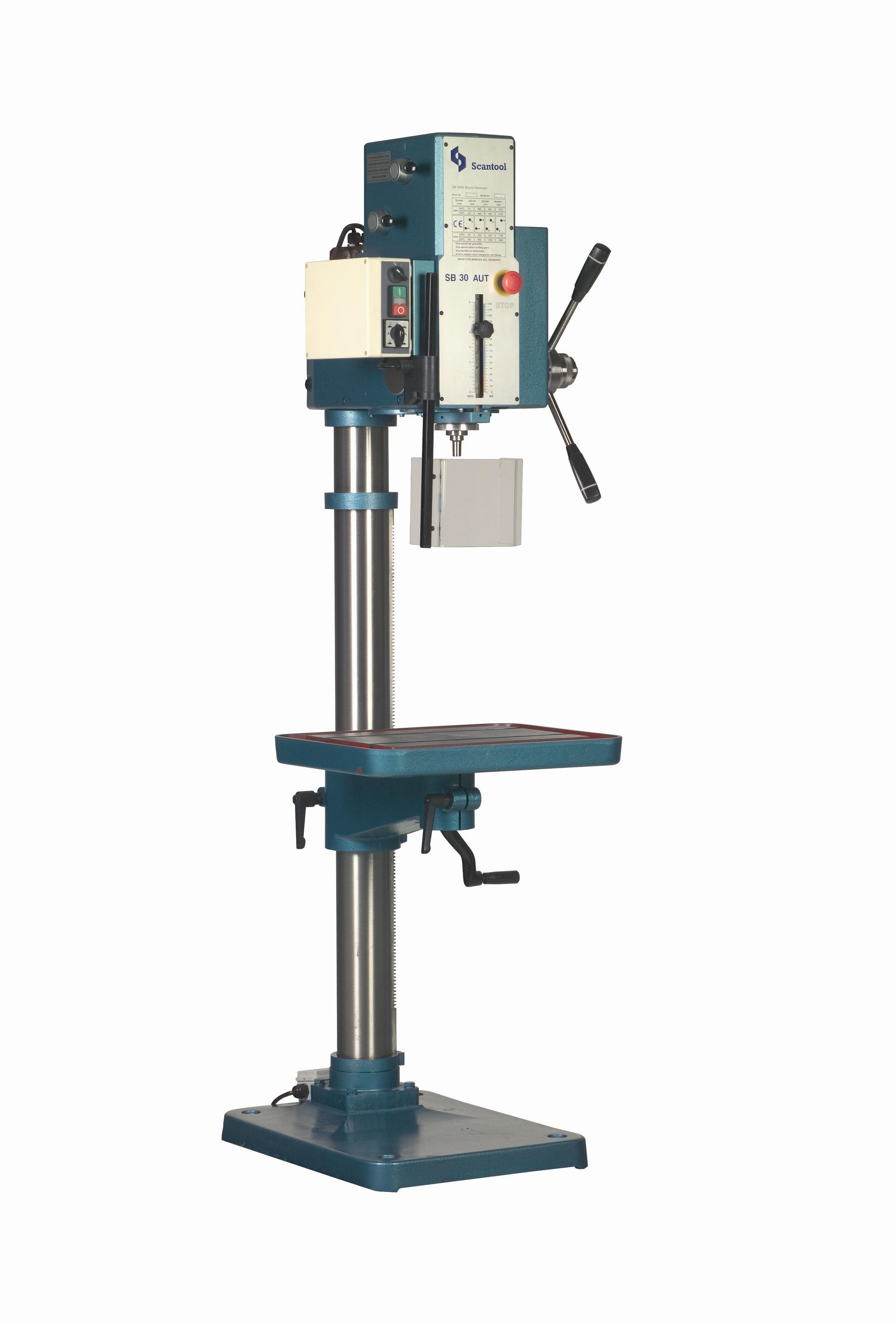

Geared drill press SB 30 AUT
Common Characteristics
High Quality Geared Head Drill Press with following features:
• Automatic feed
• Rigid Construction
• Smooth and Quiet in Operation
• 350 mm throat depth
• Large working table

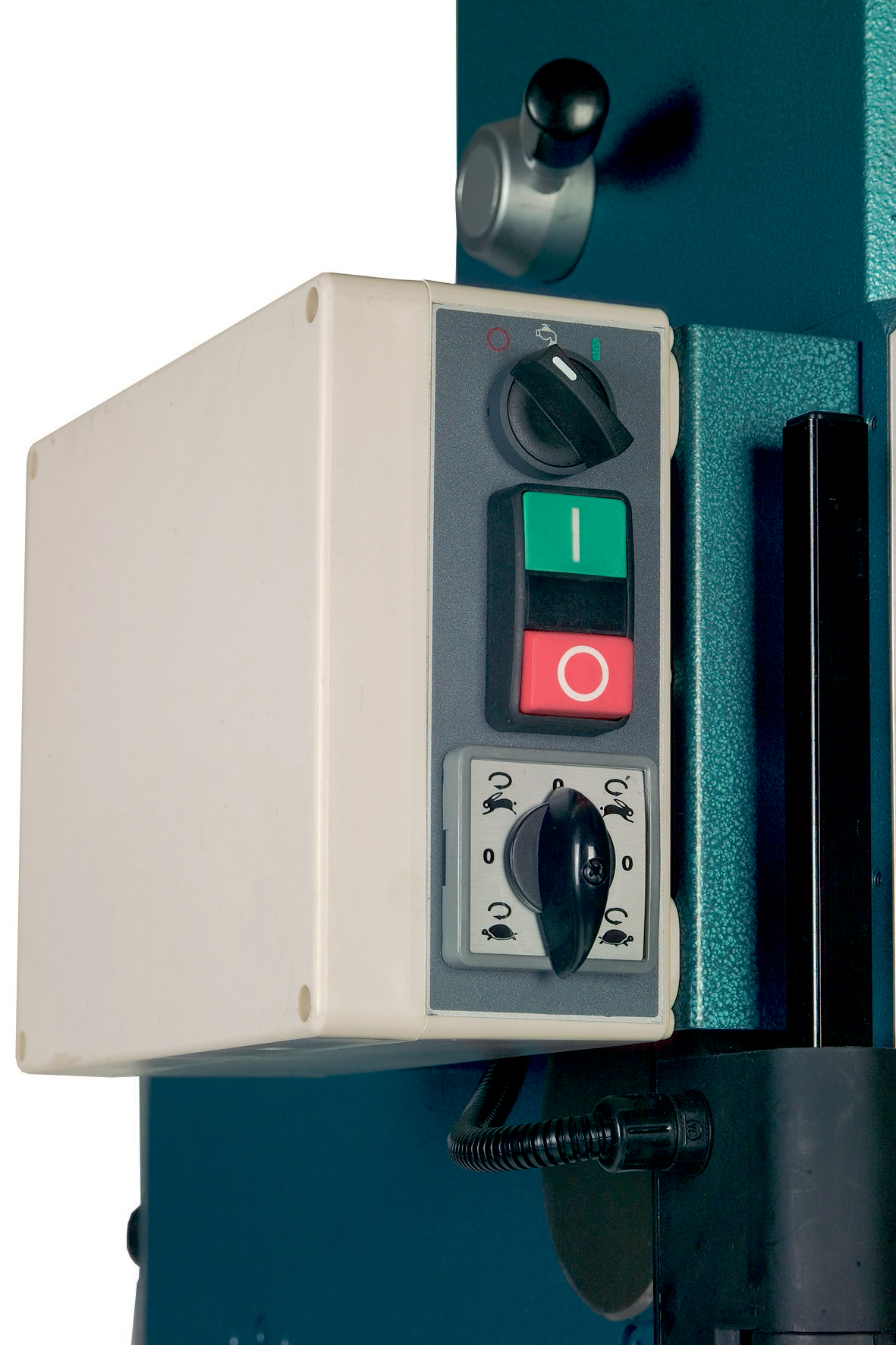

• Control panel prepared for coolant system

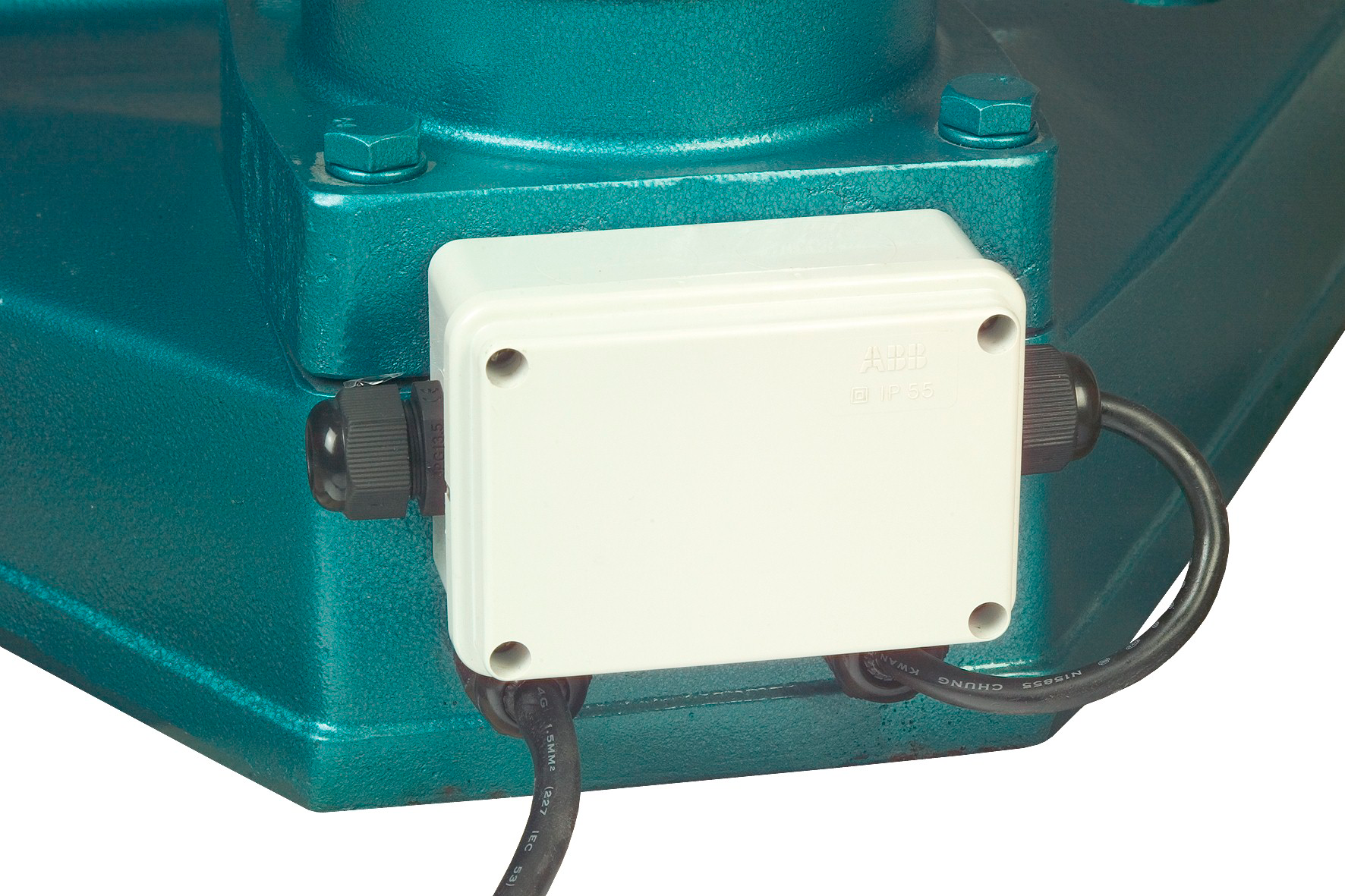

• Easy connection of power and coolant pump due to special connection box
Technical Data
| Parameter | Value |
|---|
| Revolutions per minute | 75-3140
Rpm |
| Voltage | 3x400V-50Hz
V |
| Number of spindle speeds | 8
бр |
| Height | 1730
mm |
| Net weight | 200
kg |
| Motor | 1.1
kW) |
| Drilling Capacity | 32
(Ф mm) |
| Max. spindle travel | 150
mm |
| Throat depth | 285
mm |
| Size of table | 405 x 505
mm |
| Drilling Depth | 150
mm |
| Tapping Capacity | M16
|
| Morse Taper | 3
|
| Speed Numbers - Motor | 2
бр/pcs |
| On pedestal | 1
|
