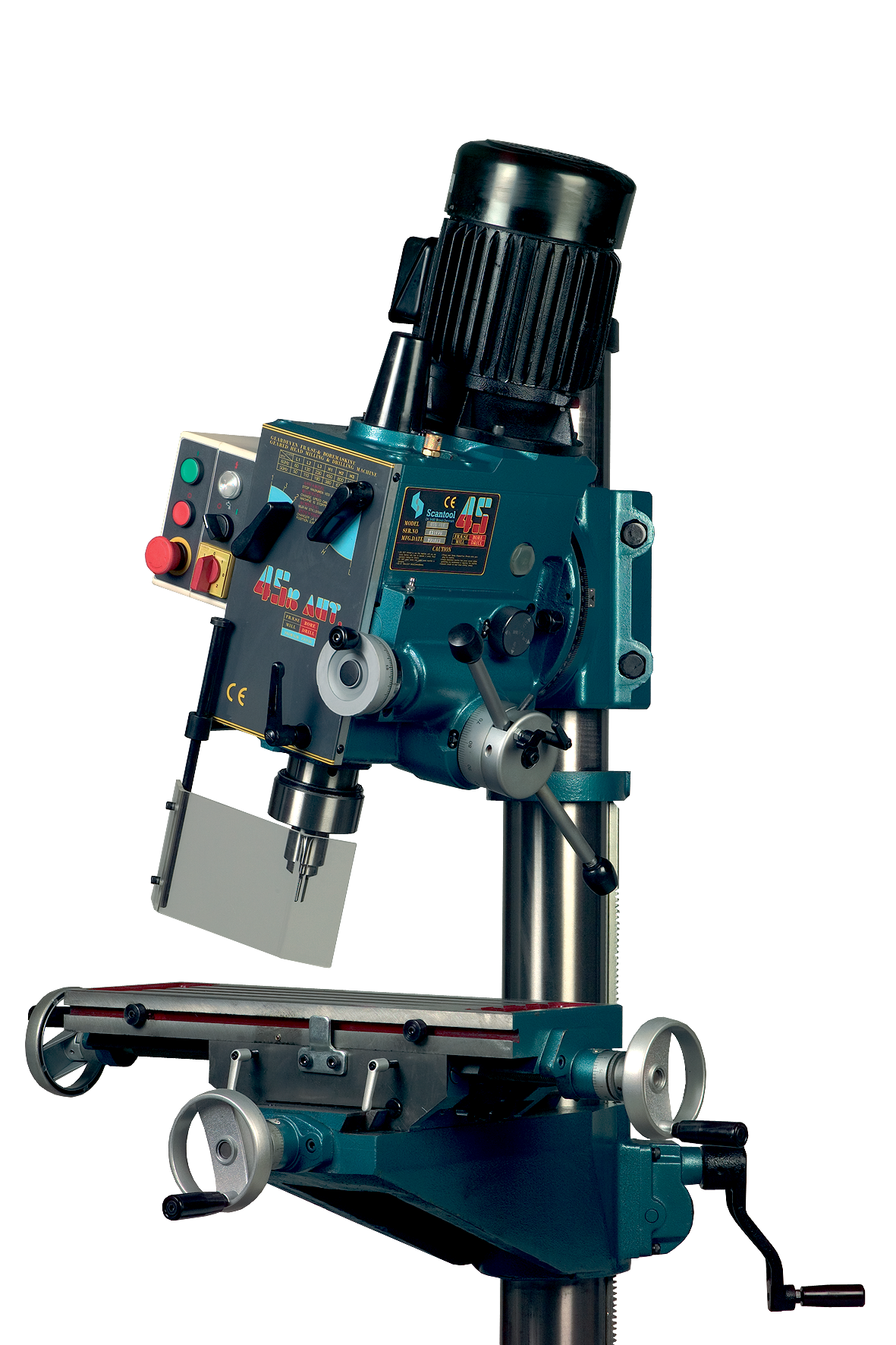

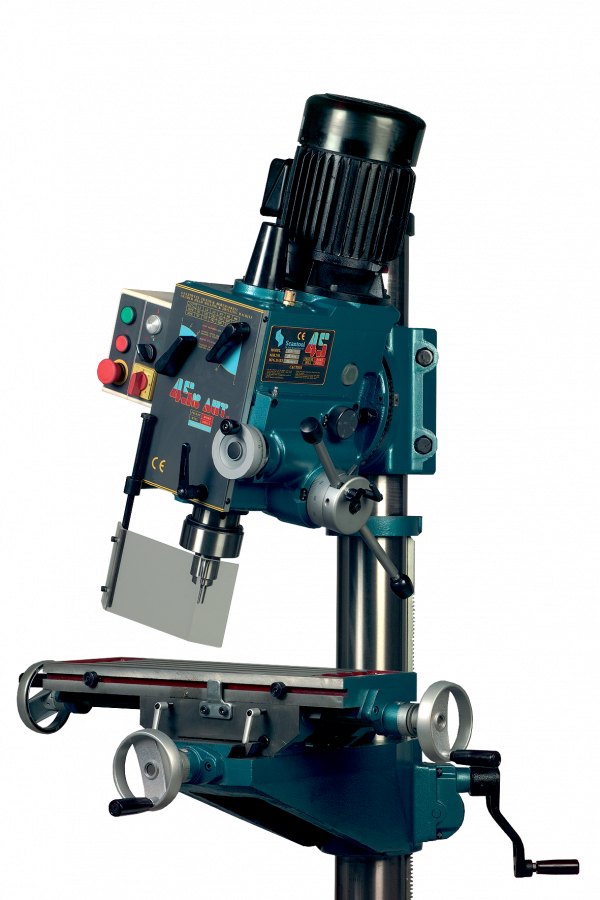

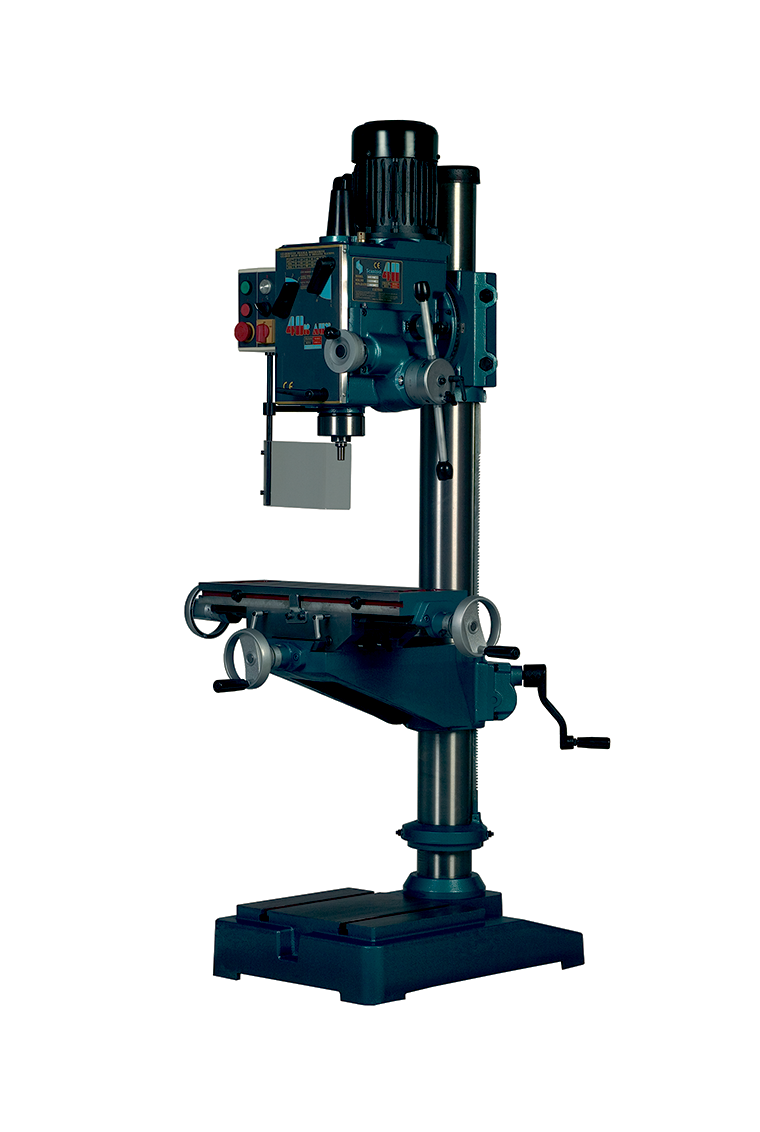

Heavy duty drilling and milling machine
Common Characteristics
- Geared head type
- Automatic feed
- Sturdy Construction
- Noiseless

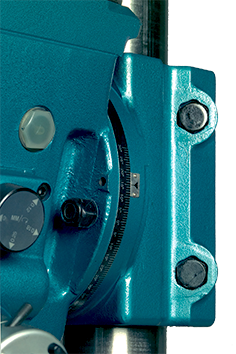

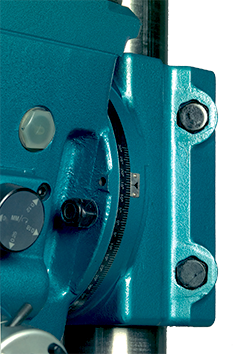

- Tilting head
- 2-speed motor with 12 spindle speeds
- Reversible
Technical Data
| Parameter | Value |
|---|
| Revolutions per minute | 50 - 2500
Rpm |
| Voltage | 3x400V - 50 Hz
V |
| Number of spindle speeds | 12
бр |
| Height | 1960
mm |
| Net weight | 300
kg |
| Motor | 0,75
kW) |
| Drilling Capacity | 40
(Ф mm) |
| Throat depth | 260
mm |
| Max. distance spindle/table | 470
mm |
| Tapping Capacity | M22
|
| Morse Taper | 3
|
| Speed Numbers - Motor | 2
бр/pcs |
| On pedestal | 1
|
