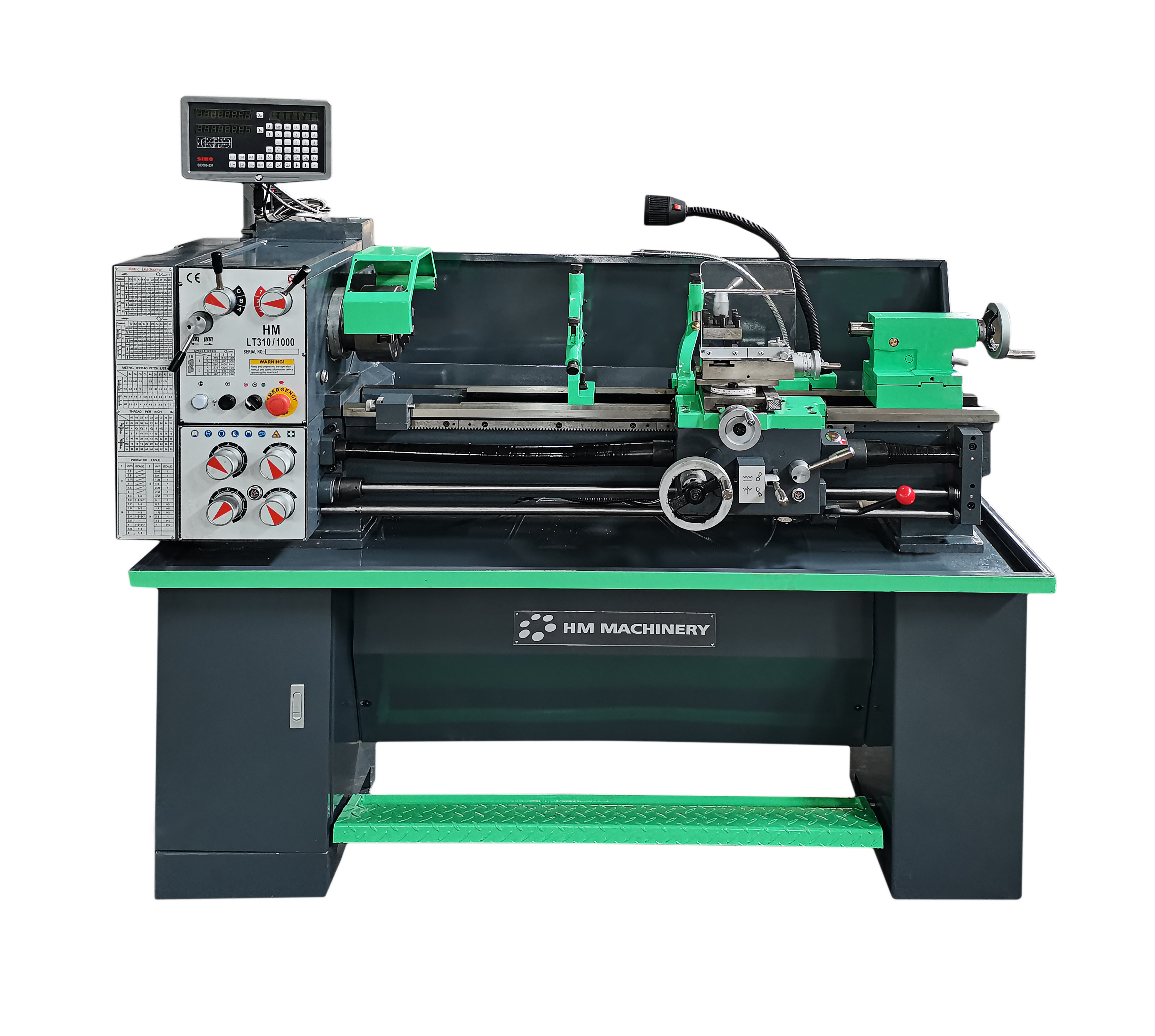

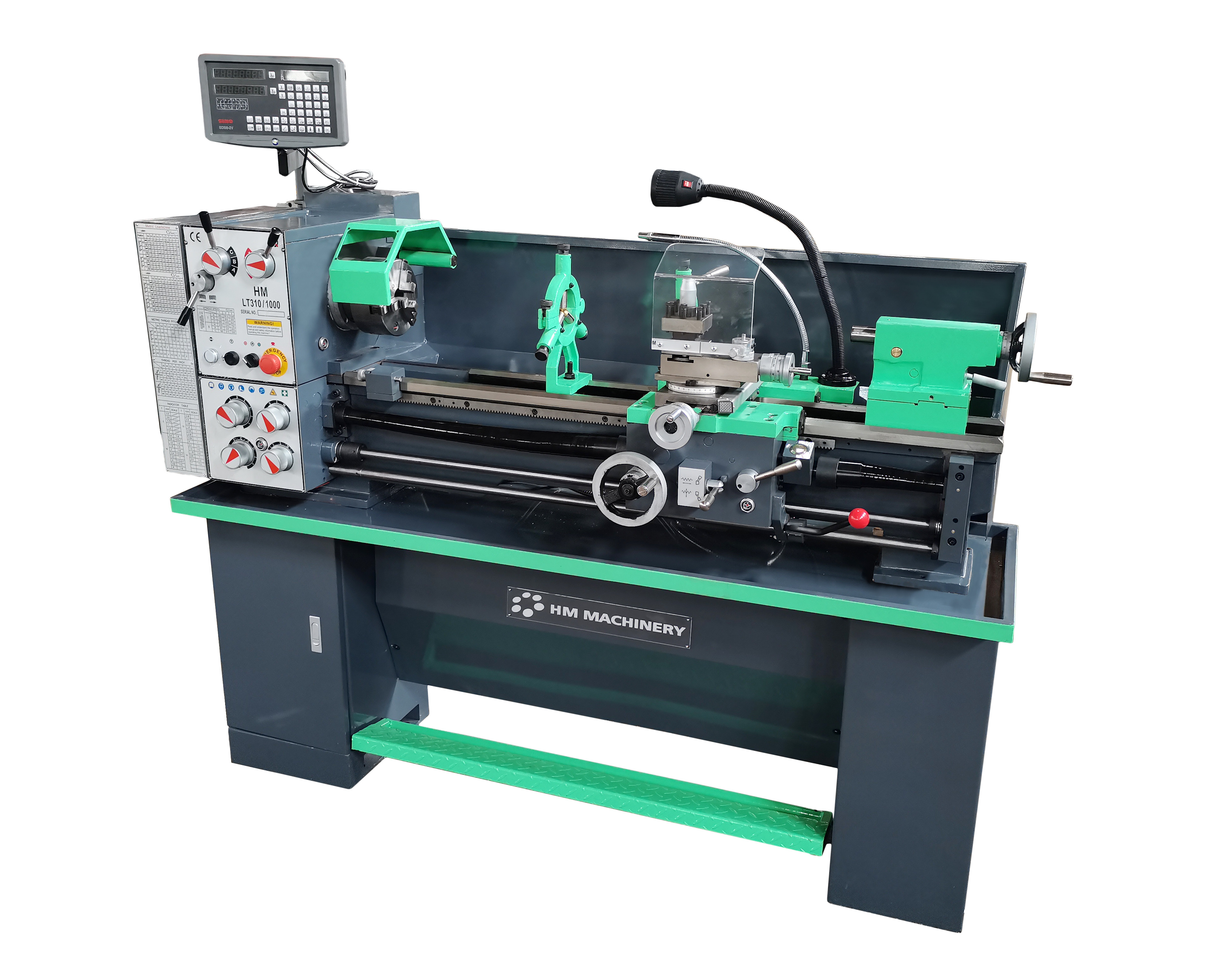

Lathe SCANTOOL HM LT 310-1000

HM LT 310-1000 Lathe
Common Characteristics
Lathe with 1000mm distance between centers, O38mm spindle bore, powered by a 1.5 KW motor.
Standard equipments:
• 160mm 3-jaw chuck
• 200mm 4-jaw chuck
• 300mm face plate
• Steady rest
• Follow rest
• 4-way tool post
• Footbrake
• Cooling pump
• Working lamp
• Tool box
• Chuck cover
• Tool post cover
• leadscrew cover (for 1000 lathe)
• 2-axis DRO
Technical Data
Spindle boreф38  mm
Distance between centers1000  mm
Max. swing over bed310  Ф
Range of spindle speed65-1018  rpm
Travel of tailstock quill100  mm
Metric threads can be cut0.4-7  mm
Inch threads can be cut4-6.0  TPI
Motor1.5  kW
