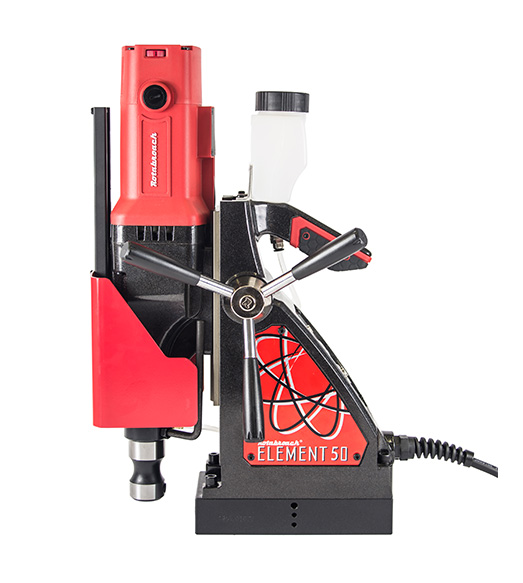

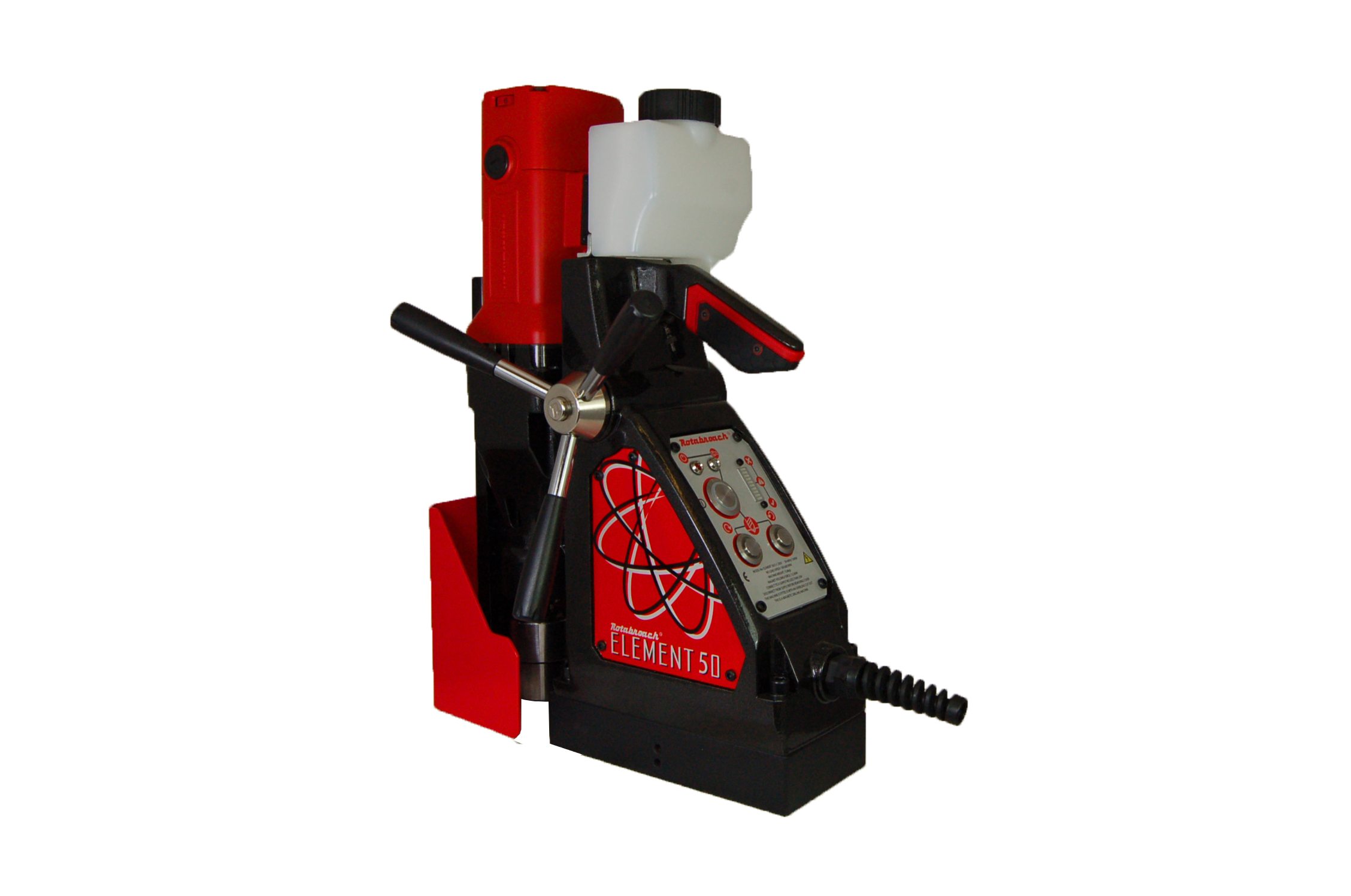

Magnetic drill for drilling up to 50 mm
Common Characteristics
- The Element 50 is one of Rotabroach’s most versatile machines;
- Small in size, with reversible features to allow tapping;
- Suitable for drilling up to 50mm diameter by 50mm depth;
- Dual motor protection system prolonging the machines life;

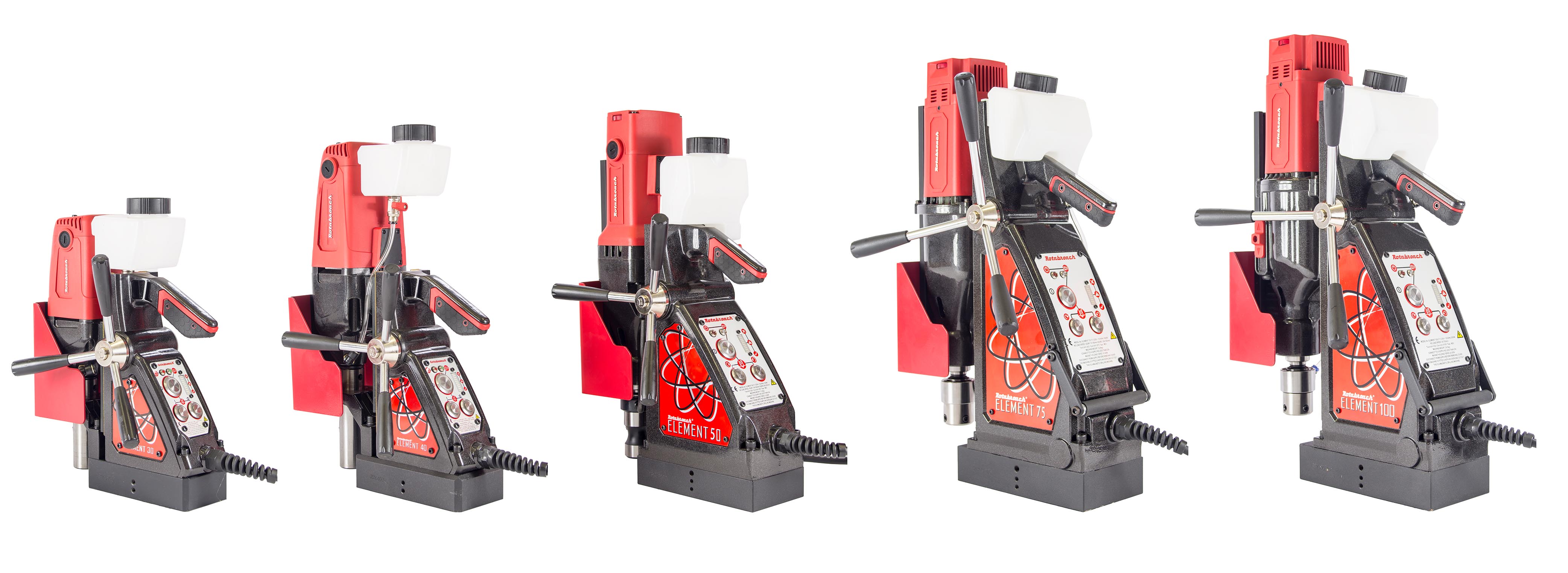

- All of our Element machines are fitted with Rotabroach’s unique CutSmart panels designed to increase your tool life and productivity;

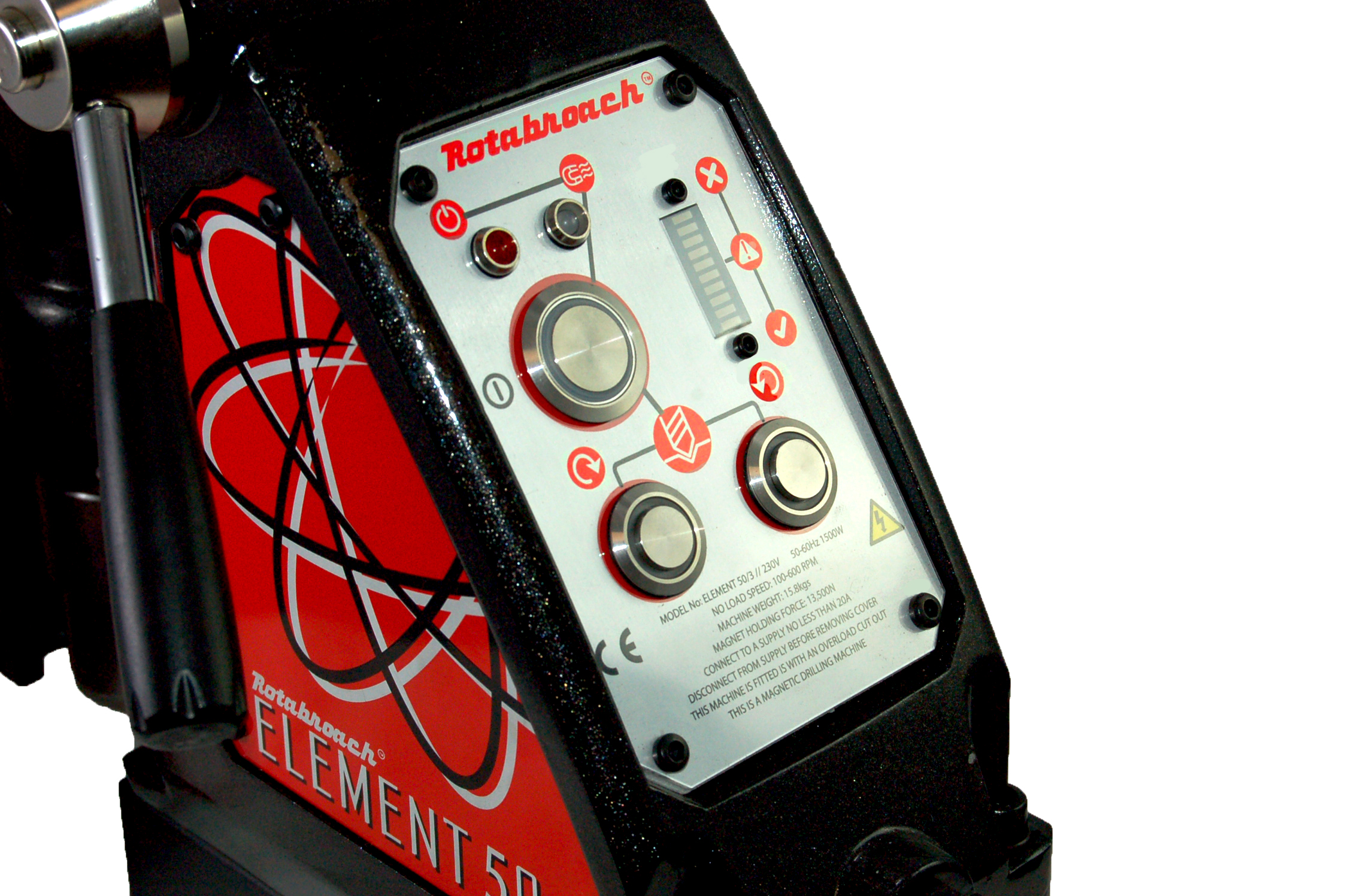

- Designed for you to get the most out of your machine and your cutters, CutSmart has an easy to read panel that indicates when you are drilling with too much force, to avoid inappropriate use;
- Allow the cutter to do the work and you will find that a much smoother hole and faster drilling time is achieved.
Technical Data
| Parameter | Value |
|---|
| Motor specification | 1500
W |
| No Load | 100-265;200-500;
rpm |
| Max hole cutting diameter | 50
mm |
| Max hole cutting depth | 50
mm |
| Arbor | 19.05
mm |
| Magnetic adhesion | 13500
N |
| Magnet size | 200x98
mm |
| Weight | 15.8
kg |
