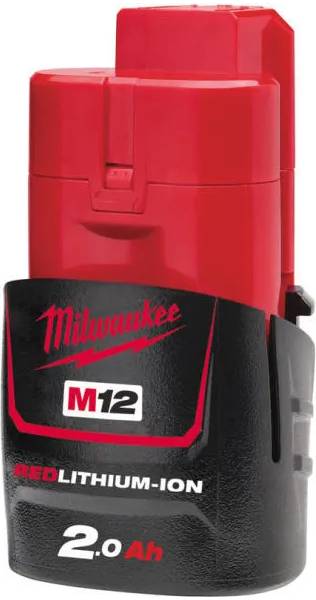

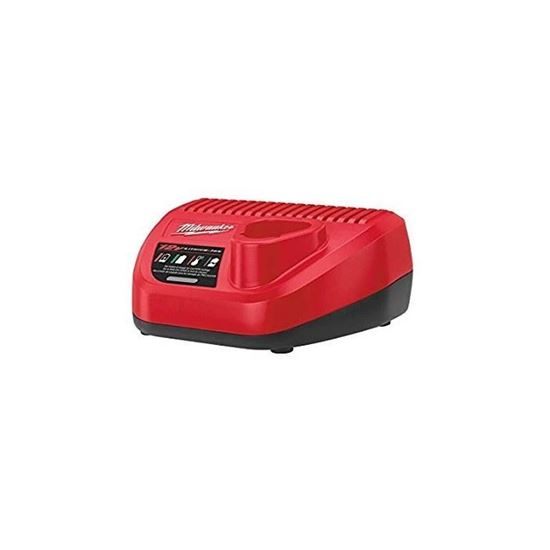

M12PCSS-202C includes: 2 battery packs M12 B2 (2Ah), charger C12 C and Kitbox. Standard equipment: 1x spare blade, 2x retaining clip, 1x oil tube
Common Characteristics

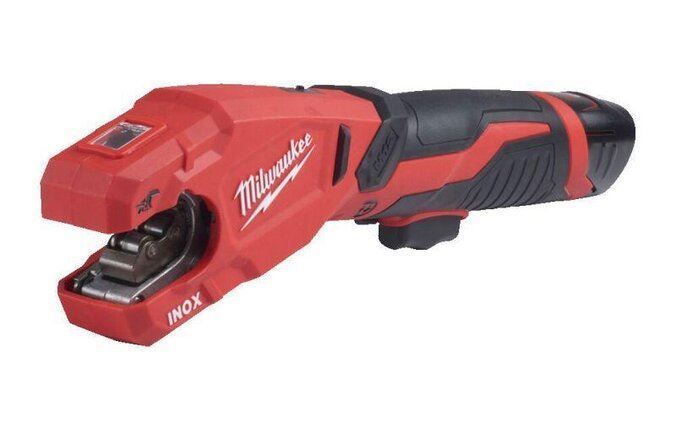

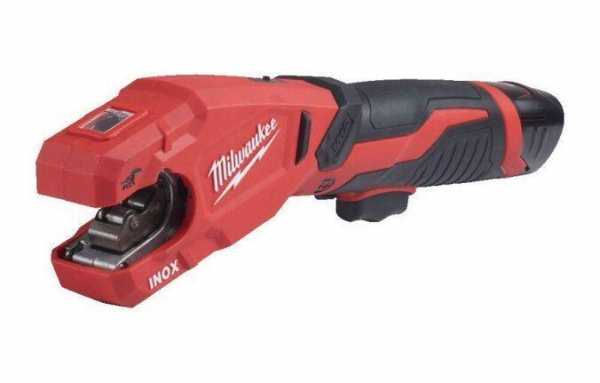

The MILWAUKEE® RAPTOR™ is the worlds first 12V pipe cutter that is able to cut installed pipe in stainless steel, c-steel and copper
High performance 380 rpm motor cuts 28 mm stainless steel pipe in less than 20 seconds
Up to 90 cuts in 15 mm stainless steel with one M12™ 2.0 Ah battery pack

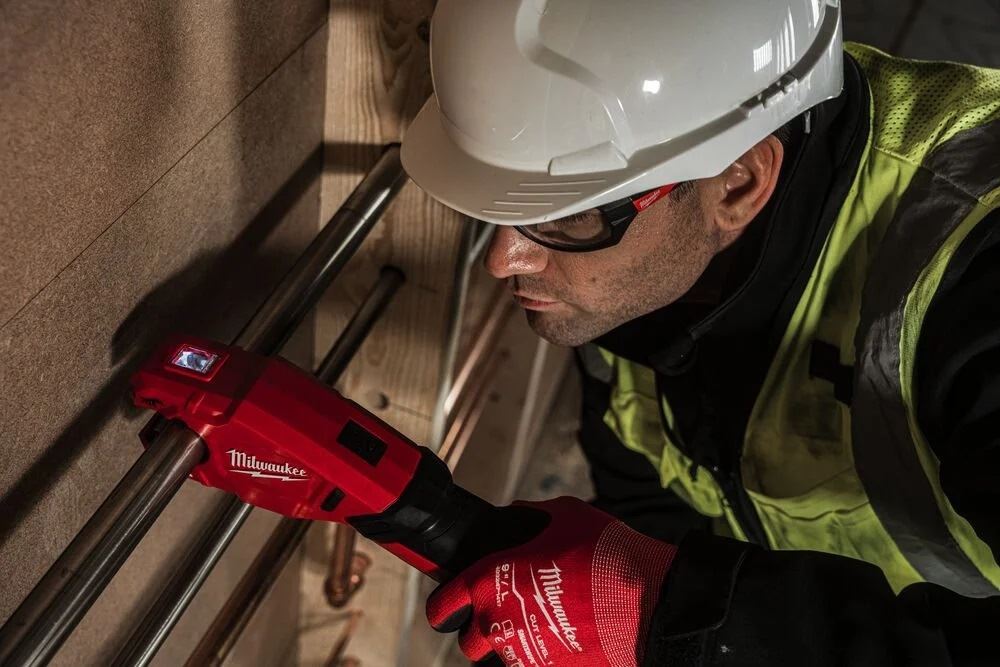

Auto locking cut mechanism cuts installed pipe with as little as 40 mm clearance
Auto adjusting jaws automatically adjust to pipe size
Able to cut stainless steel, c-steel and copper in the sizes 12, 15, 18, 22, 28 mm
All metal sealed front end – rust and corrosion resistant cut head and internal drainage system make the tool water resistant
Viewing window at cutting mechanism and build in light, allow the user to precisely cut the pipe
On board fuel gauge and LED light
Premium 4-pole brushed motor, REDLITHIUM™ battery pack and REDLINK™ electronic delivering the needed power, run time and durability
Flexible battery system: works with all MILWAUKEE® M12™ batterie
Technical Data
| Parameter | Value |
|---|
| Voltage | 12
V |
| Capacity | 2 Ah
|
| Minimum space for tube cutting | 40
mm |
| No load speed | 380
rpm |
| Overall length | 362
mm |
| Pipe diameter | 12, 15, 18, 22, 28
mm |
| Weight without battery pack | 1.3
kg |
