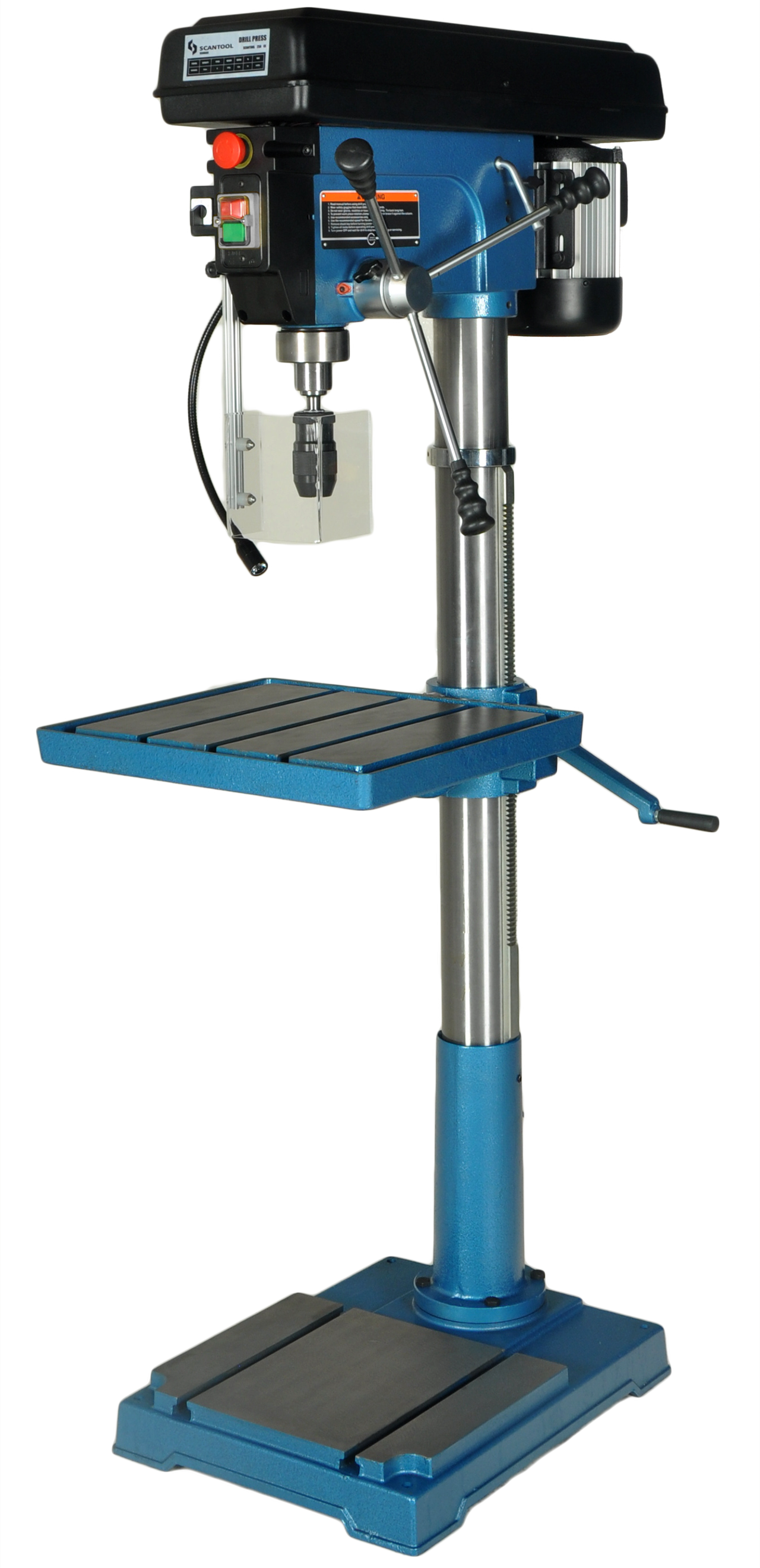

V-belt driven drill press SCANTOOL 25A
Common Characteristics
• Morse Taper No. 4
• Reversible spindle rotation
• Large working table
• Complete with auto lock chuck

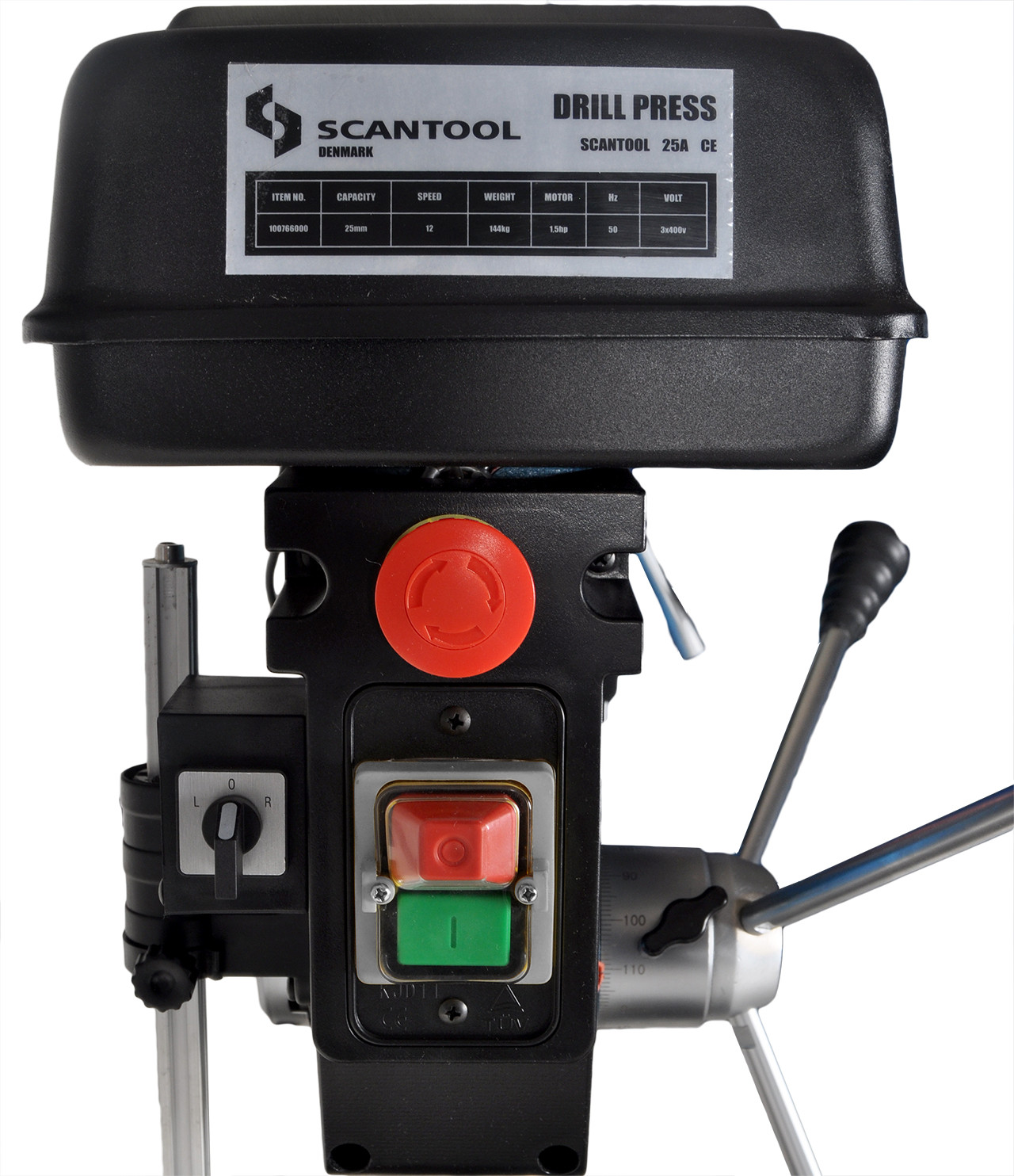

• Separate emergency stop and working light

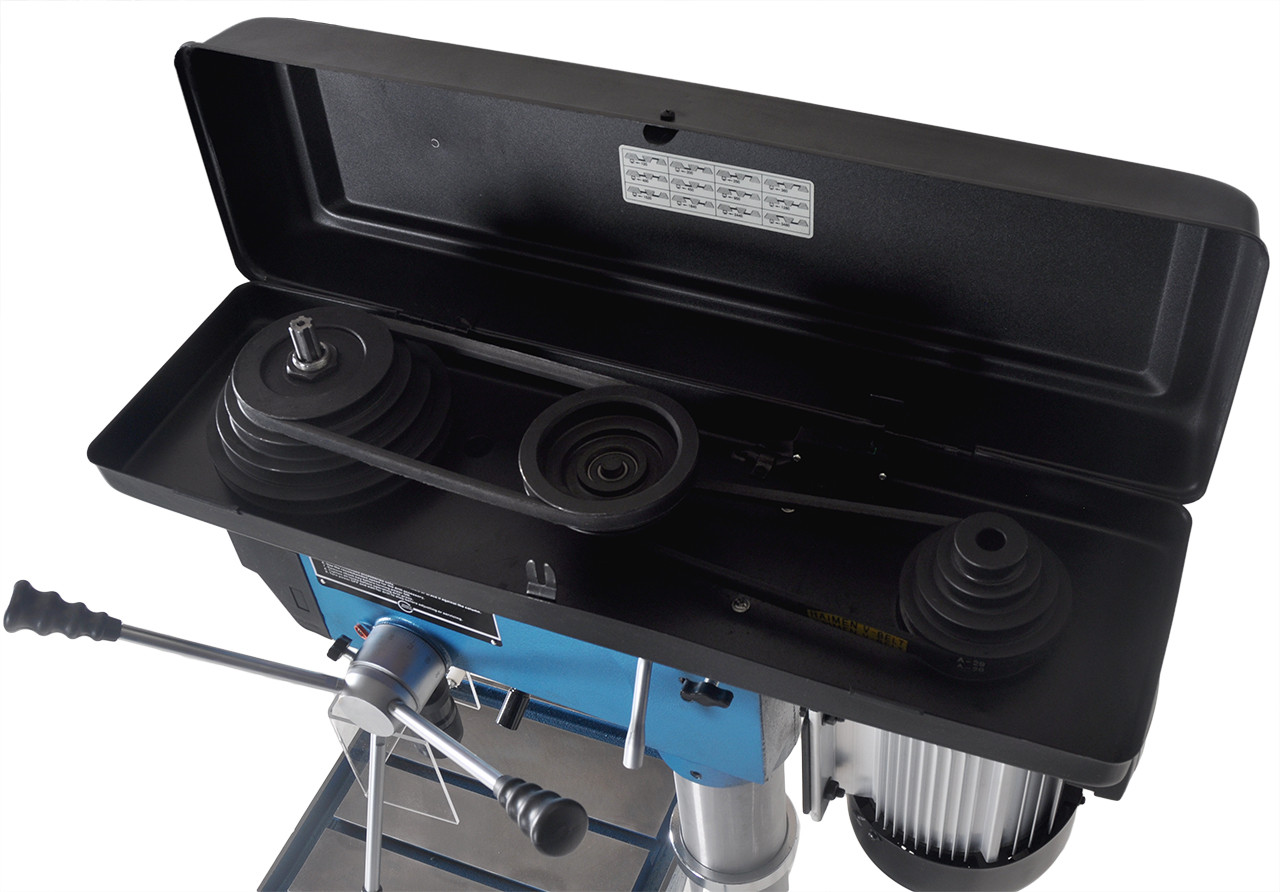

• For max. safety when changing the belt speed the machines are supplied with safety switch.
• Safety guard complete with micro switch
• Designed for both home workshop and industrial use
• The Scantool drill presses are specially produced by one of the largest factories in the world, using advanced technology on semi-automatic production lines
• The simple construction ensures high quality, easy operation and a long life
• The table is tilt-able with degree scale.• 400 V models are reversible.
Technical Data
| Parameter | Value |
|---|
| Revolutions per minute | 120-3480
Rpm |
| Voltage | 3x400V 50HZ
V |
| Number of spindle speeds | 12
бр |
| Height | 1700
mm |
| Net weight | 125
kg |
| Motor | 1.1
kW) |
| Drilling Capacity | 1-32
(Ф mm) |
| Drill chuck | 16/B16
mm |
| Max. spindle travel | 120
mm |
| Throat depth | 254
mm |
| Max. distance spindle/table | 710/1180
mm |
| Size of table | 475/425
mm |
| Max. tilt of table (+/-) |
45°
degree |
| On pedestal | да
|
