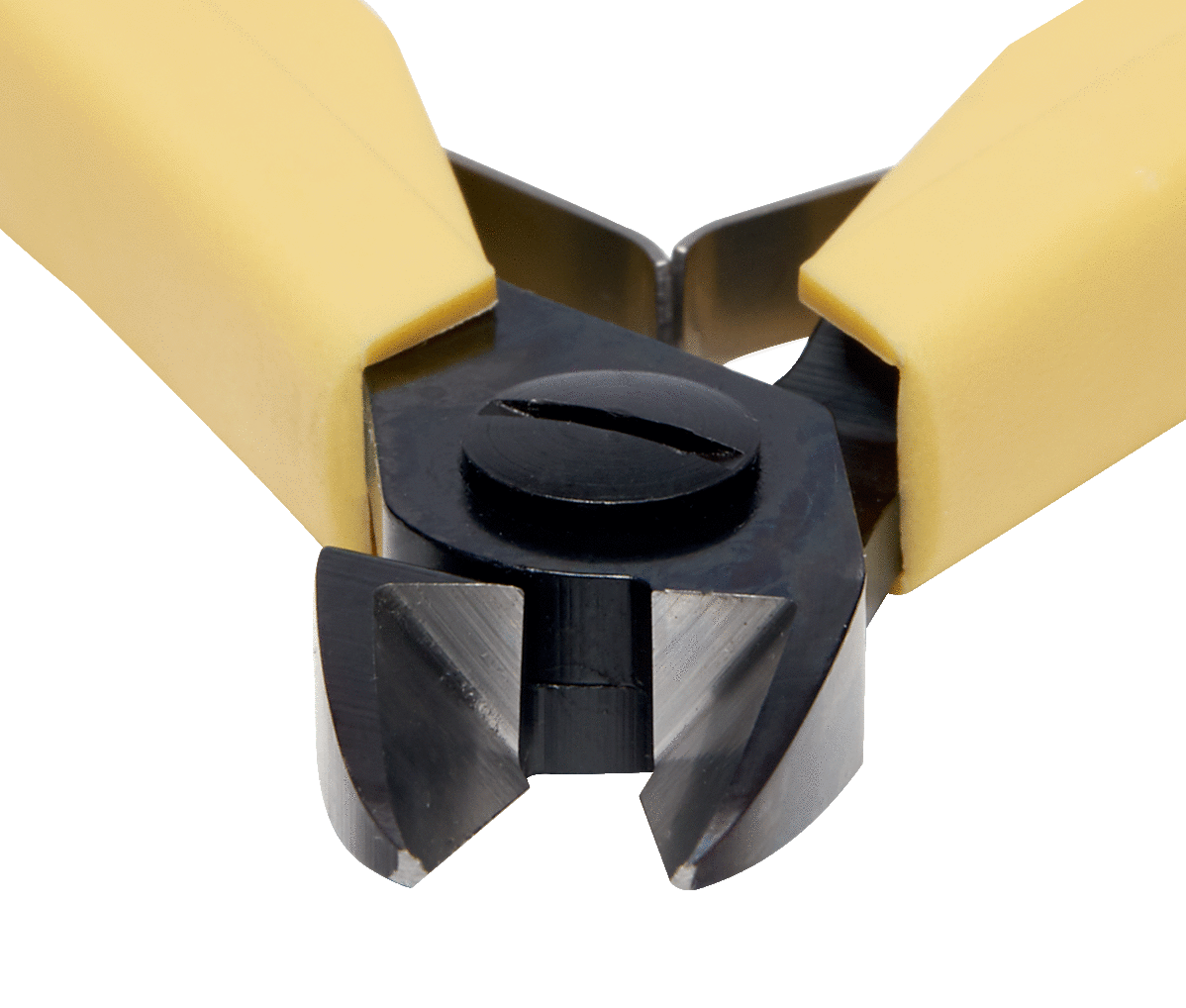

ESD Precision Diagonal Cutters with Oval Head, cut "Ultra-Flush" for cutting copper.
Common Characteristics
80 Series precision diagonal and stripping cutter
ESD safe mono-material handles with return spring
Suitable for cutting Cu
High performance alloyed steel
Burnished finish
Numerically controlled machine grinding guarantees edge angle accuracy & contact, increases the tools reliability & consistency
Precision induction hardened edges 63-65 HRC
Screw joint that minimizes friction & maximizes alignment of cutting edges
Ideal for wire harness work & standard printed circuit board assembly
Also valid for stripping
Technical Data
| Parameter | Value |
|---|
| Total length | 110
mm |
| Head length | 10.5
mm |
| Head sizes | 10x6
mm |
| Tips sizes | 0.8
mm |
| Cutting capacity for Cu | 0.1-1.0
mm |

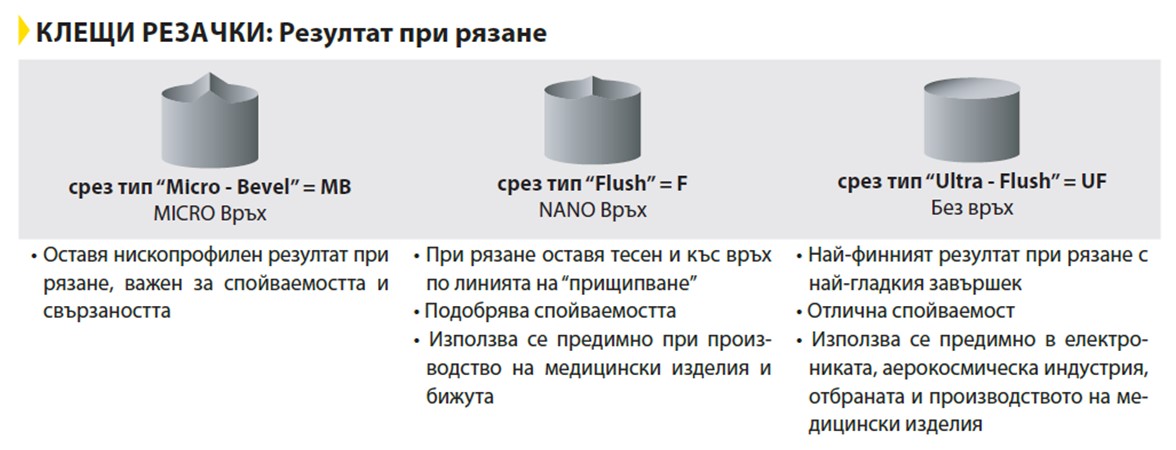

| Cut | Ultra-Flush
|

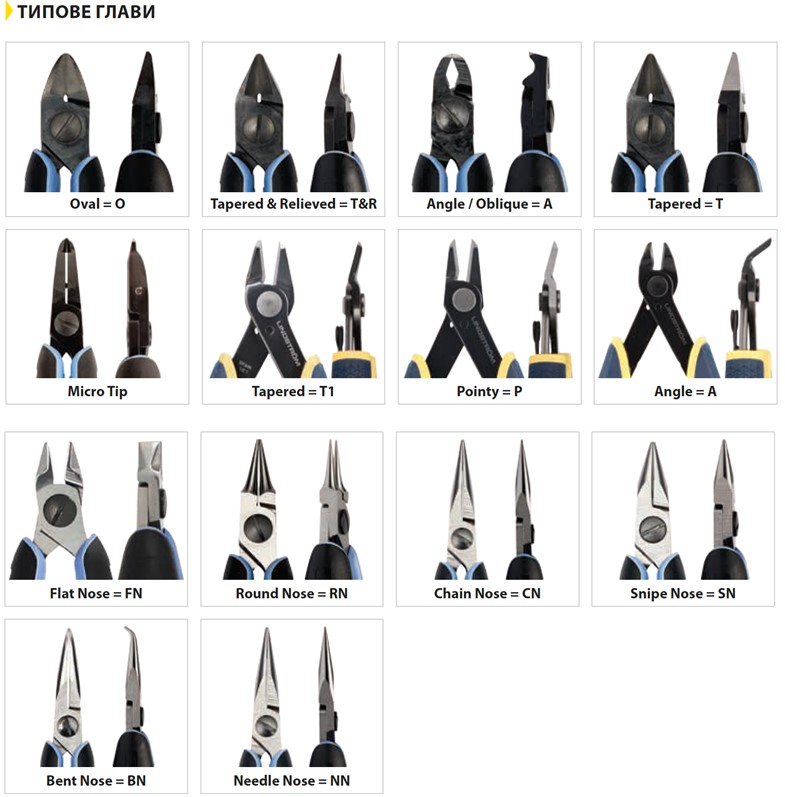

| Head | Oval = O
|
