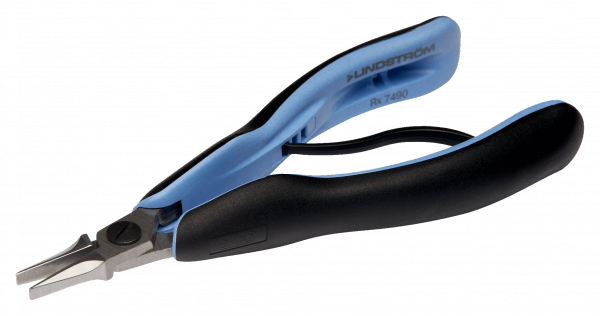

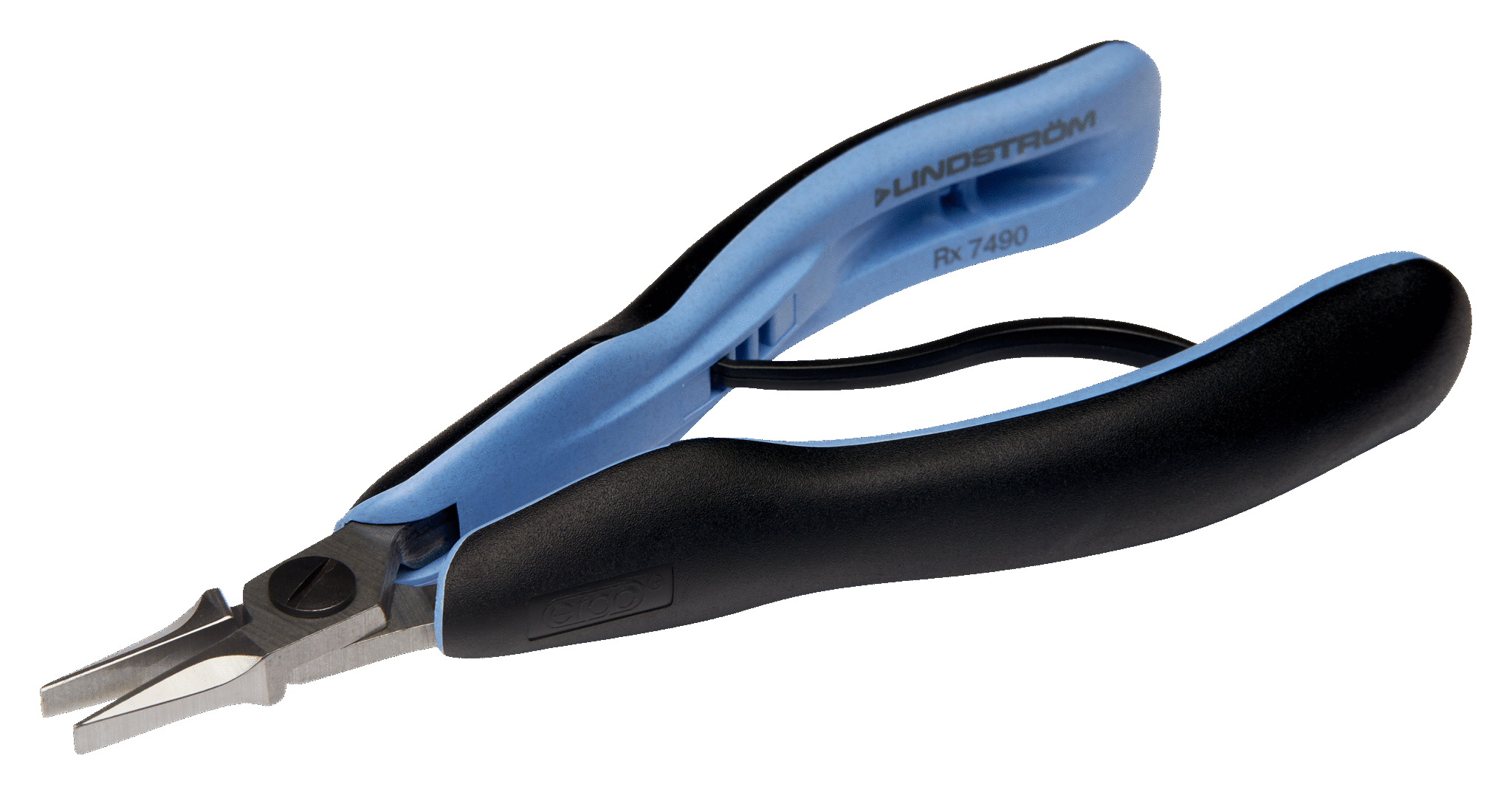

Flat Nose Pliers; L=146.5 mm
Common Characteristics
ESD Precision Flat Nose Pliers, flat tip and smooth surface
Precision flat nose pliers developed according to the scientific ERGO™ process
ERGO™ handles with two-component combination, thermoplastic surface, for comfortable grip, on tough polypropylene core for rigidity
High performance alloyed steel
Polished finish
Numerically controlled machine grinding guarantees accuracy & increases the tool's reliability & consistency
Tough, hardened 42 HRC to 46 HRC
Screw joint minimises friction & maximises jaw alignment
ESD safe handles in two-component synthetic material
Micro-Touch: the shape of the handles makes it possible to control & rotate the pliers between thumb & index finger for precision work
Bio spring limits the tension throughout the working cycle of the tool & can be adjusted to 3 different positions or removed
Technical Data
| Parameter | Value |
|---|
| Total length | 146.5
mm |
| Head length | 20
mm |
| Head sizes | 9x6.7
mm |
| Tips sizes | 1.2x3.2
mm |
| Surface | Гладки = SM
|
| Head | Flat Nose = FN
|
| Tip | Flat tip
|
