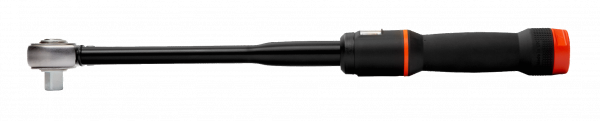

Torque Click Wrench 3/4'' 80-400 Nm BAHCO 74WR-400

Mechanical Adjustable Torque Click Wrench with Window Scale and Fixed Push-Through Ratchet Head with male square drive 3/4'' and torque wrench 80-400 Nm
Common Characteristics
- Durable mechanism with over 100,000 cycles within accuracy
- Fast scale adjustment reducing the effort required to adjust
- TIMESTRIP visual indication that the wrench is due for re-calibration and has 3, 6, 9 and 12-month graduations
- Large dual scale in N·m/ft.lb
- Can be used clockwise or anticlockwise by pushing across the square drive of the ratchet head
- Accurate to ±3% of reading which exceeds the requirements of ISO6789-1:2017
- Clicking system triggers a tactile and audible signal
- Push-through ratchet heads from 3/8" to 3/4" square drives allowing CW and ACW operations
- Handle centre or calibration force point marked on handle
- Lock/unlock knob with blue ring inside to warn the operator the wrench is unlocked
- In a semi-transparent square tube with eurohole hanger
- All wrenches come with a factory declaration of conformity traceable to international standards
- ISO 6789
- Made in the UK
Technical Data
ParameterValue
Square3/4  ''
Torque range80-400  Nm
Length686  mm
Weight1900  g
