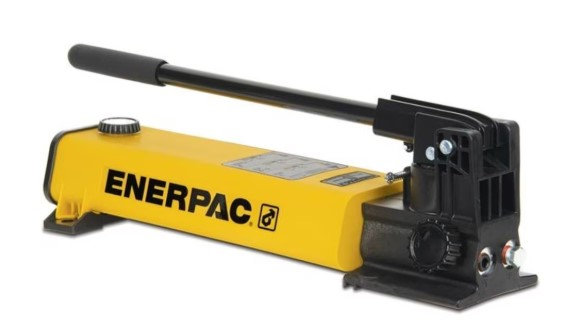

Enerpac lightweight hydraulic hand pumps are a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. Each model is rated up to 10,000 psi (700 bar).
Common Characteristics
Maximum Operating Pressure (bar) - 700
Pressure Rating 1st Stage (bar) - 27
Pressure Rating 2nd Stage (bar) - 700
Cylinder Compatability - Single-acting
Pump Type - Two Speed
Reservoir Capacity (cm3) - 2540
Usable Oil Capacity (cm3) - 2540
Maximum Flow at Rated Pressure - 2,47 cm3/stroke
Oil Displacement Per Stroke 1st Stage (cm3) - 39,33
Oil Displacement Per Stroke 2nd Stage (cm3) - 2,47
Maximum Handle Effort (kg) - 43,1
Piston Stroke (mm) - 25,4
Valve Operation - Manual
Power Source - Manual
Weight (kg) - 8,2
