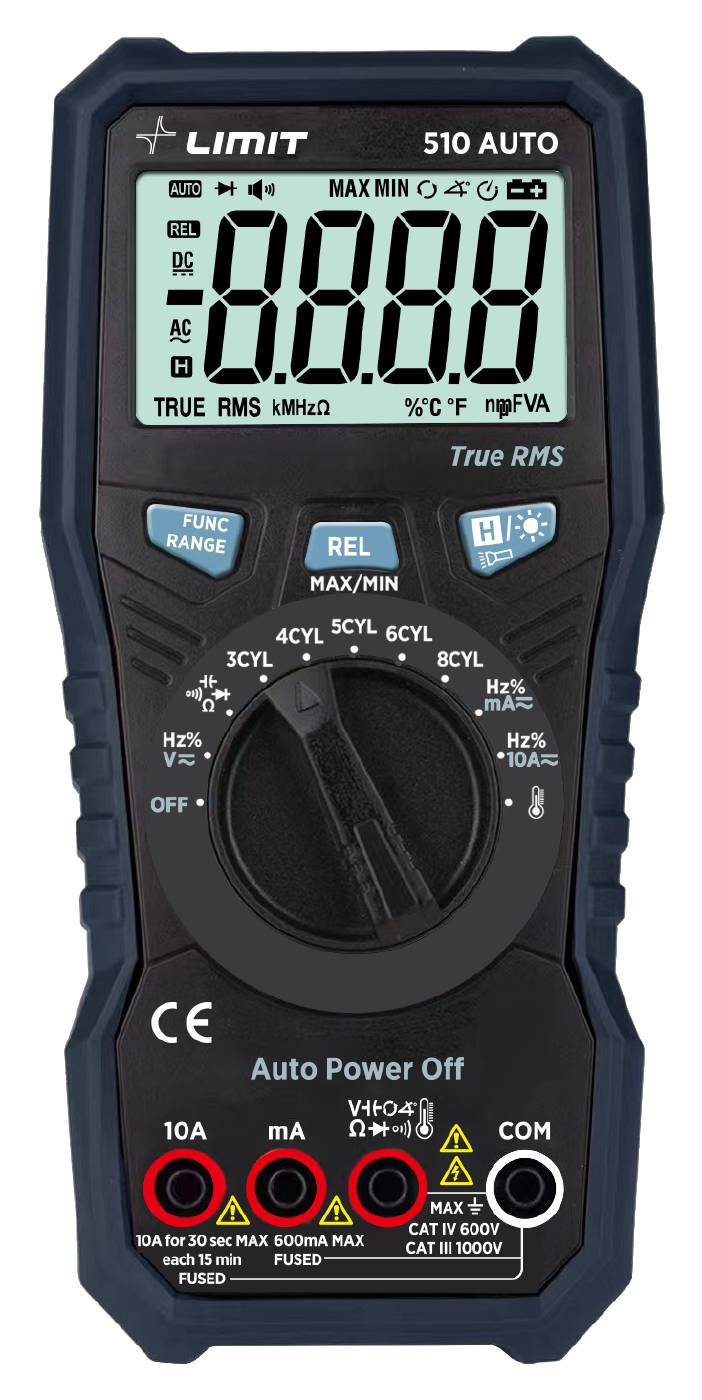

Limit Digital automotive multimeter. Suitable for cars, boats, motor mechanics.Limit DM 510 AUTO multimeter is a handheld true RMS digital multimeter with high reliability and security (6000 counts). Large backlit LCD display with 25mm digits for easy reading in the dark environments, overload protection and unique design makes it a highly practical digital multimeter. The meter can measure Dwell, Tachometer, AC/DC voltage/current, resistance, continuity, capacitance, frequency, °C/°F temperature and be used to test diodes, etc. Built in flashlight to help finding connections in dark places. Featuring data hold, Min, Max and relative measurement, low battery indication, auto power off, the meter is ideal for many applications. Rubber cover and fold-out table support. Insulation class CAT III 1000V and CAT IV 600V.
Common Characteristics
Operating temperature max./min.40/0 °CVoltage measurement range (AC) max./min. 750 V/ 6 V
Voltage accuracy/resolution (AC) ±(0.8%+3) - ±(1.0%+5)
Voltage measurement range (DC) max./min. 1000 V/600 mV
Voltage accuracy/resolution (DC) ±(0.5%+3) - ±(0.8%+3)
Current measurement range (AC), max./min. 10 A/60 µA
Current accuracy/resolution (AC) ±(1.5%+5) - ±(1%+10)
Current measurement range (DC), max./min. 10 A/60 µA
Current accuracy/resolution (DC) ±(0.8%+1) - ±(1%+10)
Resistance measurement range, max./min. 60 M?/600 ?
Resistance accuracy/resolution ± ±(0.8%+3) - ±(1.5%+10)
Frequency measurement range, max./min. 600 kHz / 10 Hz
Frequency accuracy/resolution ± (0.1% + 4)/0.01 Hz-0.01 MHz Hz
Capacitance measurement range, max./min. 100 mF/ 10 nF
Capacitance accuracy/resolution ±(0.1%+2)
Temperature measurement range, max./min. 1000 °C -20 °C
Temperature accuracy/resolution ±(2%+3) - ±(3%+3) °C
Weight 364 g
