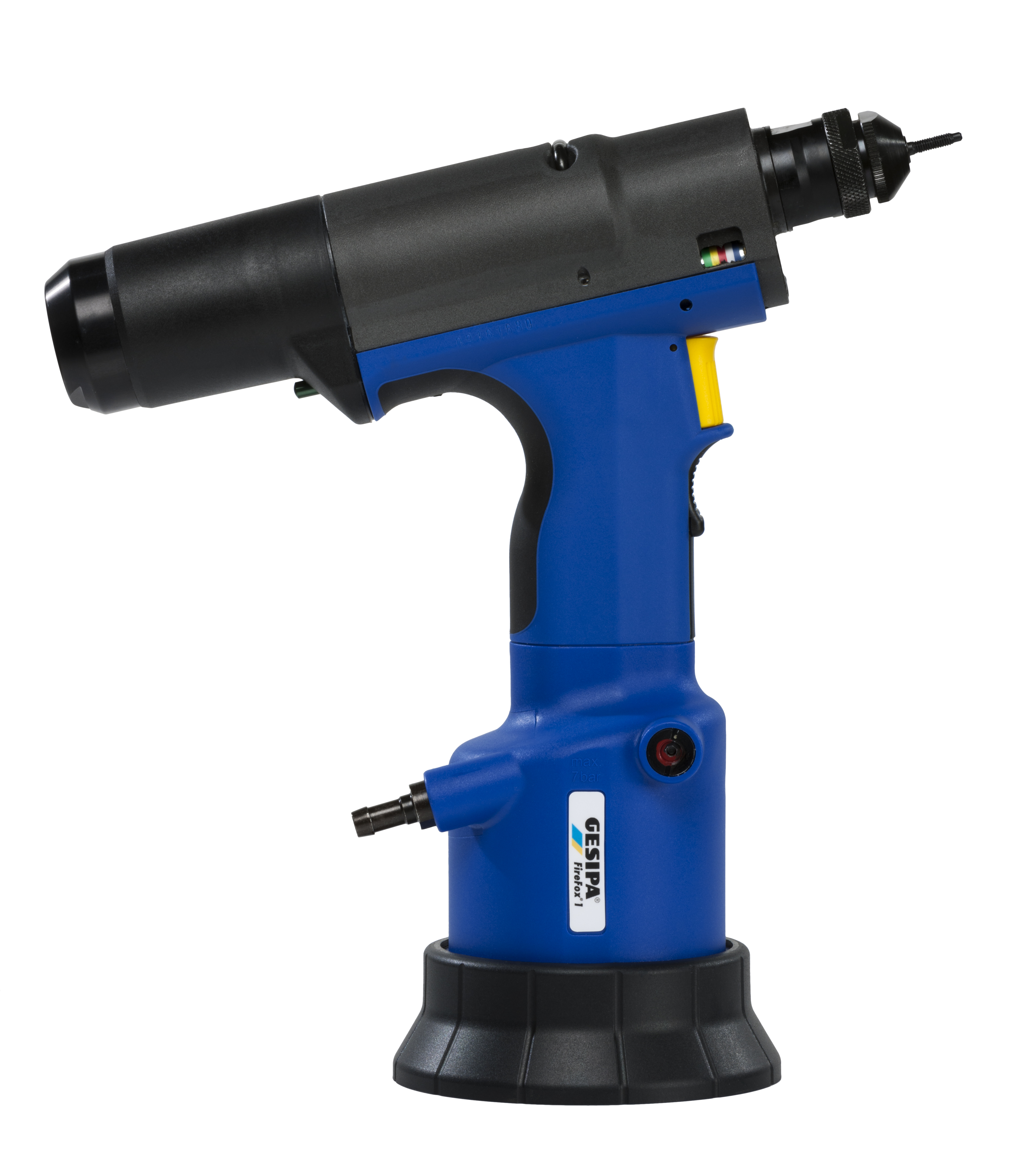

Pneumatic-hydraulic blind rivet nut setting tool FireFox 1F for blind rivet nuts from M5 for all materials as well as M6 for aluminium and steel.
Common Characteristics
The FireFox 1 F pneumatic-hydraulic blind rivet nut setting tool is easy to use, reliable and safe. It was developed so that even small blind rivet nuts can be installed perfectly without damaging the material to be joined. The FireFox 1 F is controlled solely by the setting force adjustment. With a pre-set setting force, this can be adjusted quickly and precisely by means of colour coding. The thread of the blind rivet nut is therefore optimally protected while ensuring the blind rivet nut is securely anchored in the material. The ergonomic design makes it easy to use the setting tool whilst avoiding fatigue. Its stability is ensured with a stable rubber foot. The blind rivet setting tool is equipped with a silencer and an improved riveting mechanism.
Equipment
Double open ended wrenches SW 24/27
4 threaded mandrels (M3, M4, M5, M6)
4 nosepieces (M3, M4, M5, M6)*
1 oil refill can with hydraulic oil 100 ml
1 oil refill can
Operating instructions with spare parts list
Quick setting guide
Warranty: 2 years
Technical Data
| Parameter | Value |
|---|
| Weight | 2.0
kg |
| Working range for all materials | M3-M5
mm |
| Working range alu | M3-M6
mm |
| Working range steel | M3-M6
mm |
| Air consumption | 1-2
l за гайка/нит |
| Air hose connection | 6
mm |
| Setting stroke | 12 000
N при 6 bar |
| Stroke | 7.5
mm |
| Operating pressure (min) | 5
bar |
| Operating pressure (max) | 7
bar |
