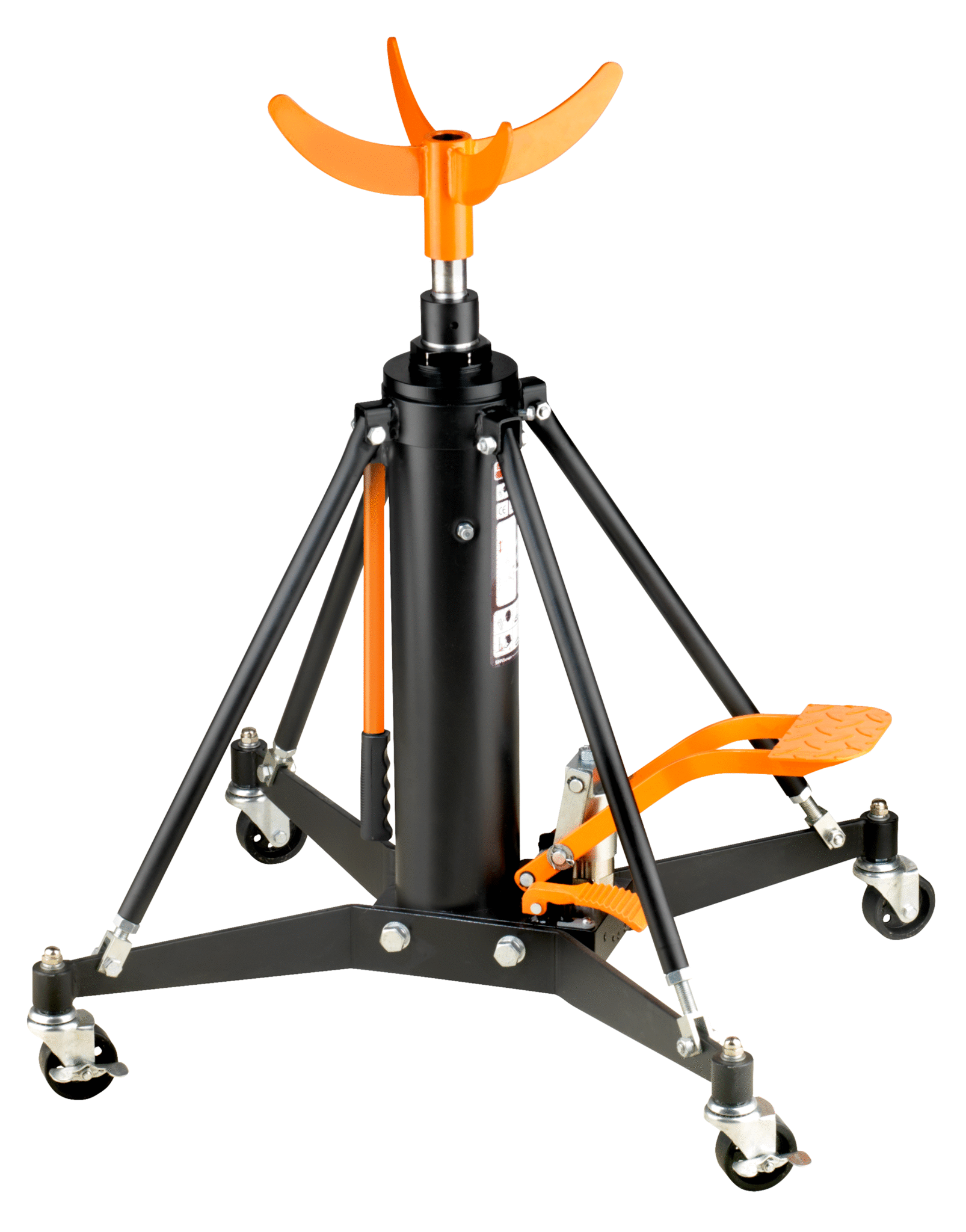

Hydraulic transmission jack double piston 1 T BAHCO BH5DP1000QA

Hydraulic transmission jack double piston with load capacity 1000 kg.
Common Characteristics
- 1000 kg transmission jack used in pits and beneath elevated vehicles, for safely removing, installing or transporting transmissions
- Quick approach system with double piston enables reaching the full height in only 36 pump strokes
- Hard chrome plated rod and pump piston

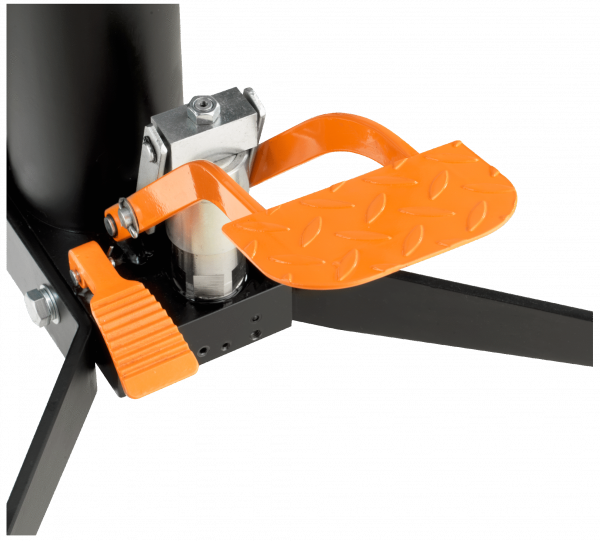

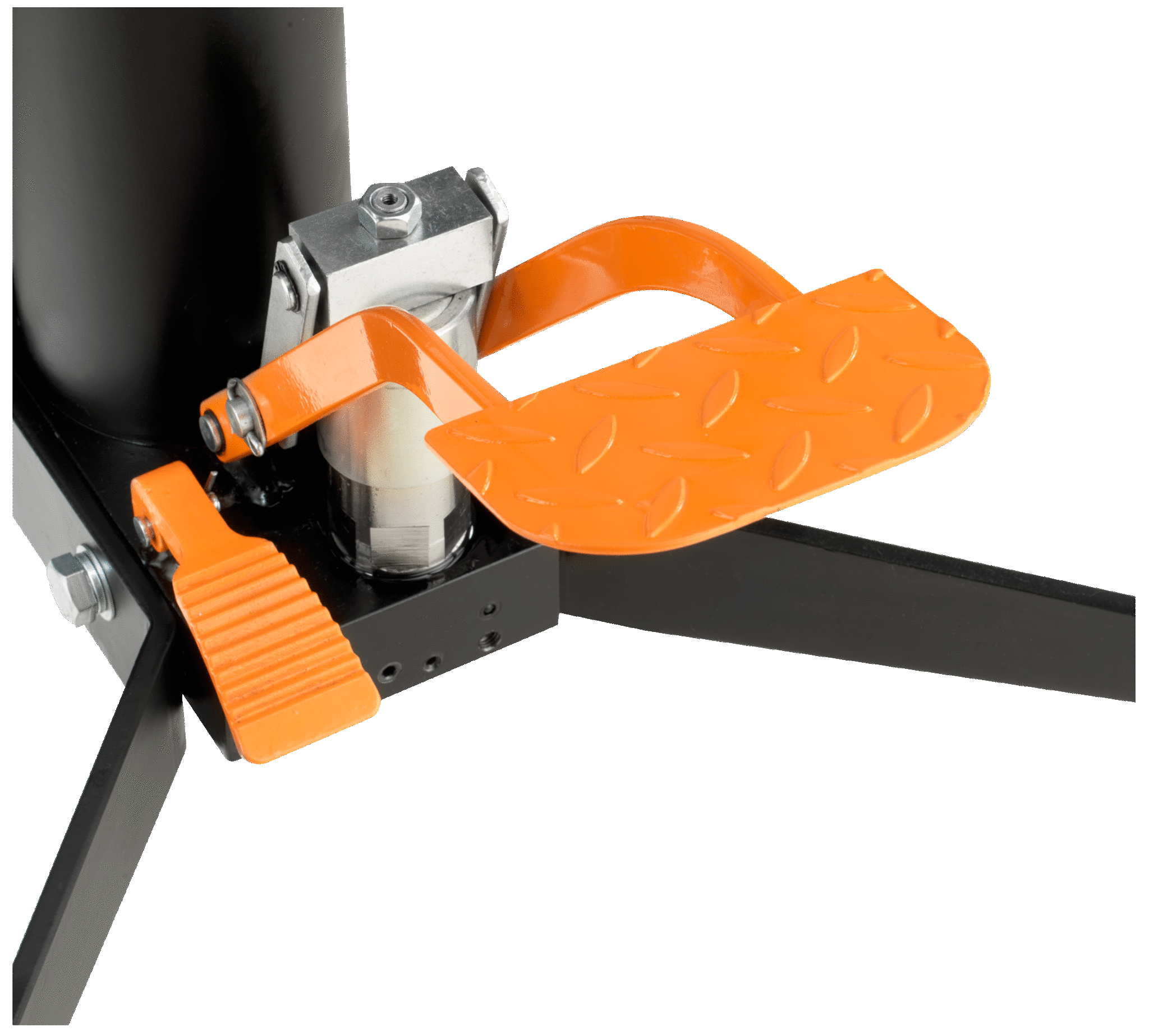

- Large and comfortable pedal for easy lifting from right or left side
- Wide base for high stability during lifting and manoeuvring

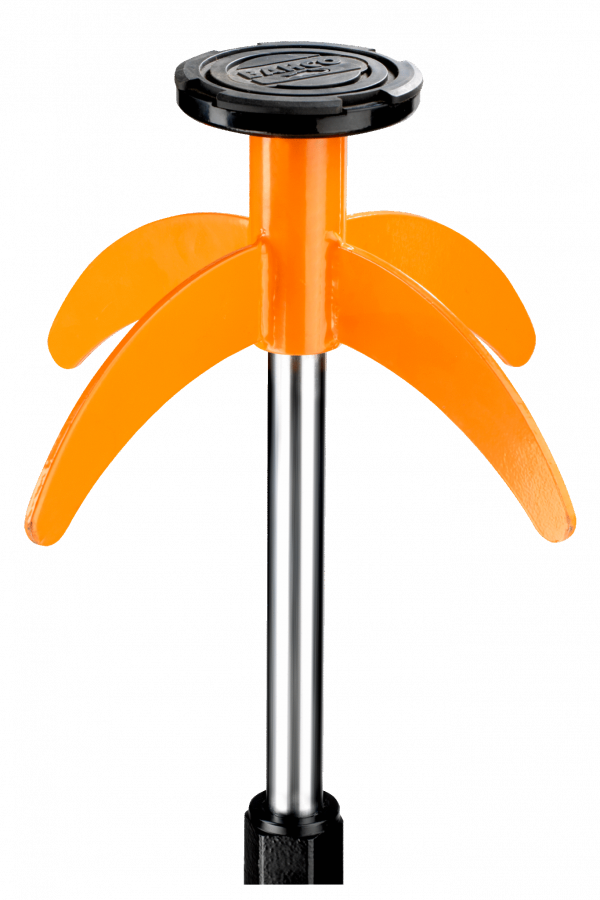

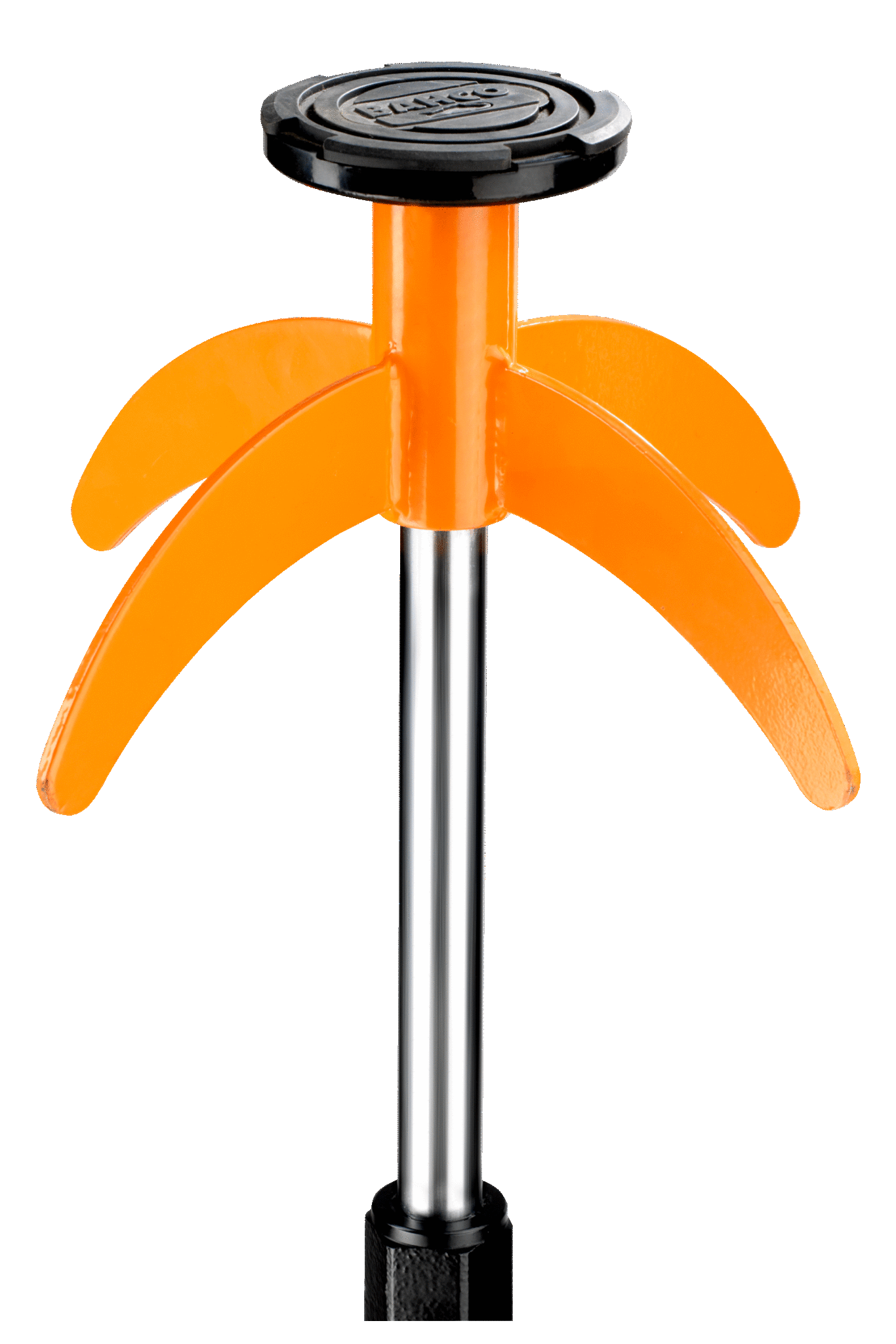

- Saddle can be positioned upside down and thanks to the addition of our standard rubber and steel saddles BH11500-04 and BH11500-05 (options), the transmission jack can be used also for lifting car components such exhaust pipes, fuel tanks, suspension springs or hubs when removing studs
- Lowering mechanism with a foot pedal allows the user to keep their hands free for other operations

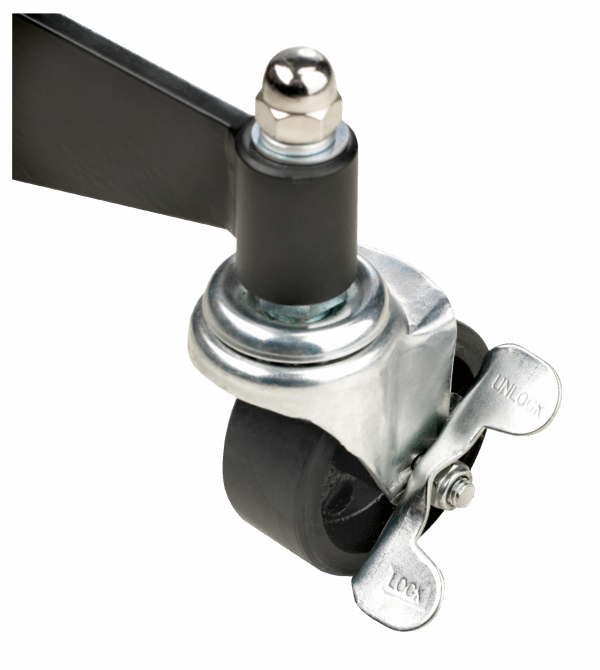

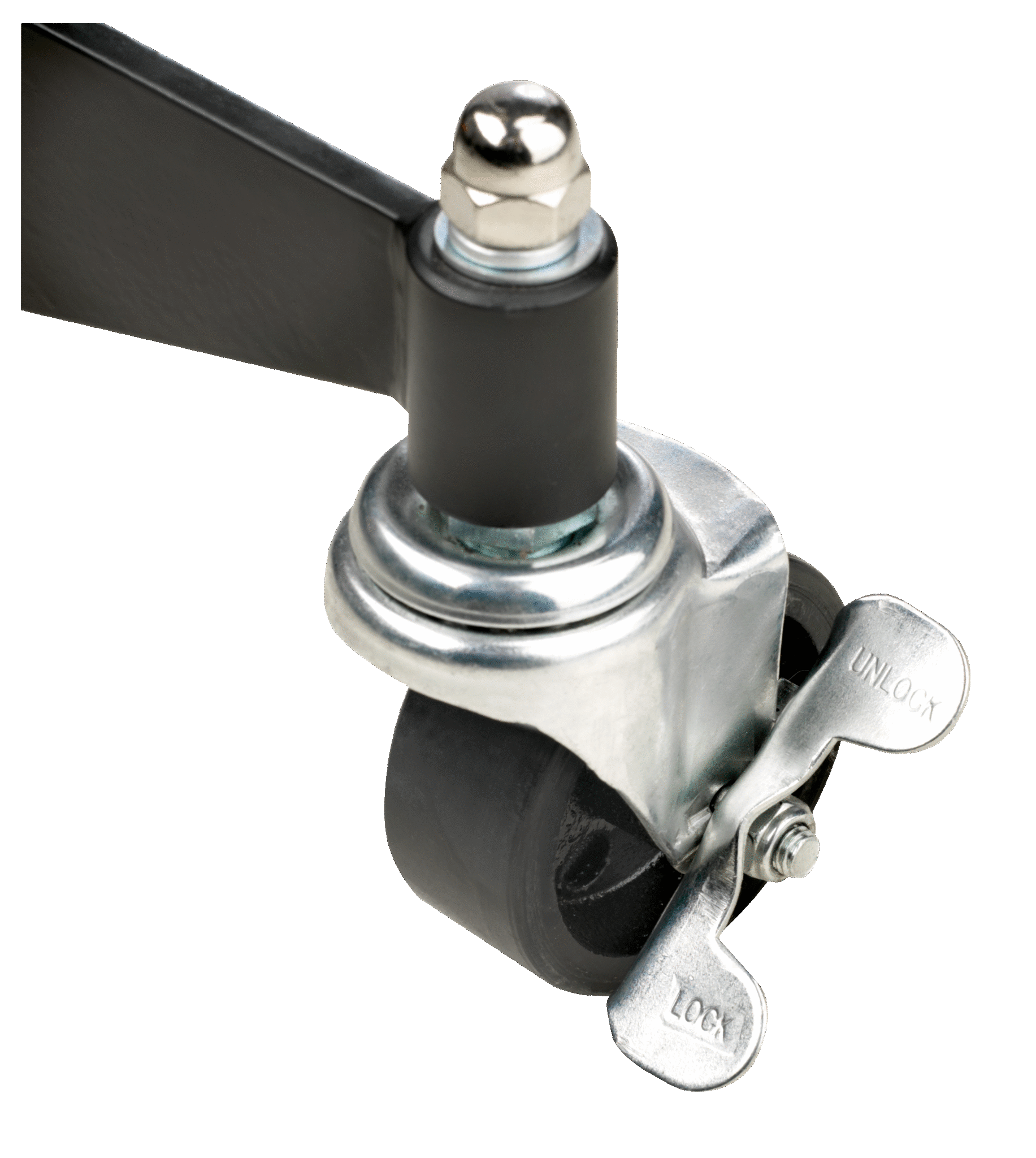

- Sturdy steel swivel castors (75 mm diameter) covered with PU for greater durability and optimal manoeuvrability
- Two castors are equipped with brakes to prevent movement while loading/unloading
- CE certified according to Directive 2006/42/EC and BS EN1494
Technical Data
Capacity1  T
Number of strokes36
Dimensions759x1444  mm
Minimum height1389  mm

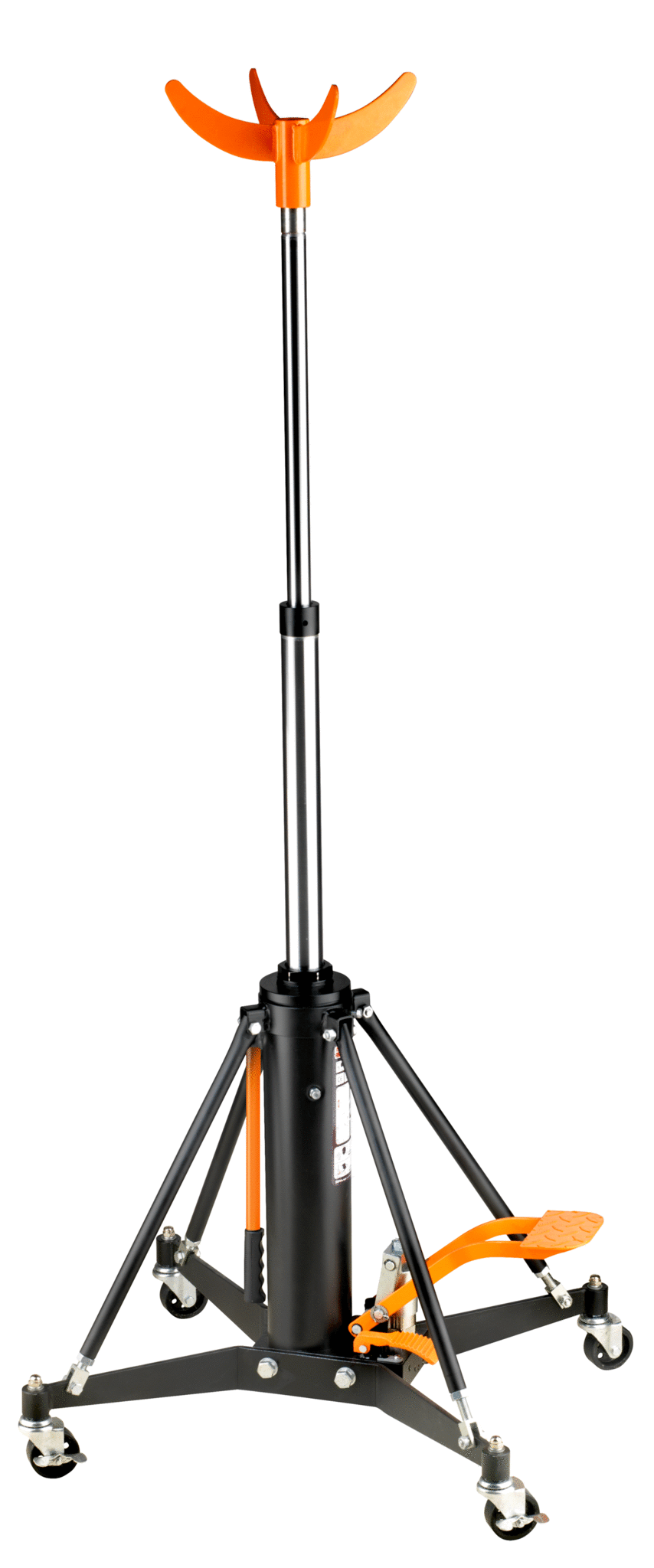

Maximum height1899  mm
Weight80  kg
