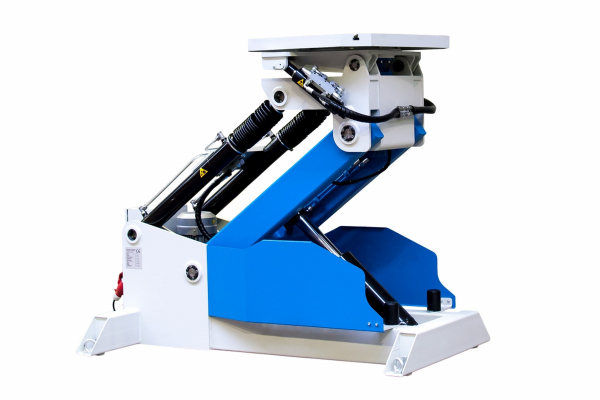

Dumeta 4-axis hydraulic elevating positioner DG
Common Characteristics
The 4-axis welding positioners allow optimal workpiece handling in all workshops because workpieces can be manoeuvred intobalmost every position.The 4th axis enables you to tilt the workpiece up to an 135° angle, even at the highest position, which creates excellent ergonomic conditions for welding jobs, assembling or maintenance work.The DG-series is available in 5 different models with a capacity from 2000 kg up to 15 tonnes.
Technical Data
| Parameter | Value |
|---|
| Motor power | 4+0.37
kW |
| Power supply | 400 50/60
V/Hz |
| Double foot pedal (start-stop/left-right) | Да
|
| Remote control (by wire) | Да
|
| Max. load | 2000
kg |
| Table | 800
mm |
| Rotation speed | 1.2-1.8
rpm |
| Tilting angle | 0-135
O |
| Max. welding current | 500
A |
| Tilting speed (up/down) | 18/12
sec |
