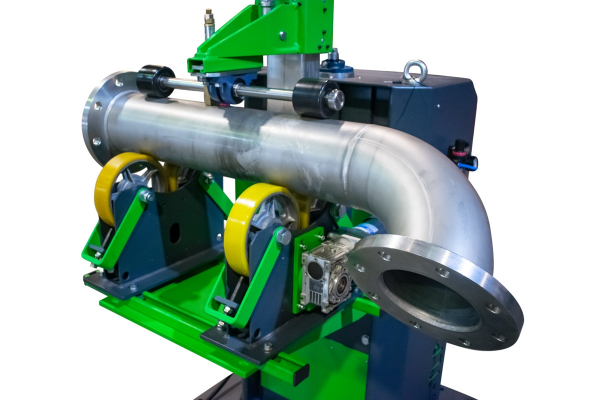

Pipe rotator for clamping, rotating and tilting Ф30 - 400 mm workpieces of up to 500 kg.
The stable and compact construction of the pipe tilting rotator D-TLPR-500 makes it possible to carry out numerous activities such as welding, cutting, grinding and many more. Moreover, the electrically adjustable top-role for clamping enables working under a tilt angle. The stable and compact construction of the pipe tilting rotator D-TLPR-500 makes it possible to carry out numerous activities such as welding, cutting, grinding and many more. This pipe tilting system is a very useful investment for every workshop in piping. Moreover, the pneumatic adjustable clamping rollers enables working under a tilt angle. The D-TLPR-500 comes standard with height adjustable wheels which help to create an ergonomic working level.
Pipe rotators of range D-TLPR-500 are used to clamp, rotate and tilt pipes which have round profiles during automatic and manual welding. They are very helpful in the field of pipe construction and central heating construction. Pipe rotator is very economical and ergonomic. A welder can easily weld with no interruptions and precise horizontal position of the pipe is maintained. Pipe tilting rotator can turn workpieces with adjustable frequency controlled speed.
• Motoric adjustable height
• Speed controlled foot pedal
• Stainless steel rollers
• capacity 500 kg
• clamping, turning and tilting
• 45° tilt angle left/right
• workpieces diameter 30 - 400 mm
• compact construction + PU rollers (max. 90°)
• height adjustment (manually)
• stepless speed control
• incl. foot pedal and control (by wire)
O mm |
|Double foot pedal (start-stop/left-right)||да
|Remote control (by wire)||5m
|Tilting angle||± 45
|Max. welding current||500
|Max. torque tilting||250
|Max temperature workpiece||90
