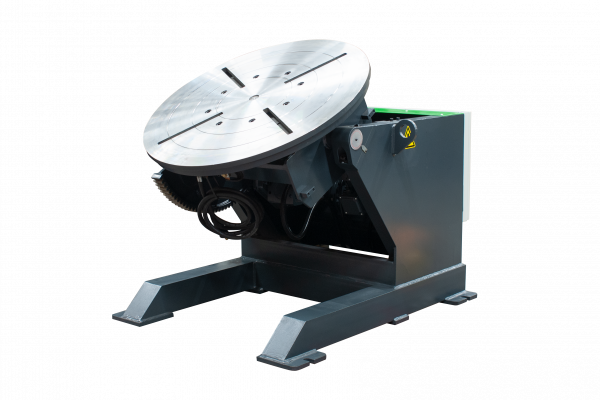

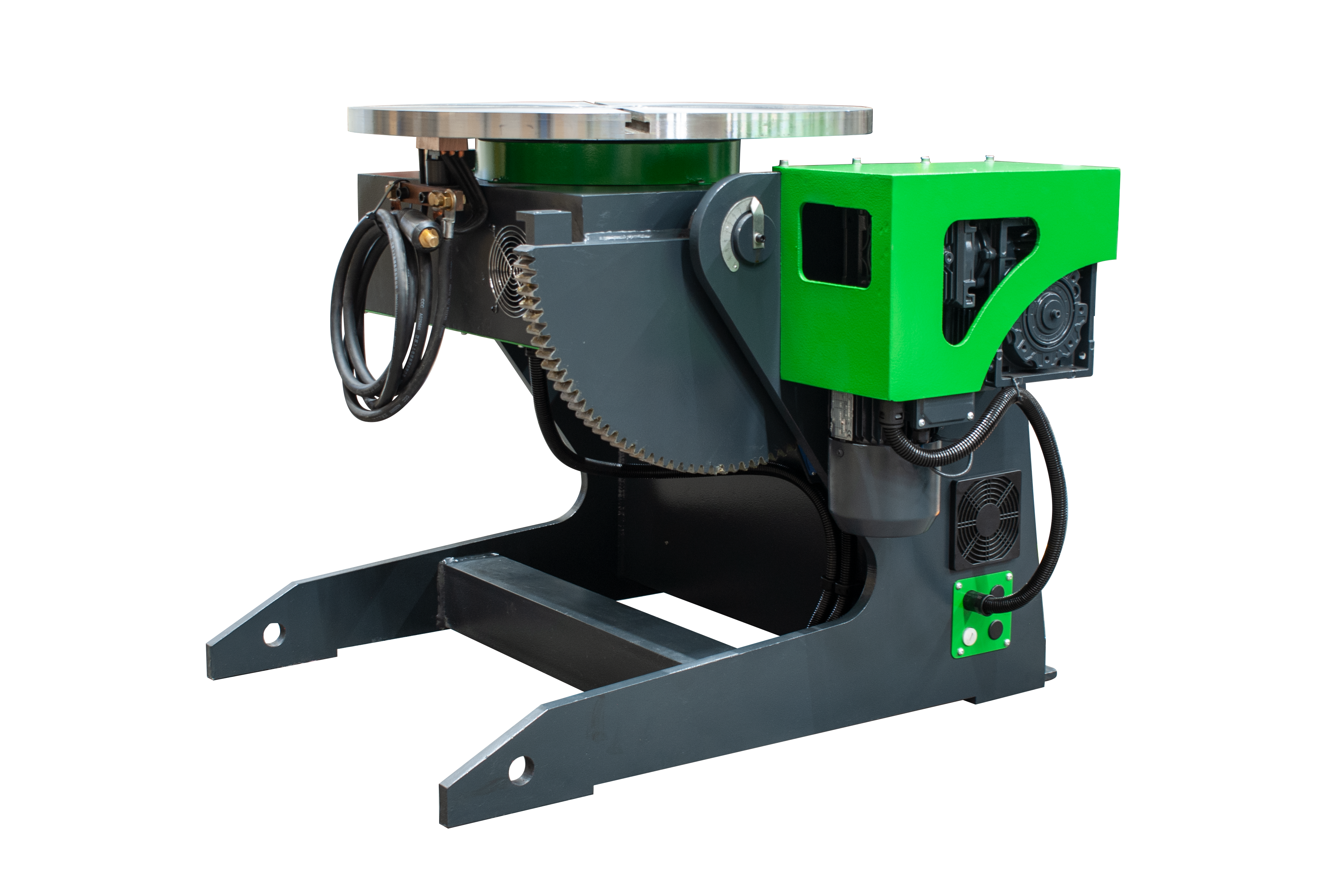

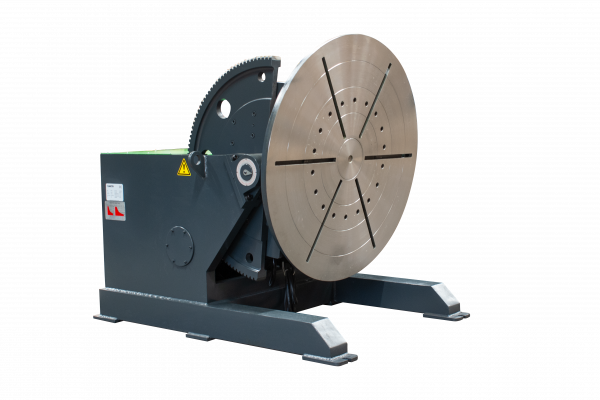

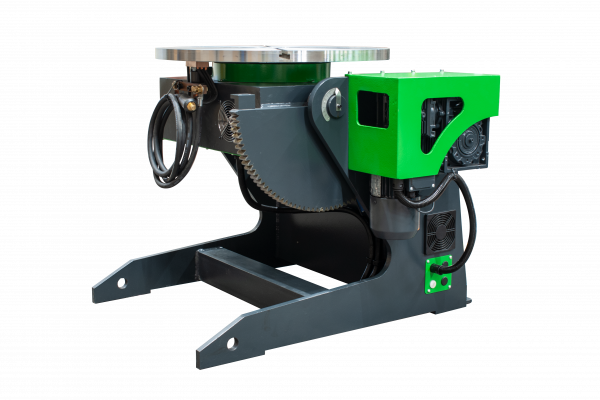

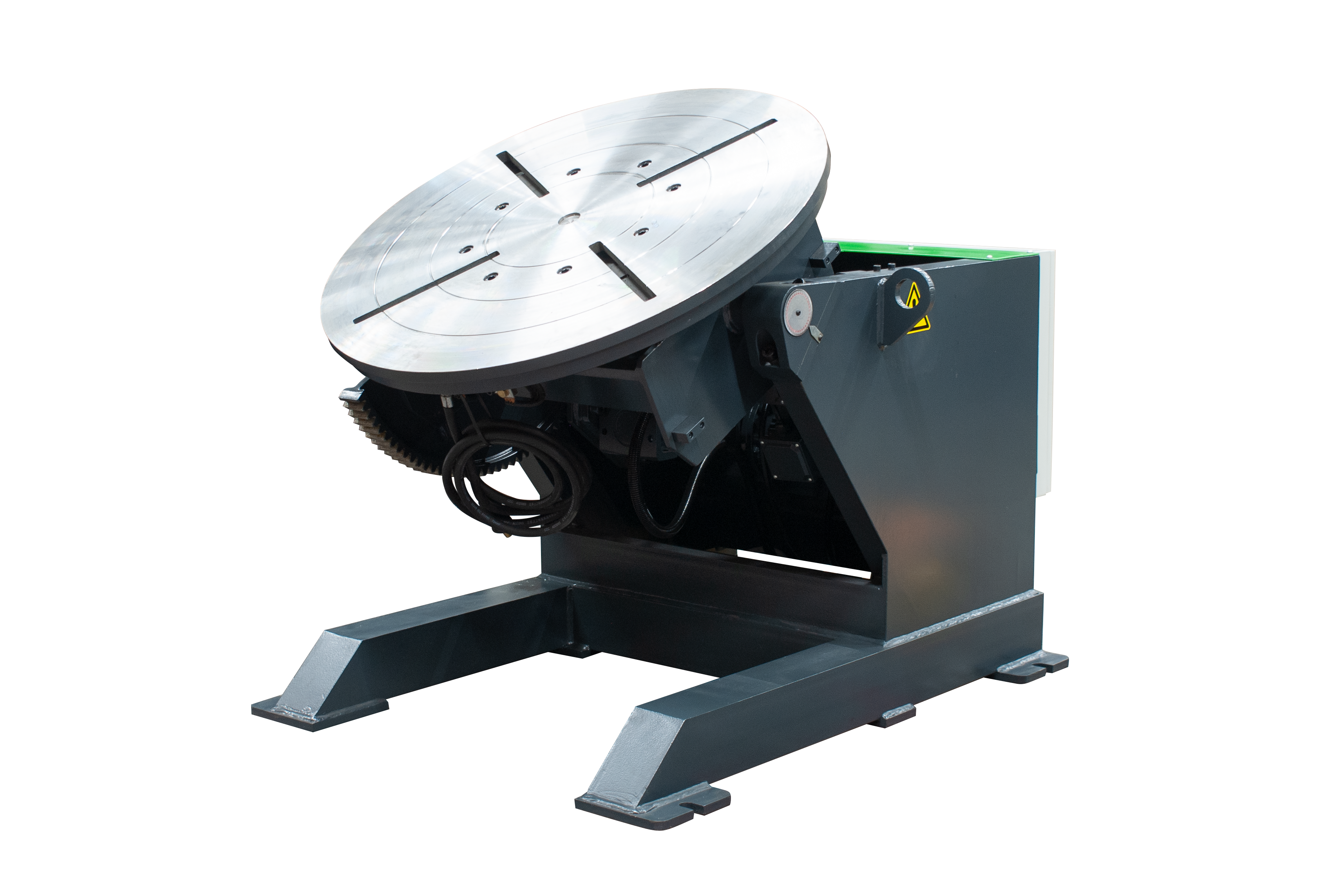

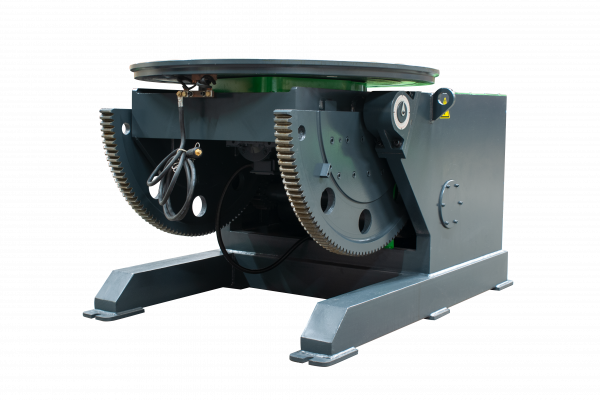

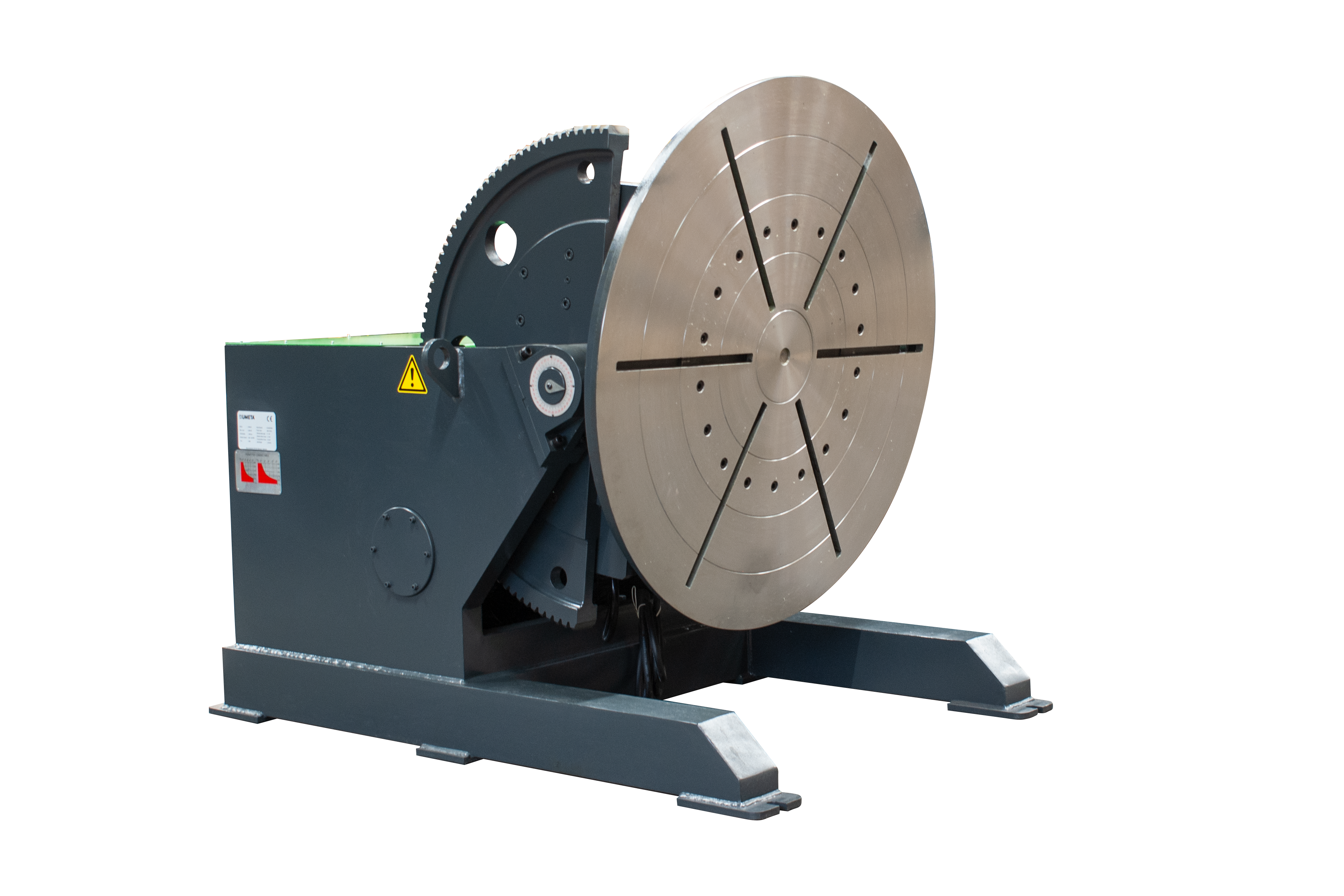

Heavy-duty positioners Dumeta D-HB series
Common Characteristics
Positioning and rotating your workpiece has never been that easy.The heavy duty positioners of Dumeta D-HB series will significantly reduce your workpiece handling time and enhance work safety. Due to the ideal working height workspace ergonomics are improved.These welding positioners enable the welder to rotate the workpiece at the most suitable speed.
Technical Data
| Parameter | Value |
|---|
| Power supply | 400 50/60
V/Hz |
| Double foot pedal (start-stop/left-right) | Да
|
| Remote control (by wire) | Да
|
| Max. load | 600
kg |
| Table | 700
mm |
| Rotation speed | 0.2-2
rpm |
| Tilting angle | 0-135
O |
| Max. centre gravity | 250
mm |
| Max. eccentricity | 150
mm |
| Max. torque table | 900
N/m |
| Max. torque tilting | 1500
N/m |
| Max. welding current | 500
A |
