Welding carriage PROMOTECH LIZARD

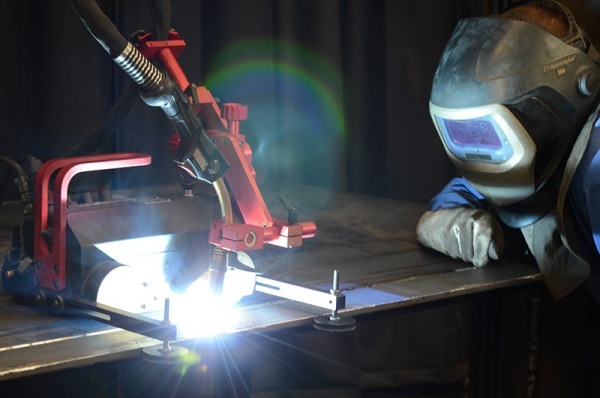

LIZARD - a portable, programmable welding carriage
Common Characteristics
Primary features and benefits:
Compact, lightweight design with durable aluminum cast housing
Convenient Power Supply 115-230 V 50/60 Hz
Positive magnetic traction permits out of position use
Magnet on/off lever permits easy set up and adjustment on work
piece
Maintenance free 4-wheel drive with worm gear reduction
Heat resistant silicone wheels
Quick clamping Torch Holder mechanism for different types of MIG/
MAG torches with diameters of 16-22 mm (5/8” – 7/8”); optionally
up to 35 mm (1-3/8”)
Precise torch adjustment with screw drive cross slide
Multifunctional LCD display and 2 function buttons for welding
pattern programming
Up to 40 complete programs may be stored in non-volatile memory
Closed loop speed control system stabilizes travel speed to reduce
weld defects and costly repair work
Consistent heat input reduces distortion
Reduced wasted filler metal – eliminates over welding
Automatic arc on/off system initiates welding and travel,
simultaneously
Capable of carrying and controlling 2 torches (without oscillation)
Self-guiding roller arms eliminate the need for track
Multi-surface guiding

Optional Pendulum Oscillator
The oscillator features precise
control of weave width, weave
speed and dwell times
Technical Data
ParameterValue
Voltage230  V
Power25  W
Min. radius of curved workpiece surface1500  mm
Minimun workpiece thickness5  mm
Horizontal speed0-120  cm/min
Vertical speed0-110  cm/min
Horizontal pulling force220  N
Vertical pulling force150  N
Cross slide adjustment0-35  mm
Torch diameter16-22  mm
Weight14  kg
