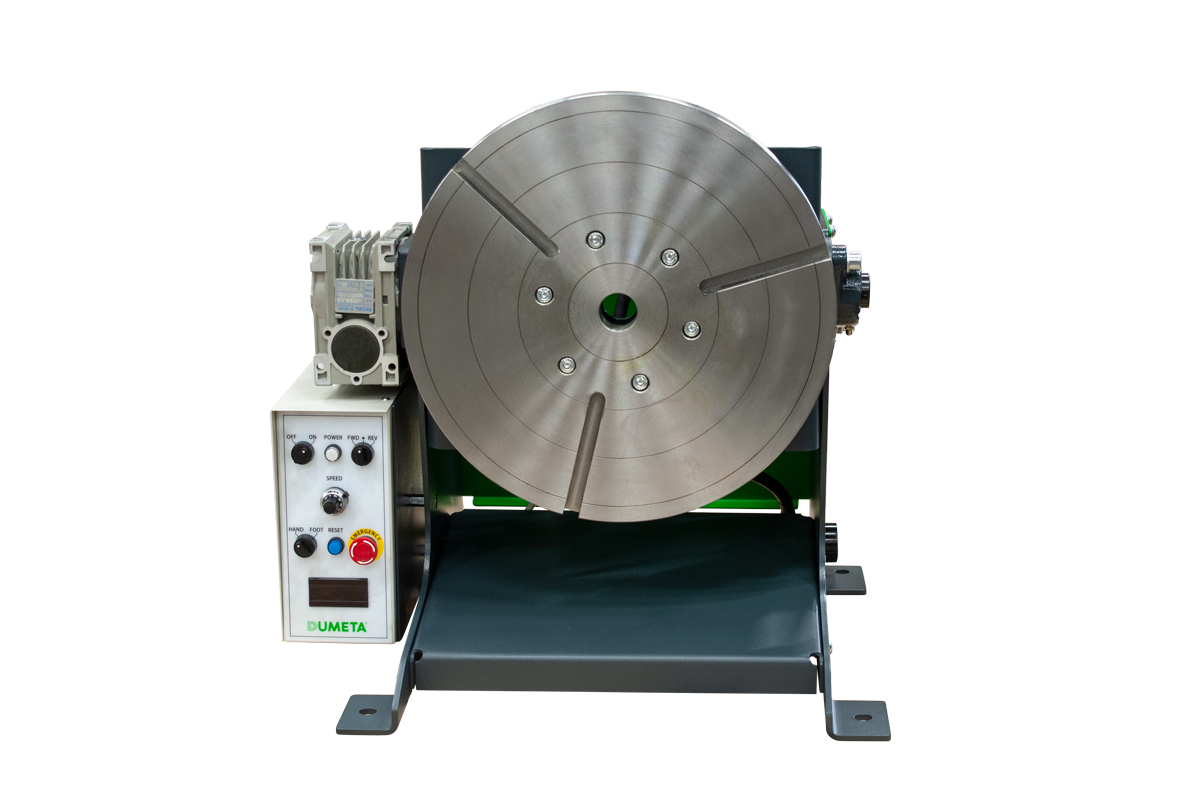

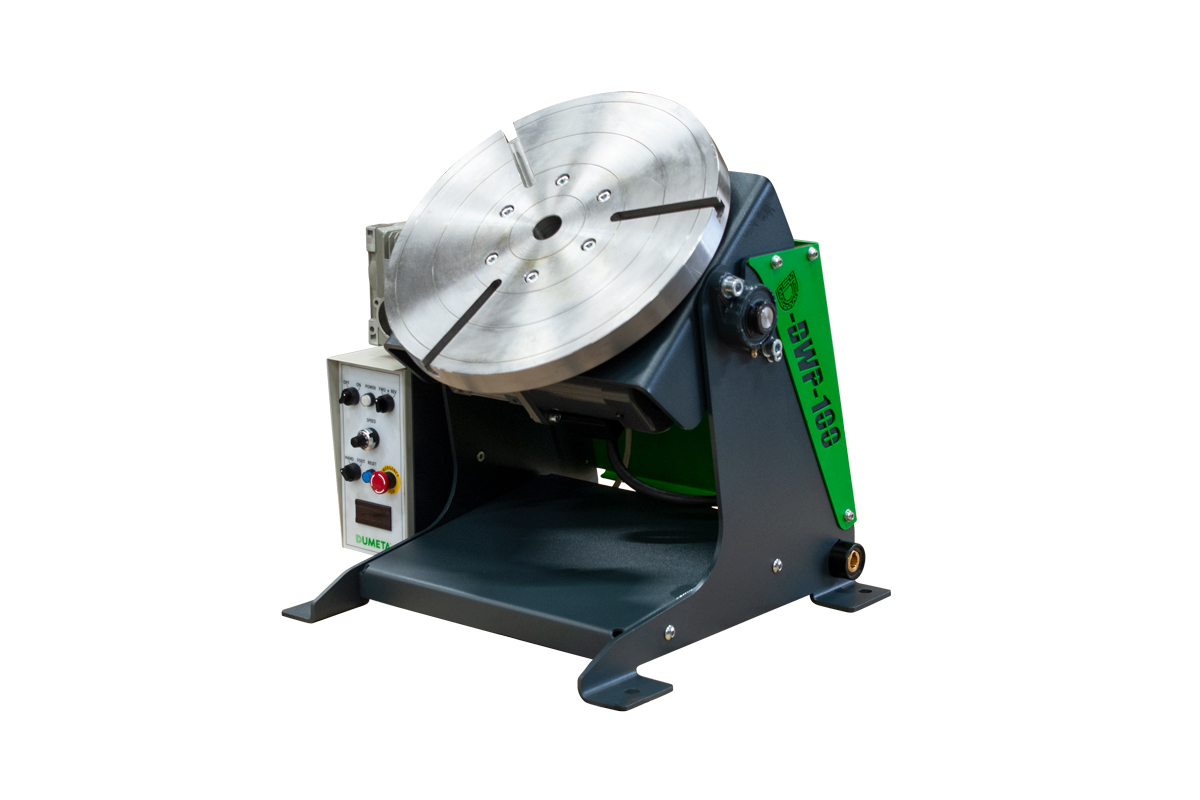

Welding positioner with spindle bore D-DWP
Common Characteristics
The D-DWP welding positioner is equipped with a spindle hole that allows the operator to use a filler gas. By using the welding positioners, production speed can be increased and product quality can be improved. The compact design will also reduce the normal use of your floor space.
Spindle hole
Compact design
Stepless speed adjustment
High stability thanks to robust construction
CE marking
Foot pedal
Technical Data
| Parameter | Value |
|---|
| Max. Load | 100
kg |
| Table | 350
mm |
| Tilt angle | 0-90
° |
| Passage | 30
mm |
| Rotation speed | 0.5-5
rpm |
| Max. distance center of gravity | 150
mm |
| Power supply | 230V, 50Hz
Hz |
