Welding robot Yaskawa Motoman MA 2010
Common Characteristics

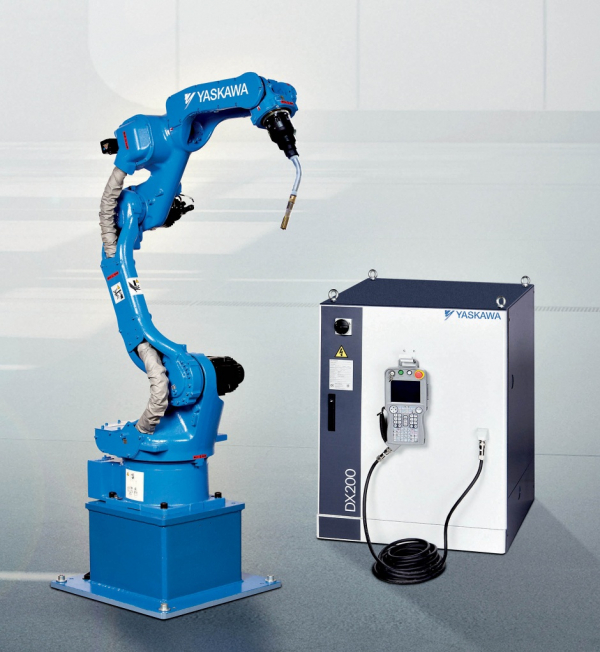

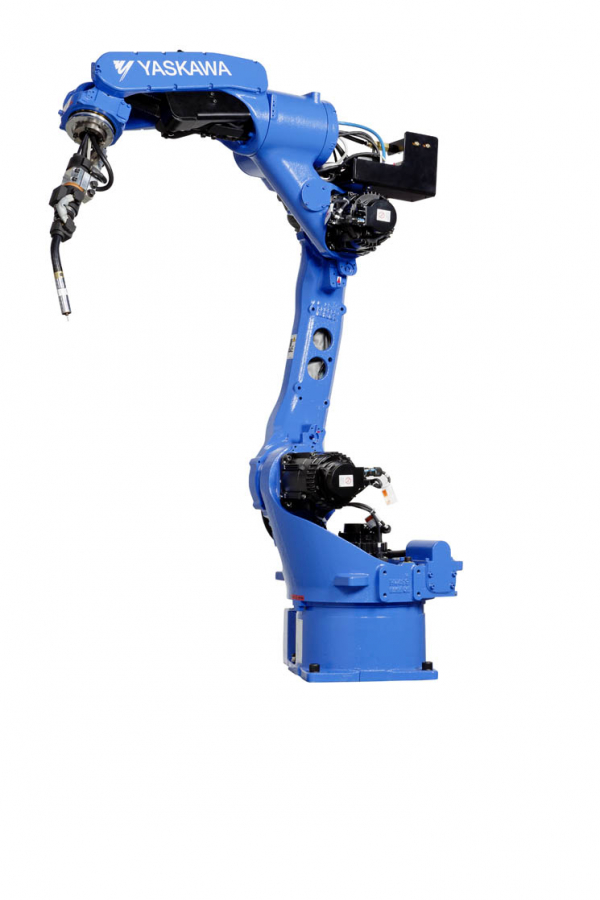

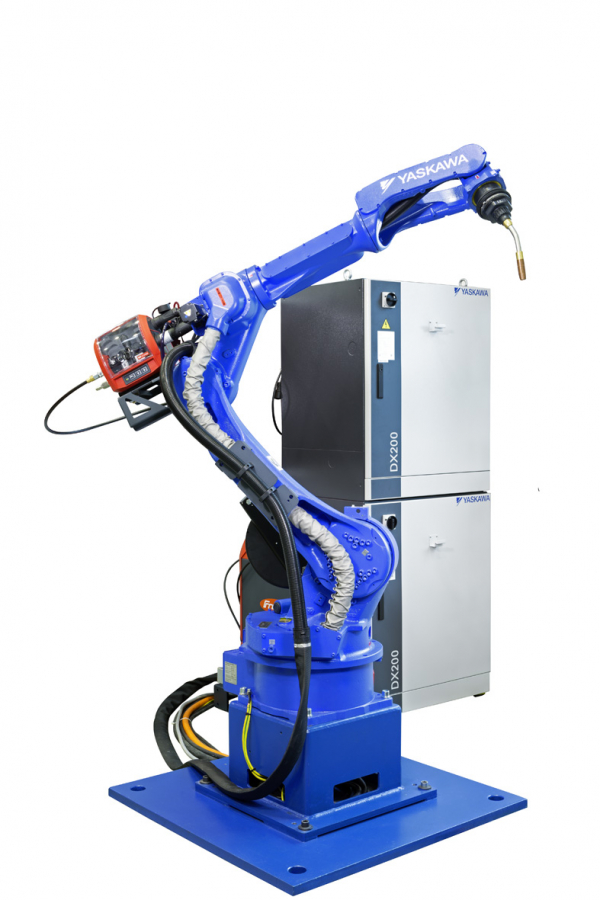

Robot Motoman MA 2010 is a representative of the latest generation robots managed by the DX200 control system. The robot is powered by the latest generation of YASKAWA ELECTRIC Sigma V servomotors, allowing the robot to move faster by 15%. The robot's top shoulder is a "fork" type. The last axis is a hollow wrist type. The use of this construction allows integration of the welding cable package into the robot's upper arm.

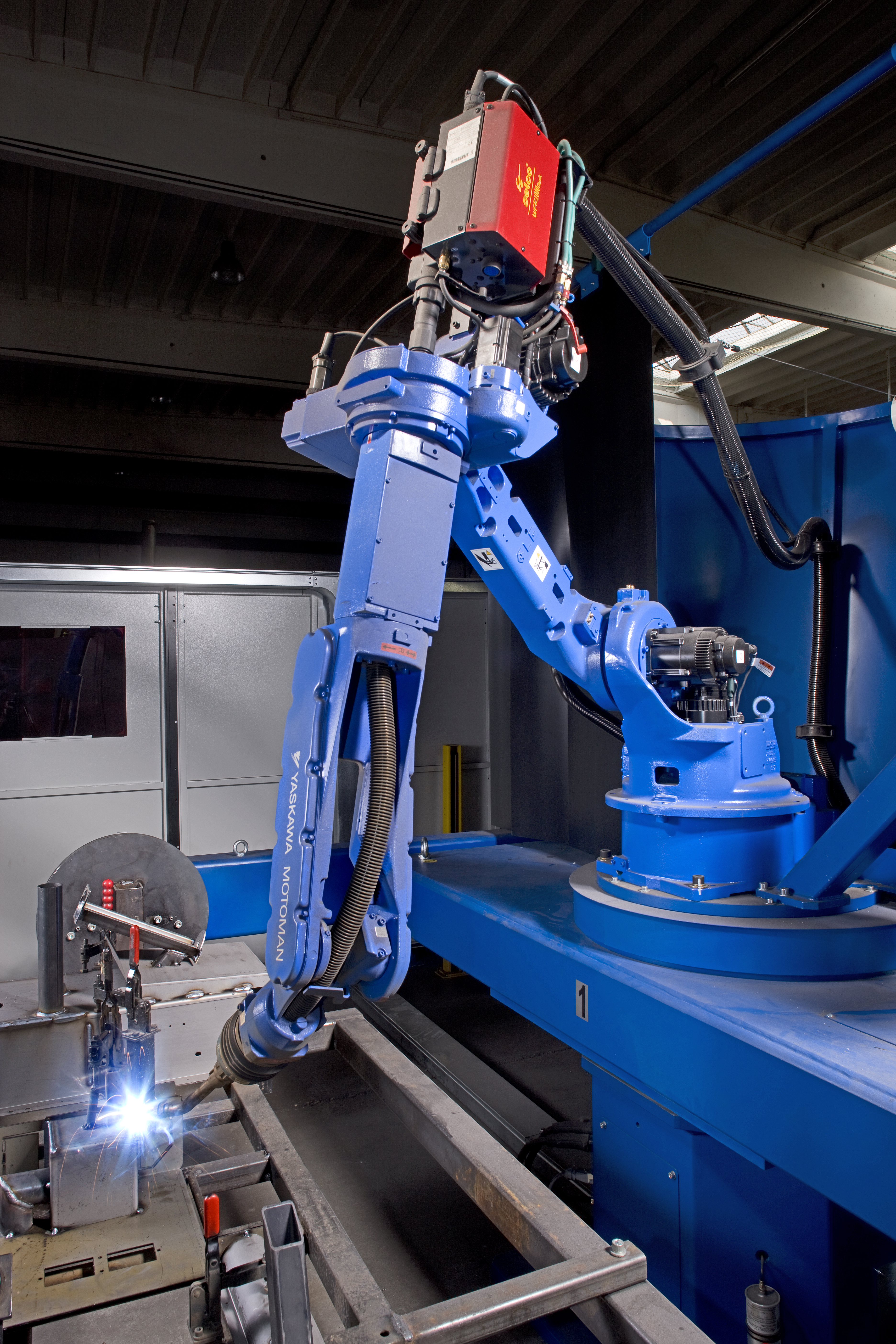

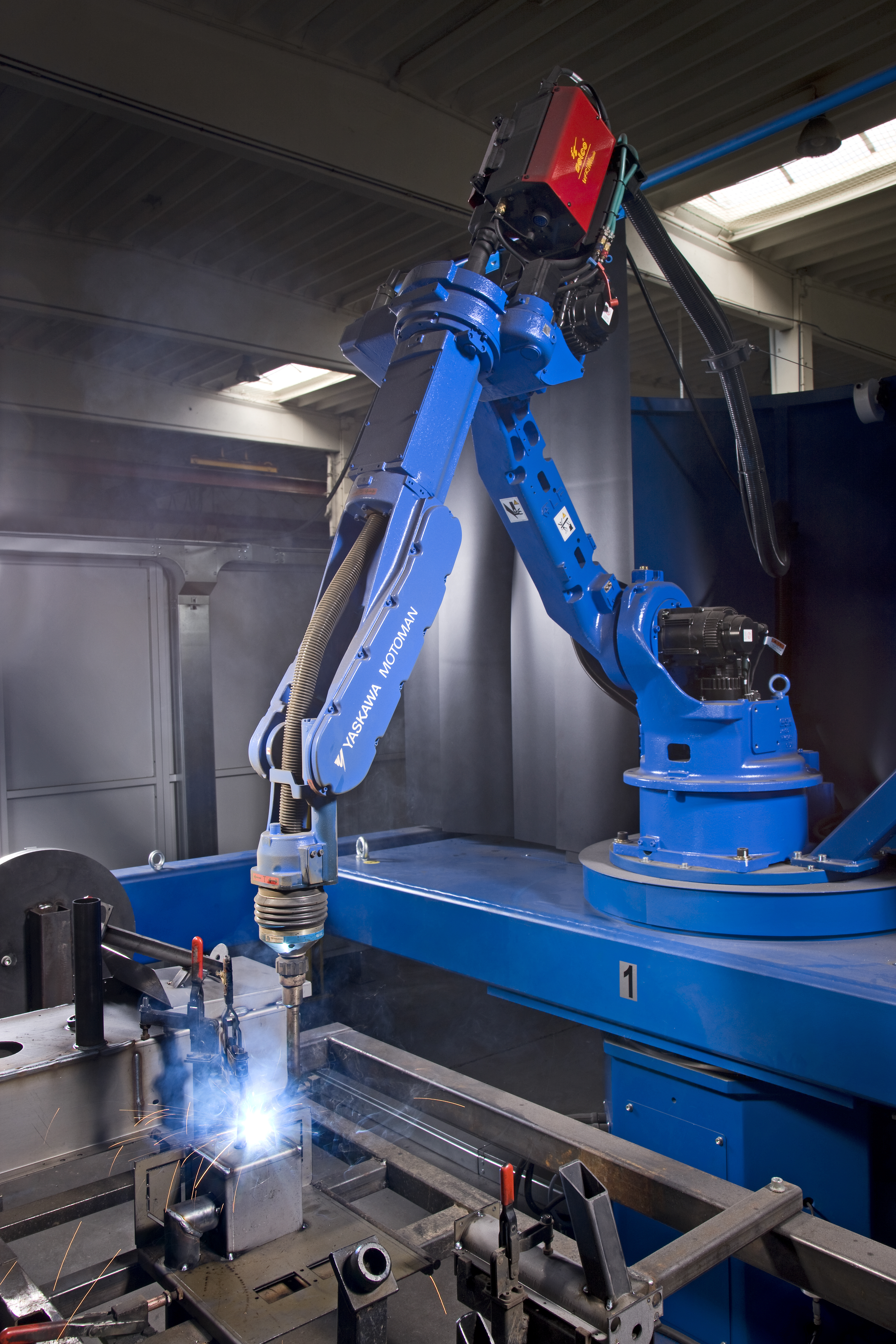

Slim, fast six-axis MA2010 welding robot increases productivity and achieves highest robotic welding performance. Large, 50 mm thru-hole for torch cabling, sensor wires and water cooling. Eliminates cable interference, simplifies programming and reduces cable wear.
Technical Data
| Parameter | Value |
|---|
| Controlled axes | 6
pcs |
| Payload | 10
kg |
| Maximum Horizontal/Vertical reach | 2010 / 3649
mm |
| Repeatability | 0.08
mm |
| Weight | 280
kg |
