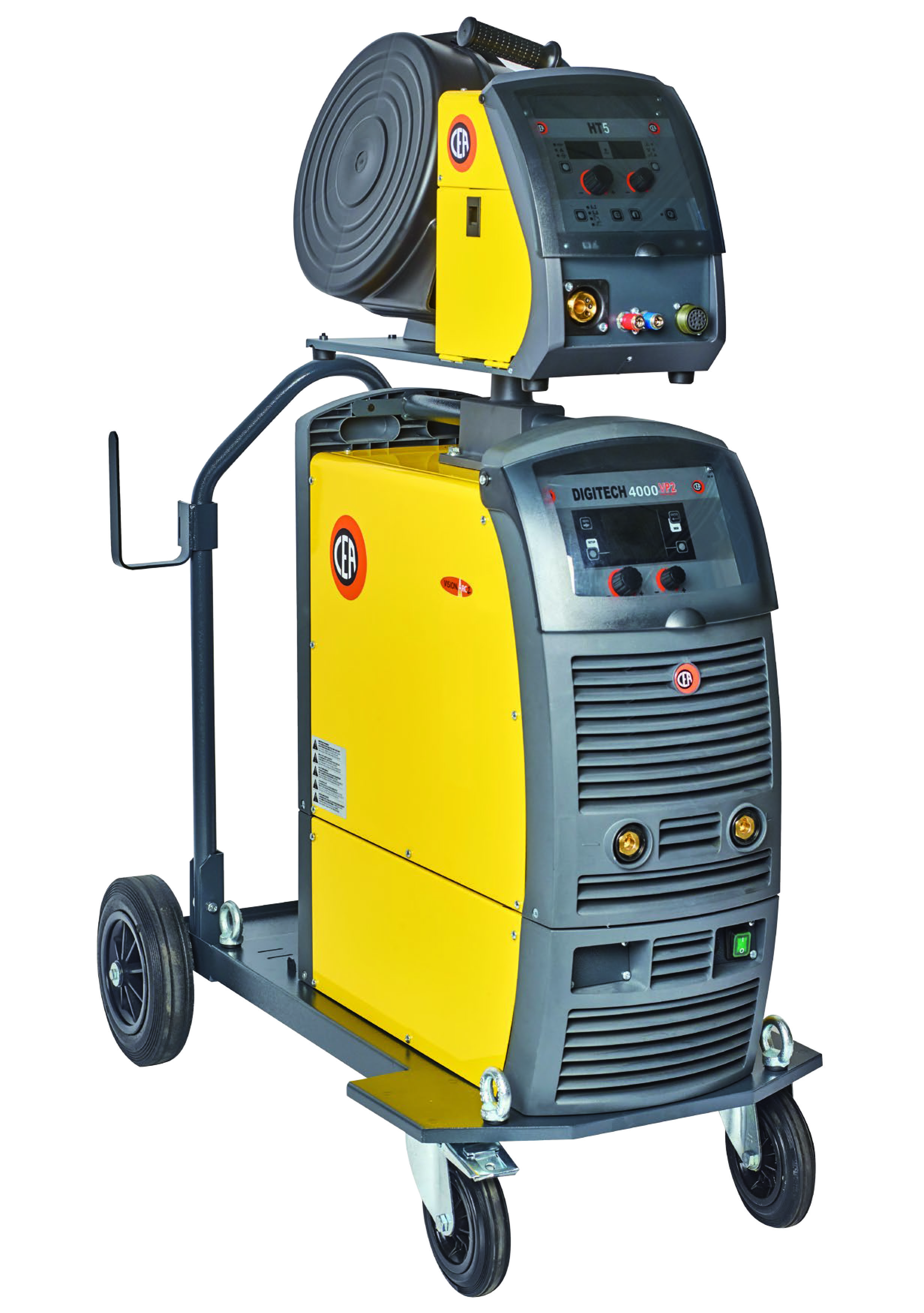

Power Source CEA DIGITECH 4000 VP2

All DIGITECH VP2 series machines are technologically advanced, robust and easy to use. They are equipped with the latest generation microprocessor and a new software vision for arc control vision.ARC2.
Common Characteristics
They are characterized by synergistic digital control, for automatic determination of the best welding parameters, according to the type of material, wire diameter and gas used.
CEA DIGITECH 4000 VP2 provides high quality welding in the following methods:
- REDZ
- TIG
- MIG / MAG
- Impulse MIG / MAG
- Pulse MIG / MAG with double pulse
Features:
• Control of welding parameters directly from the wire feeder.
• Digital control of welding parameters with synergistic curves, preset according to the type of material used, gas and wire diameter.
• LCD color display
• Ability to save up to 99 own programs.
• Smart "PROGRAM" button for quick selection of each program.
• "Energy saving" function, to activate the cooling fan only when necessary
• Ability to partially or completely lock the equipment with an access password
• Reduced energy consumption
• Automatic troubleshooting diagnostics.
• Robust main metal construction and protective cover of the wire feeder.
• Control of the beginning of the seam and the filling of the crater.
• Automatic compensation of fluctuations of the mains supply voltage within + 20% / -20%
• Possibility to adjust the parameters directly from the Up / Down burner, as an option.
• VRD function - to reduce the voltage in an open circuit below 12V.
• Professional four-roll wire feeder, with a large diameter of the rollers, for precise and constant movement of the wire
• Rollers with two channels, for easy replacement without tools
Functions:
vision.ARC2 - the latest feature of the arc control software, to achieve a more perfect and stable arc, along with superior correction in pulse control. ARC2 allows the control of the power source to work in a very precise and fast way, which provides a constant arc and perfect droplet separation, especially in pulsed MIG / MAG welding and double pulse.
Technical Data
ParameterValue
Input Voltage 50/60 Hz400  V
Input Power @ I2 Max25.5  kVA
Power Factor / cos ф0.65/0.99
Efficiency Degree0.85
Open circuit voltage70  V
Current range10-400  A
Duty cycle at (40°C) 100%350  A
Duty cycle at (40°C) 60%400  A
Protection Class23  IP
Dimensions660x290x515  mm
Weight40  kg
