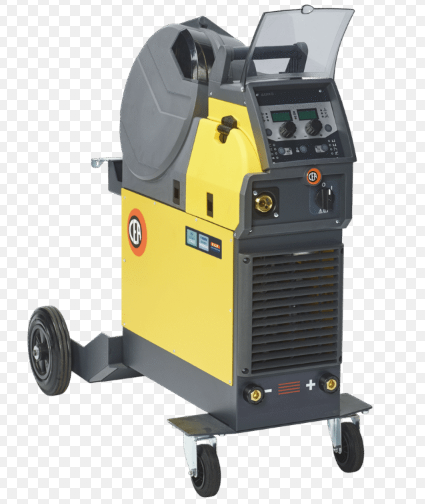

MOBILE 306 PULSE XV is CEA’s latest inverter power source model; it is compact—comparable in size to a wire feeder—yet powerful and delivers high-quality welding performance.
Common Characteristics
Suitable for welding structural steels, stainless steels, and aluminum. Ideal for both production and repair applications.
Supports the following welding methods:
•MIG
• MIG Pulse
• MIG Double Pulse
• MMA (Stick
• TIG Lift (contact arc ignitio)
Advantages of the MOBILE 306 PULSE XV:
Digital control with synergic curves for managing welding parameters (requires setting only the material type, wire diameter, and gas mixture).
X Vision LCD display with "TWO CLICK KNOB" encoders.
Easy selection and recall of synergic curves and welding programs.
Ability to save up to 99 custom programs.
Built-in polarity switching module for gasless self-shielded wire welding.
Protective cover for the control panel.
Compatible with 300 mm diameter wire spools.
Professional 4-roll wire feed mechanism (37 mm roll diameter).
Upgradable with a water cooling unit and trolley.
VRD function.
"Energy saving" function: the power source cooling fan operates only when necessary.
Start and end crater control.
Compatibility with Up/Down torches and digital torches with displays.
Ption to partially or fully lock the equipment using a password-protected access key.
LED light in the wire-feed compartment.
Integrated special functions:
vision.COLD – an innovative low-heat-input MIG/MAG process developed by CEA for welding thin-gauge and coated materials, as well as for brazing in all welding positions.
Vision.ULTRASPEED – an innovative MIG/MAG process developed by CEA for welding steel and non-ferrous metals; thanks to higher arc concentration, it enables significantly increased welding speeds.
Vision.ULTRASPEED allows for the replacement of short-arc and mixed-arc MIG/MAG processes, resulting in a remarkable increase in productivity and reduced deformation.
The set includes:
-
- MOBILE 306 PULSE XV 400V
- Water cooler HRX 52 400
Trolley CT 401 for power source and bottle
- MIG/MAG torch DINSE DIX MZ 304.Plus-4 SAZ, 4m water
- Ground cable with clamp 35 mm2, 4m, TX50
