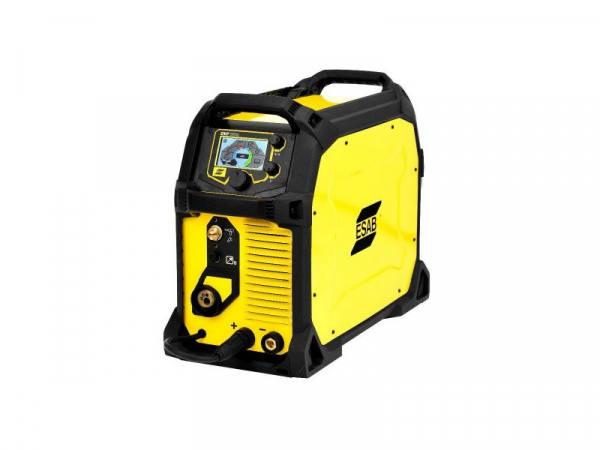

Welding Machine ESAB Rebel EMP 235ic - MIG/MMA/TIG
Common Characteristics
True Multi-Process – excellent performance on MIG/MAG, TIG and MMA. Extremely user friendly and multilingual TFT-panel incorporating spare part lists and weld parameter guides for all processes. Unmatched Portability – weighing in at 28,6 kg with dual voltage capability and 4 handle roll cage. Power to Perform – capable of running any wire from 0,6 mm to 1,0 mm and also cored wires up to 1,2 mm on both 200 and 300 mm spools. Full MMA performance with electrodes up to 4 mm and excellent Lift TIG performance with adjustable pre/post gas flow and weld current ramp up/down.
Technical Data
| Parameter | Value |
|---|
| Mains supply | 230/1
V/Ph |
| Maximum welding current | 250
A |
| Maximum output 25% duty cycle, MIG/MAG | 230
A |
| Maximum output 40% duty cycle, MIG/MAG | 195
A |
| Maximum output 60% duty cycle, MIG/MAG | 170
A |
| Maximum output 25% duty cycle, MMA | 210
A |
| Maximum output 60% duty cycle, MMA | 150
A |
| Maximum output 40% duty cycle, TIG | 235
A |
| Maximum output 60% duty cycle, TIG | 200
A |
| Enclosure class | IP23S
|
| Dimensions, LxWxH | 686x292x495
mm x mm x mm |
| Weight | 28.6
kg |
| Usable wire diameters | .
mm |
| Mild steels | 0.6-1.0
mm |
| Stainless steels | 0.8-1.0
mm |
| Cored wires | 0.8-1.2
mm |
| Aluminium | 0.8-1.2
mm |
