Air operated spot welding guns CEA X-GUN 28

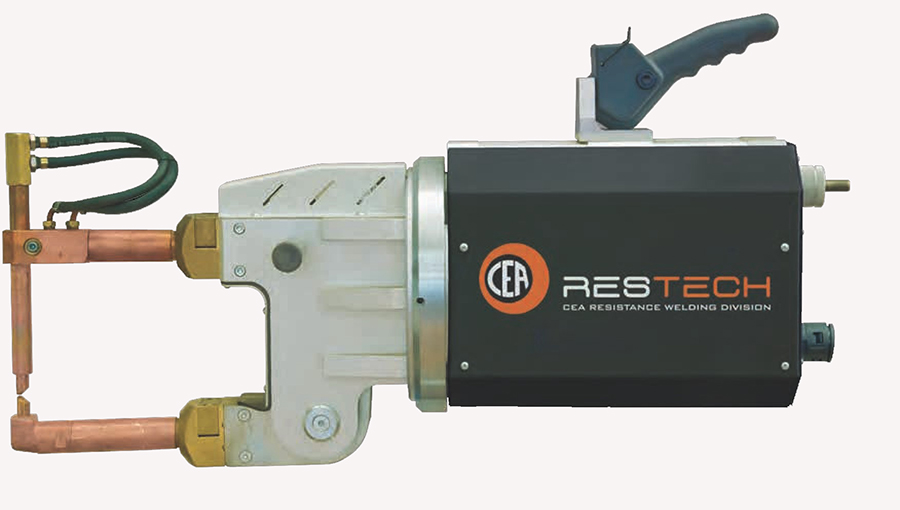

X-GUN pneumatic operated suspended guns with a wide selection of arms.
Common Characteristics

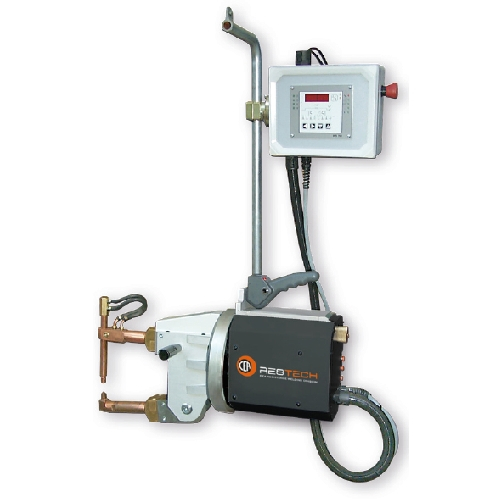

X-GUN pneumatic operated suspended guns with a wide selection of arms, user friendly detached control cabinet and reduced weight to ensure high productivity in the toughest industrial applications. The available 8 programs of the WS 708 welding control must be activated and can be used from the keyboard panel directly (internal mode), whilst only program 1 and 2 can be also retrieved from the handle switch selector (external mode). Gyroscope suspension on sealed bearings for easy gun rotation and manoeuvrability in any position. Adjustable working stroke and temporary extra stroke to easily reach workpiece areas also getting over obstacles.

• Single phase supply voltage:400 V
• Rated power 28 kVA (X-Gun 28)
• Control cabinet, safely away from the working area, incorporating WS708 welding control, cycle stop emergency button, synchronous ignition SCR group and circuit breaker with residual current device (30mA) for the operator’s safety
• Ergonomic handle fitted with operation cycle start push button, program 1 and 2 selector switch and temporary extra stroke push button
• Additional handle to only hold the machine from right or left side
• Water-cooled welding transformer
• Water cooled copper arms, electrode-holders and electrodes
• Different length (200,300,400,500,600mm) straight arms as option 1
• Different length (200,300,400,500,600mm) angled arms as option 2
Technical Data
Single phase input50/60 Hz400  V
Nominal maximum power28  kVA
Max. welding power88  kVA
Installed power25  kVA
Fuse(delayed action)40  A
Secondary voltage5.8  V
Secondary short circuit current19  kA
Max.welding current15.2  kA
Electrode force at 600kPa (6bar)230  daN
Water consumption at 300kPa(3bar)4  l/min
Dimensions650x250x425  mm
Weight53  kg
