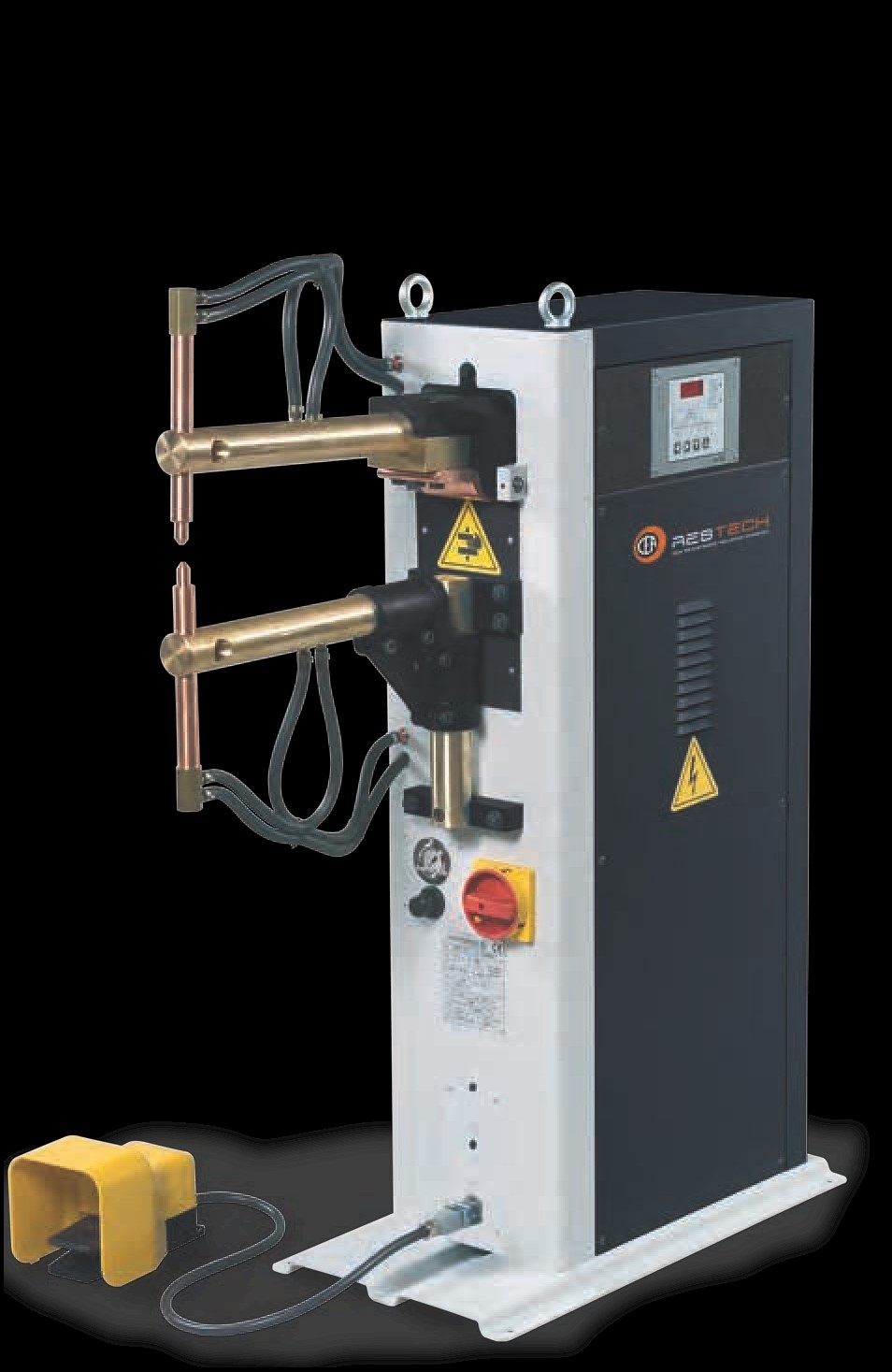

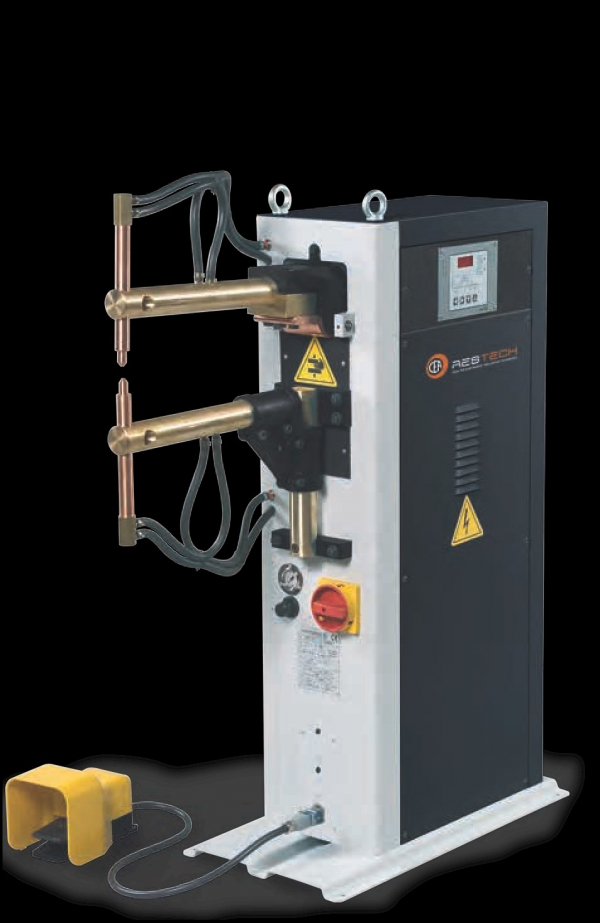

Resistance welding machine CEA KP 48

KP series resistance spot welders.
Common Characteristics
K-KP series resistance spot welders, versatile, robust and easy-to-use, ensure best welding results on any weldable metal and are the most ideal solution for all spot welding applications. K-KP models are supplied either mechanical or air operated:
KP is pneumatically operated by electrical pedal.

Excellent welding on all weldable metals
Welding current and time electronic adjustments
Synchronous ignition SCR group with phase shift welding current adjustment to eliminate initial transient
Reduced consumption
Water cooled arms
Water cooled copper electrodeholders with adjustable height
Self-lubricated pneumatic components to eliminate oil deposits and to safeguard the environment from contaminants.
High versatility thanks to all different possible work configurations
Technical Data
Single phase input50/60 Hz400  V
Nominal maximum power45  kVA
Max. welding power75  kVA
Installed power24  kVA
Cross section connecting cables25  mm2
Fuse(delayed action)63  A
Secondary voltage5.2  V
Max.welding current14.2  kA
Electrode force at 600kPa (6bar)17.8  kA
Electrode force at 600kPa (6bar)280  daN
Water consumption at 300kPa(3bar)3.8  l/min
Uspetting force1020x390x1250  daN
Max. capacity on mild steel194  mm2
