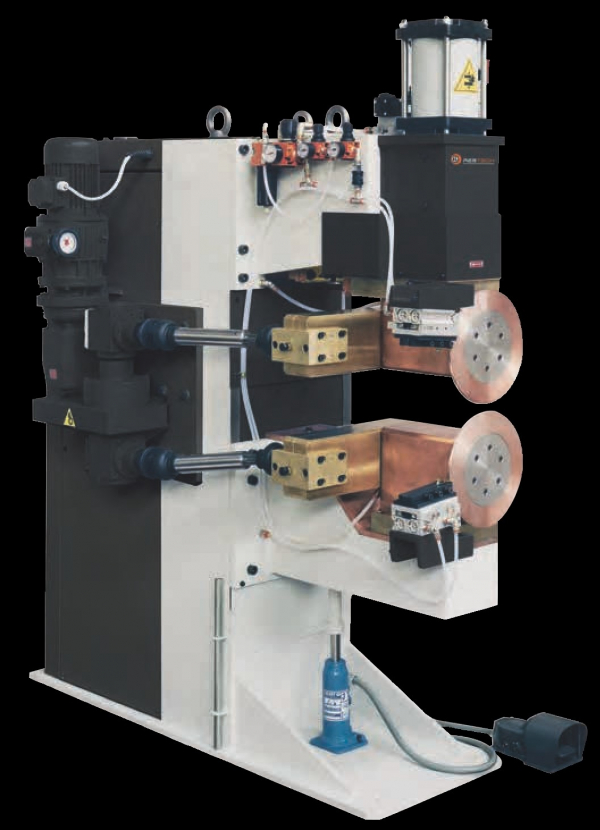

Seam resistance welding machine.
Common Characteristics
RT – RL Seam welders range are standard supplied for monophase mains connection. Three phase versions, also with Medium Frequency inverter (1000 Hz), are available for special applications. Medium frequency machine grants high speed welding and enables to join hardly weldable parts with reduced deformation. The wide range of the equipment configurations enables to obtain water tight seam welding of cylinders, fire estinguishers, radiators, tanks and similar items with excellent quality results.
FEATURES:
RT models for transversal welding
Water cooled seams heads in mercury bath
Synchronous electronic control (power + spot and pause regulation)
Technical Data
| Parameter | Value |
|---|
| Single phase input50/60 Hz | 400
V |
| Nominal maximum power | 180
kVA |
| Installed power | 180
kVA |
| Fuse(delayed action) | 400
A |
| Secondary voltage | 9.5
V |
| Electrode force at 600kPa (6bar) | 1200
daN |
| Water consumption at 300kPa(3bar) | 7
l/min |
| Max. capacity on mild steel | 2+2
mm2 |
| Dimensions | 1450х800х2100
mm |
| Weight | 1540
kg |
