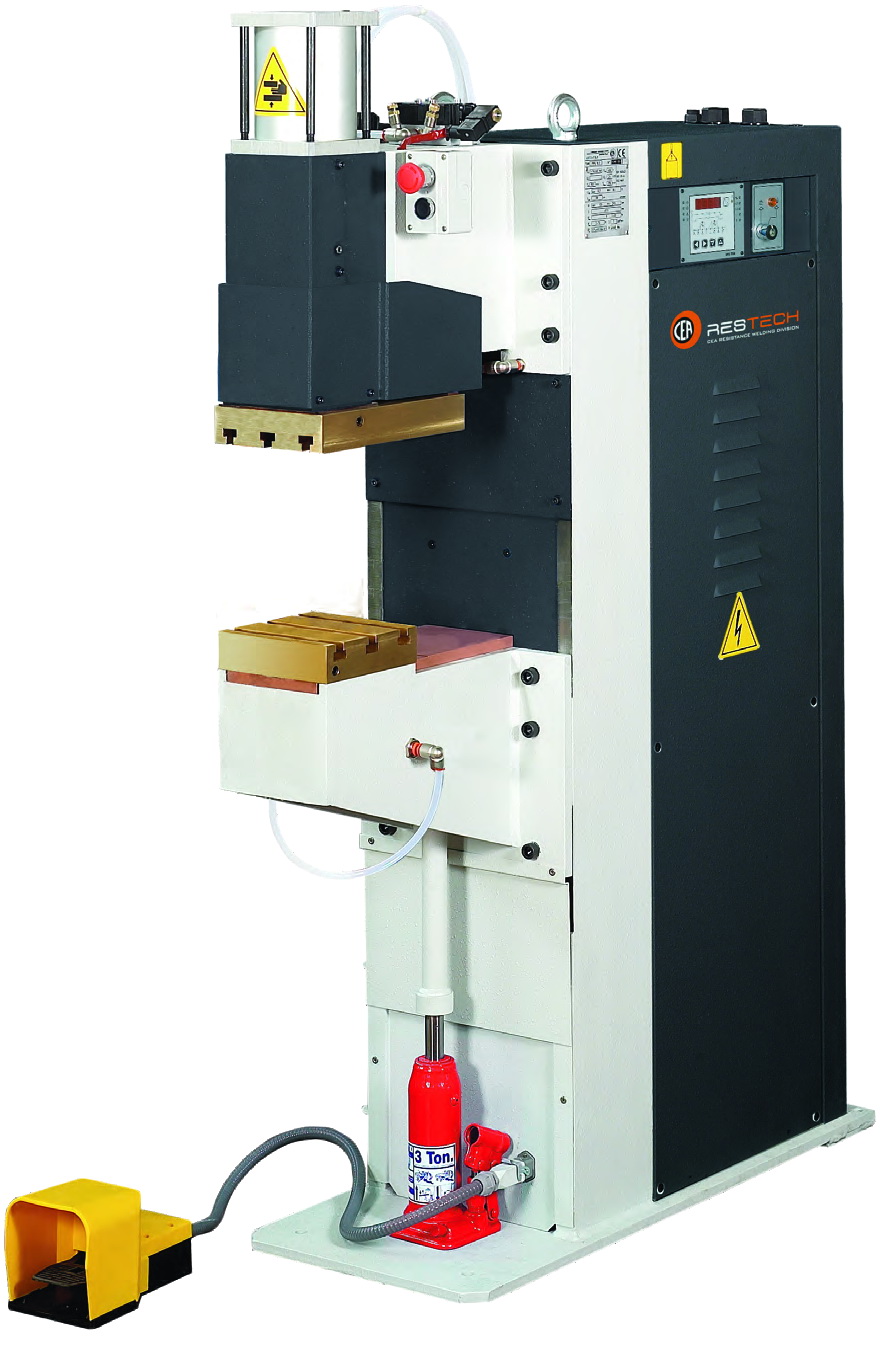

Spot welding machine CEA PPN 83

Fully satisfy a wide range of the industrial applications.
Common Characteristics
PPN 83, 103, 153 and 253, all supplied with lower platen adjustable in height and fitted with T-slots, enable the quick assembly of barholders, of electrodeholders or any dedicated tooling for a specific application.
Platens gap is easily and quickly adjustable without any intervention on the secondary circuit (patent pending).
Manual valve for upper head descent without pressure for cleaning, centering and ordinary maintenance of the electrodes.
Lower round arm with adjustable height and lateral adjustment.
Electrodeholders with electrodes for spot welding and possibility of easily fitting barholders for projection welding.
Inferior arm holder can be rotated for use with larger arm gap.
Also available with different length arms (Optional)
Inferior arms with pressed-in electrode (for welding pipes or similar) and longer electrodeholder on the upper arm (Optional)
Special version with platens only for projection welding
Technical Data
Single phase input50/60 Hz400  V
Nominal maximum power80  kVA
Max. welding power210  kVA
Installed power65  kVA
Cross section connecting cables50  mm2
Fuse(delayed action)150  A
Secondary voltage8.3  V
Secondary short circuit current32  kA
Max.welding current25  kA
Electrode force at 600kPa (6bar)6.8  kA
Electrode force at 600kPa (6bar)736  daN
Water consumption at 300kPa(3bar)8  l/min
Dimensions1115x400x1650  mm
Weight560  kg
