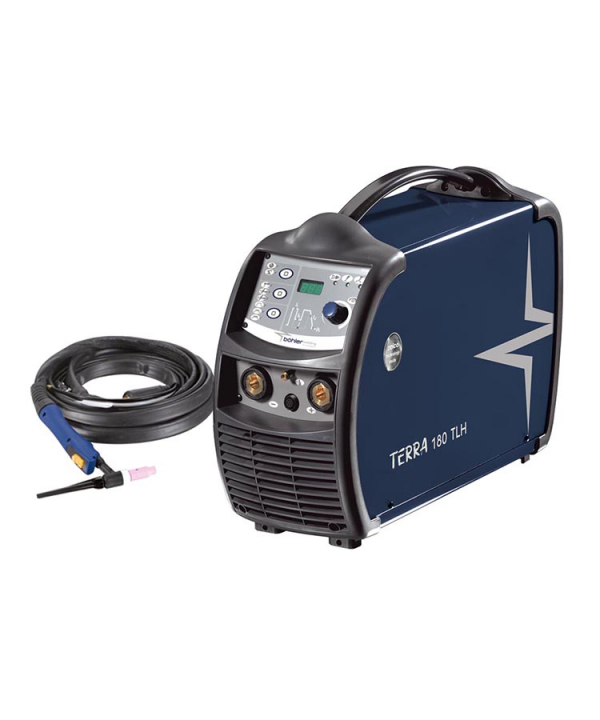

TERRA 180 TLH monophas Inverter TIG DC HF Start
Common Characteristics
TERRA 180 TLH is an inverter welding machine designed for TIG DC Lift (TIG DC HF) and with MMA function. Inverter technology provides low power consumption, light weight and compact size. The use of modern microprocessor technology and power electronics provides quick and easy adjustment of welding parameters.
TERRA 180 TLH provides direct current, which allows the welding of most alloy and non-alloy steels, stainless steels and cast iron.
TERRA 180 TLH is characterized by pulse and fast pulse mode (2500Hz).
The ST 1700 Up & Down burner is easy to use, with a 4m cable. With it you have direct control and remote control of the welding current. With the "Up" and "Down" buttons you can choose from the saved welding programs.
TERRA 180 TLH has an extremely easy and user-friendly digital control panel.
It is equipped with functions for control of the welding arc Hot Start, Arc Force control, Antisticking.
Thanks to the high temperature, shock and wear resistant housing, it is suitable for work in severe working and climatic conditions.
Remote control compatible.
WU cooling unit compatible.
Technical Data
| Parameter | Value |
|---|
| Voltage (50/60 Hz) | 1x230
V |
| Slow blow line fuse | 16
A |
| Adjustment range TIG | 3-170
A |
| Duty cycle TIG - 60 % | 160
A |
| Duty cycle TIG - 100 % | 140
A |
| IP protection rate | IP 23
S |
| Dimensions | 410x150x330
mm |
| Weight | 8.4
kg |
| 170
|
