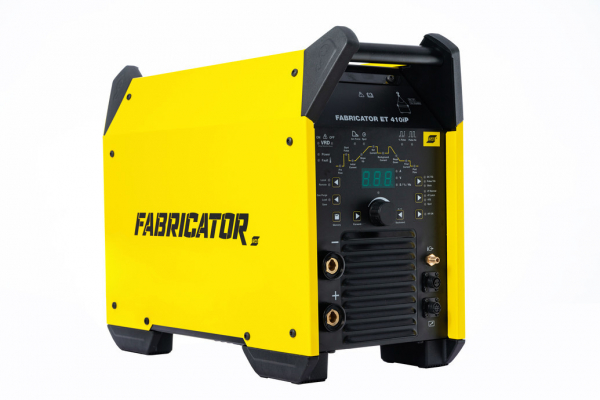

Inverter ESAB Fabricator ET410iP CE
Common Characteristics
Fabricator ET 410iP is a heavy-duty inverter-controlled power source for HF TIG Pulse welding and MMA (Stick) welding.
The Fabricator ET 410iP is built to withstand rugged use, making it a perfect solution for industrial usage. Ideal for heavy industries.
The intuitive control panel of the ET 410iP makes it easy to optimize settings, reducing the time taken for achieving the best weld characteristics
Equipped with High Frequency for easy arc starts and Start Pulse (micropulse) which preheats the Tungsten electrode for improved arc stability from the start.
Pulse background current between 10% and 90% of the set current and pulsing frequency from 0.5 to 250Hz, for optimal pulse in each application.
Spot mode for easy tack welding and 4TS to be able to pulse only when it’s necessary
Wide mains voltage tolerance allows for stable welding
Inverter controlled for high efficiency and low power consumption
Excellent welding performance with Stick electrodes
Technical Data
| Parameter | Value |
|---|
| Mains supply | 400/ 3
V/Ph |
| Setting range, MMA | 30 - 410
A |
| Setting range, TIG | 5 - 410
A |
| Maximum output 60% duty cycle | 410
A |
| Maximum output 100% duty cycle | 310
A |
| Maximum output 60% duty cycle, MMA | 410
A |
| Maximum output 100% duty cycle, MMA | 310
A |
| Dimensions, LxWxH | 525 x 280 x 475
mm x mm x mm |
| Weight | 38.5
kg |
