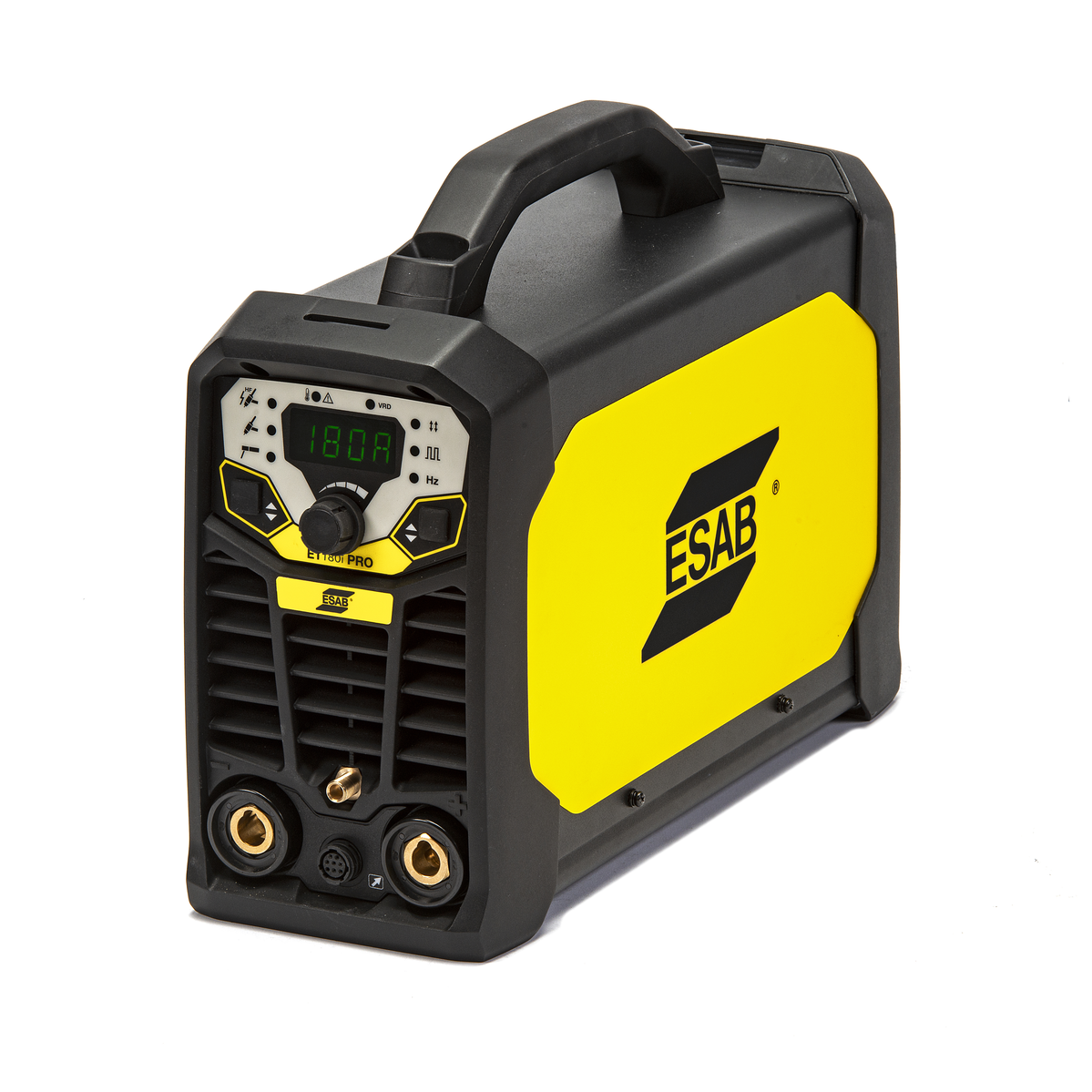

Inverter ESAB Rogue ET 180i CE
Common Characteristics
Rogue ET is powerful and easy to handle entry level high frequency start TIG machine. Rogue ET performs with exceptional arc characteristics, both in TIG and MMA mode.
Delivery includes power source with 3 m mains cable and plug, shoulder strap, 4 m TIG torch SR-B 26 type, a set of wear parts including tungsten
electrode, 3 m return cable with clamp.
Technical Data
| Parameter | Value |
|---|
| Mains supply | 230 V±15%/1
V/Ph |
| Setting range, MMA | 20-180
A |
| Setting range, TIG | 10-180
A |
| Maximum output 20% duty cycle | 180
m |
| Maximum output 60% duty cycle | 116
A |
| Maximum output 100% duty cycle | 90
A |
| Maximum output 20% duty cycle, MMA | 170
A |
| Maximum output 60% duty cycle, MMA | 97
A |
| Maximum output 100% duty cycle, MMA | 75
A |
| Enclosure class | IP23S
|
| Dimensions, LxWxH | 403x153x264
mm x mm x mm |
| Weight | 8.7
kg |
