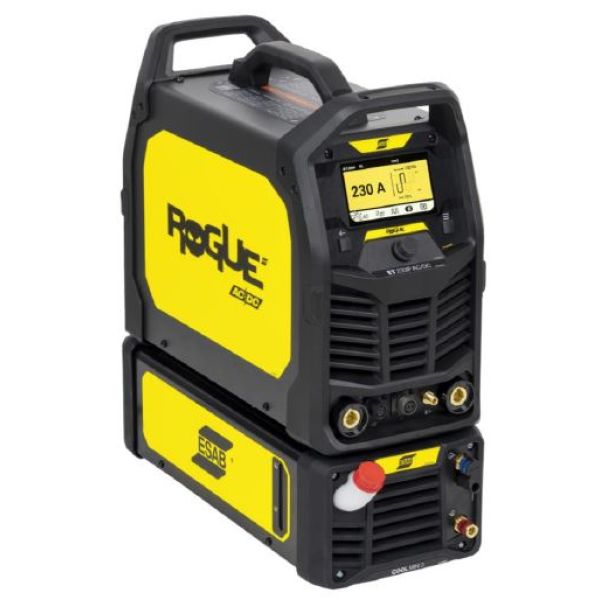

Inverter ESAB Rogue ET 230iP AC/DC W

Welding inverter ESAB Rogue ET 230iP AC/DC W with Exeor TIG SR 21 torch 4 m
Common Characteristics
Rogue ET 230iP AC/DC is a portable, high quality, professional AC/DC TIG welder with extended parameter options to excel at everyday aluminium, stainless steel and carbon steel welding.
An intuitive graphical user interface with a 5-inch colour display brings new functionality for quick and easy adjustments. The machine can tackle a wide range of thicknesses including very thin plates.
Customizable waveshapes (square, soft square, sinusoidal, triangle) enables optimized heat input for high penetration on thicker metals and low distortion on thin sheets. Pulsing capabilities in both DC and AC TIG offer enhanced weld puddle control allowing the welder to further tailor the arc for multiple applications. TIG arc starts are crafted for optimum performance based on selected tungsten electrode diameter and type.
Durable housing design combines robustness and functionality with multiple lift points for easy manoeuvrability in both workshop and field applications.

• Various AC/DC waveforms (square, soft square, sinusoidal, triangle) for optimal energy transfer
• TIG AC and DC pulse up to 200 Hz for increased control of heat input and weld pool.
• Built-in PFC circuit ensures a stable arc, even with extra-long input cables, up to 100 m
• New CoolMini 3 water-cooler for lightweight TIG torches
• High visibility intuitive 5-inch colour screen interface reduces downtime and improves accuracy
• Dual-current mode switches between two output current levels to control the heat input and the size of the weld pool
• Easy access to saved jobs by torch trigger
• Modular system with tool-less connection to trolley
• New Exeor TIG torch included
Technical Data
ParameterValue
Mains supply230/ 1  V/Ph
Fuse16  A
Setting range, MMA10 - 180  A
Setting range, TIG5 -230  A
Maximum output 30% duty cycle230  A
Maximum output 60% duty cycle163  A
Maximum output 100% duty cycle126  A
Maximum output 30% duty cycle, MMA180  A
Maximum output 60% duty cycle, MMA127  A
Maximum output 100% duty cycle, MMA99  A
Enclosure classIP 23S
