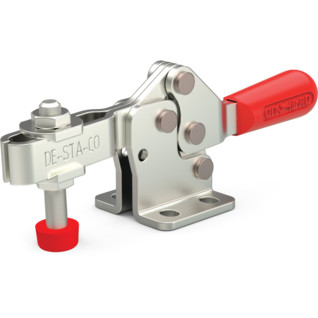

MANUAL, HORIZONTAL HOLD-DOWN LOCKING CLAMPS
Low silhouette hold down clamp features a handle that can be operated from either side or from behind
Common Characteristics
MANUAL, HORIZONTAL HOLD-DOWN LOCKING CLAMPS
Low silhouette hold down clamp features a handle that can be operated from either side or from behind
• Up to 150 lb. (670 N) capacity
• Supplied with neoprene spindle
• Stainless steel models available
• Standard Material – Steel
• Clamp Arm Style - U-Bar
• Base Mounting Style - Flange
Technical Data
| Parameter | Value |
|---|
| Maximum Holding Capacity | 670
N |
| Clamp Arm Length | 30.2
mm |
| Height Under Clamp Arm | 12.2
mm |
| Clamp Bar Opening (degrees) | 90
° (+ 10 °) |
| Handle Opening (degrees) | 170
° (+ 10 °) |
| Duty Cycle | 2
|
| Weight | 0.06
kg |
