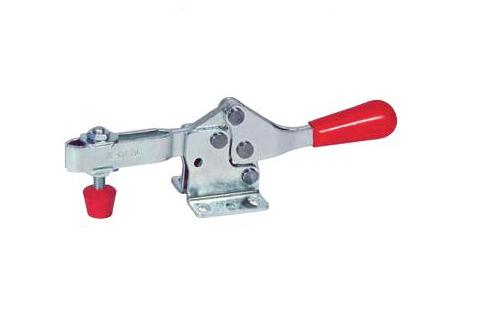

LOW-PROFILE, MANUAL HORIZONTAL HOLD-DOWN CLAMPS
Unique design gives greater hand clearance between the bar and handle.
Common Characteristics
LOW-PROFILE, MANUAL HORIZONTAL HOLD-DOWN CLAMPS
Unique design gives greater hand clearance between the bar and handle.
• Clamp supplied with neoprene spindle
• Low profile
• Standard Material – Steel
• Clamp Arm Style - U-Bar
• Base Mounting Style - Flange
Technical Data
| Parameter | Value |
|---|
| Maximum Holding Capacity | 900
N |
| Clamp Arm Length | 58.7
mm |
| Height Under Clamp Arm | 23.4
mm |
| Clamp Bar Opening (degrees) | 91
° (+ 10 °) |
| Handle Opening (degrees) | 61
° (+ 10 °) |
| Duty Cycle | 2
|
| Weight | 0.18
kg |
