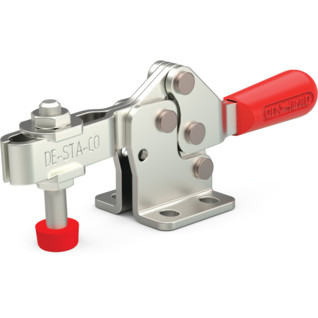

DESTACO 213-U LOW-PROFILE, MANUAL HORIZONTAL HOLD-DOWN CLAMPS
Unique design gives greater hand clearance between the bar and handle.
Common Characteristics
LOW-PROFILE, MANUAL HORIZONTAL HOLD-DOWN CLAMPS
Unique design gives greater hand clearance between the bar and handle.
• Large handle clearance in open positions
• Clamp supplied with neoprene spindle
• Low Profile
• Standard Material – Steel
• Clamp Arm Style - U-Bar
• Base Mounting Style - Flange
Technical Data
| Parameter | Value |
|---|
| Maximum Holding Capacity | 670
N |
| Clamp Arm Length | 36
mm |
| Height Under Clamp Arm | 16.5
mm |
| Clamp Bar Opening (degrees) | 90
° (+ 10 °) |
| Handle Opening (degrees) | 60
° (+ 10 °) |
| Duty Cycle | 2
|
| Weight | 0.08
kg |
