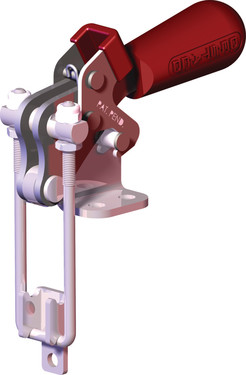

DESTACO 324-R - U-HOOK ,ONE HANDED PULL ACTION LATCH CLAMPS
The clamp is mounted perpindicular to the latch surface. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels.
Common Characteristics
The clamp is mounted perpindicular to the latch surface. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels
• Supplied with threaded U-hooks for easy adjustment
• Latch plate included
• With Toggle Lock Plus
• Patented Thumb Control Lever provides one-handed operation
• Optional hook lengths available
• Standard Material – Steel
• Base Mounting Style – Flange
• Hook Type - U-Hook (Vertical)
• Latch Plate – 324101
• Replacement Hook Assembly- 324215
Technical Data
| Parameter | Value |
|---|
| Maximum Holding Capacity | 2200
N |
| Drawing Movement | 38.7
mm |
| Hook Adjustble Range | 11.9
mm |
| Applied Force (pushing / pulling) | 31:1
|
| Weight | 0.11
kg |
