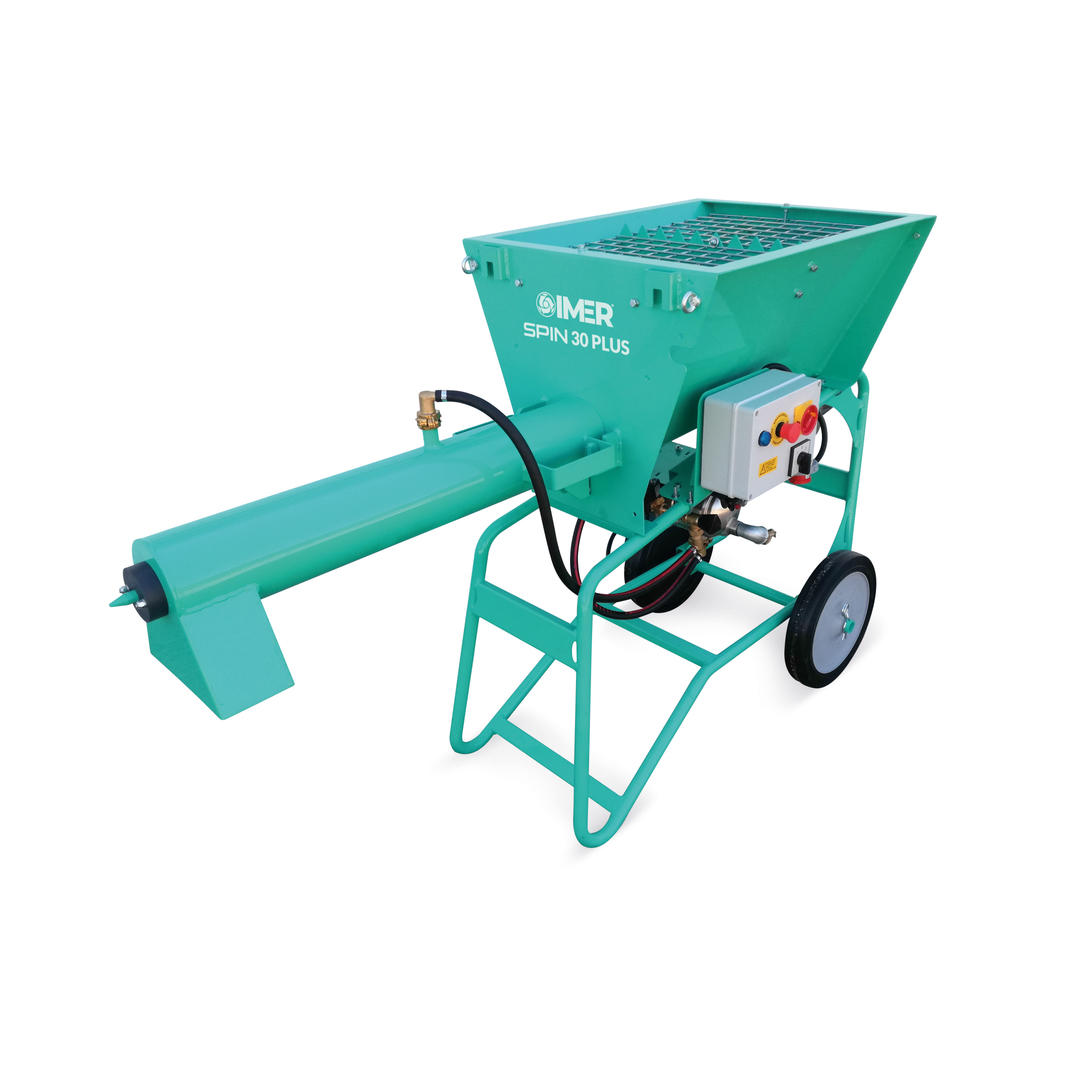

Continuous cycle mixer. Hopper capacity 110 l.
Continuous cycle mixer for premixed products in bags or in silos. Simple to use, light in handling and easy to clean. Powerful and reliable, it is particularly suitable for medium and large construction sites.
Common Characteristics

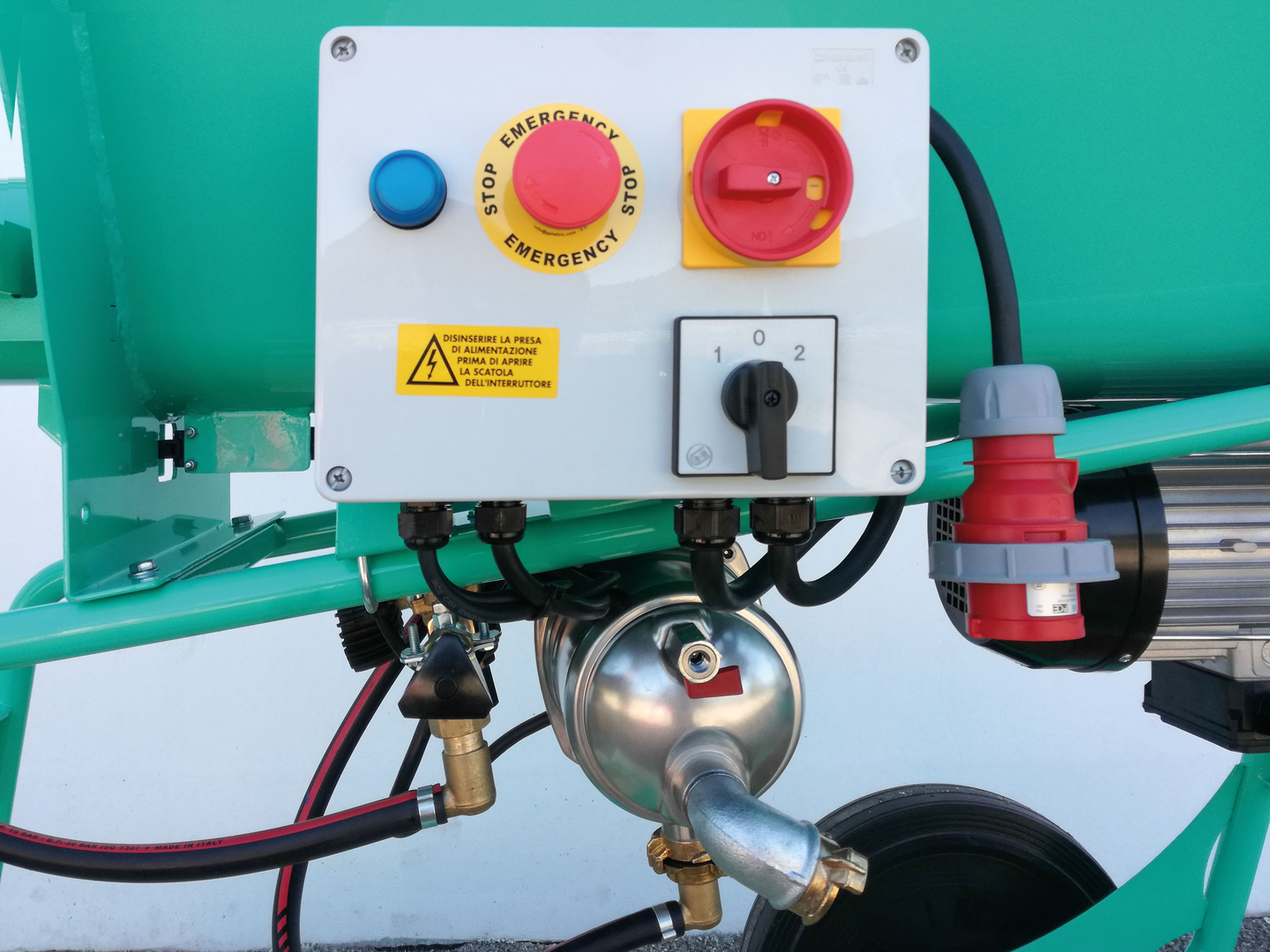

Continuous cycle mixer for premixed products supplied in bags or from the silo through a conveying system (Storm Plus). Light in handling, also thanks to the large-sized wheels (370?60 mm) and the essential but particularly robust frame. Simple to use and easy to clean at the end of the day. Equipped with an exclusive parallel-axis gearmotor and electronic starter (single-phase version), it is ideal for quickly mixing most dry premixed products with water. In the case of bag loading, the exclusive I-Dust grate (optional), when connected to a vacuum cleaner, significantly reduces the dust created when loading the material while keeping the work environment clean.Powerful and reliable, it is particularly suitable for medium and large construction sites. Combined with the Storm Plus conveying system connected to a silo, it becomes a fully automatic station for mixing mortars.In combination with a plastering pump it can form a mixing and pumping unit.
Technical Data
| Parameter | Value |
|---|
| Drum capacity | 110
l |
| Rotations | 280
rpm |
| Weight | 128
kg |
| Machine dimensions with el. motor L x H x W | 1800 х 1168 х 640
mm |
| Noise level | <65
dB(A) |
| Mixing performance | 35
l/min |
| Electric power supply | 230/50
V / Hz |
| Standard water pump | 0.45
kW |
