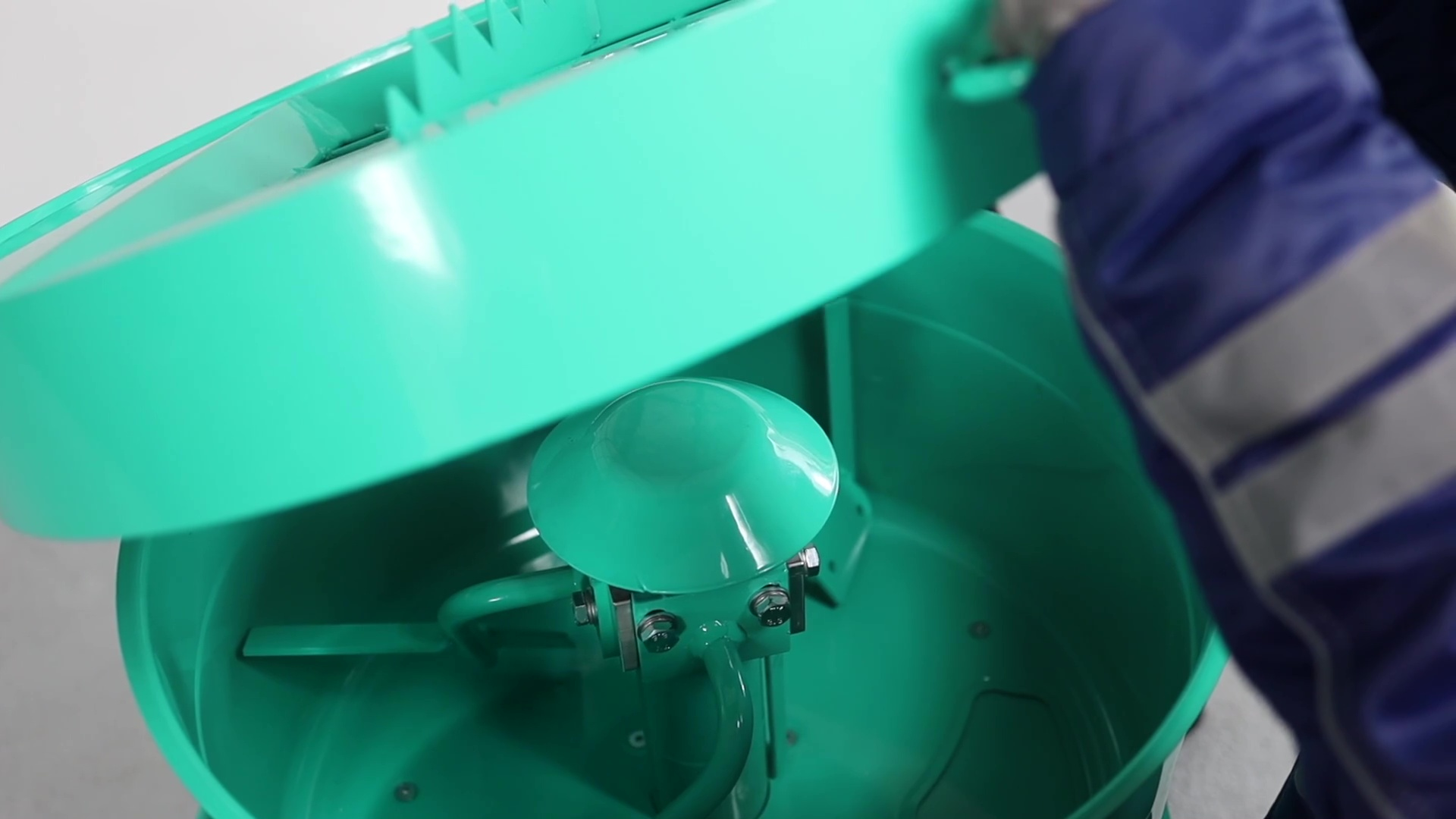

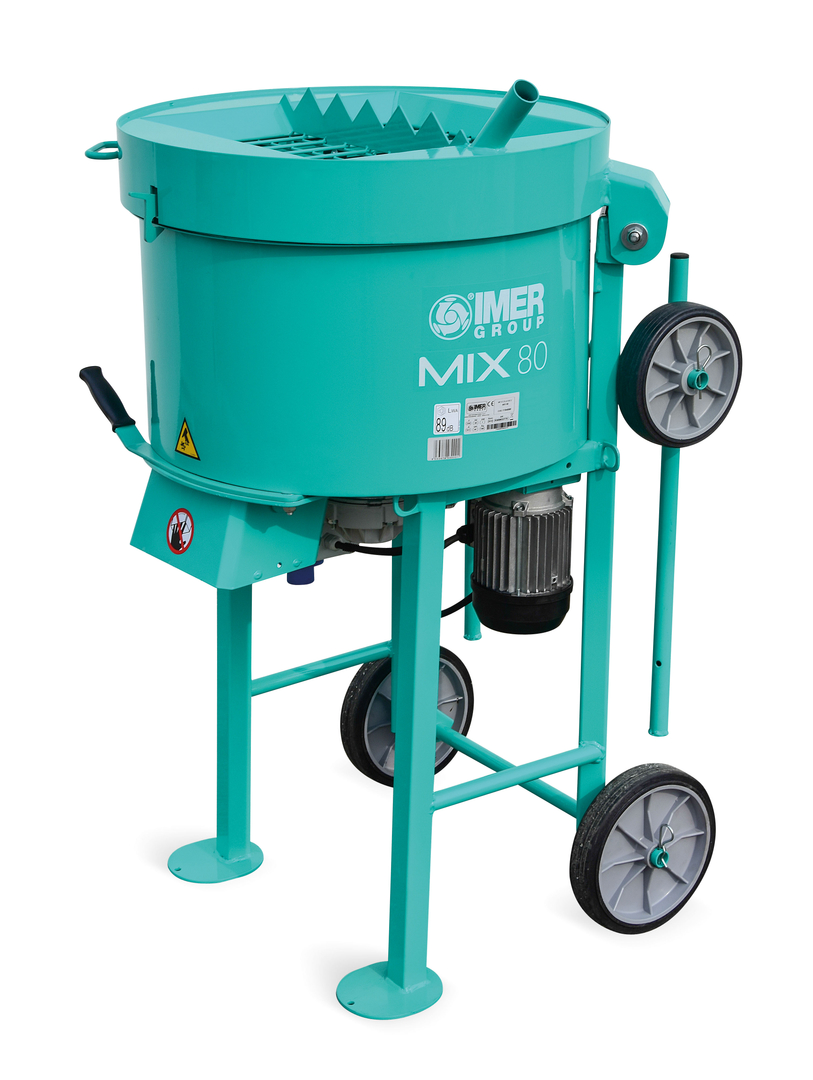

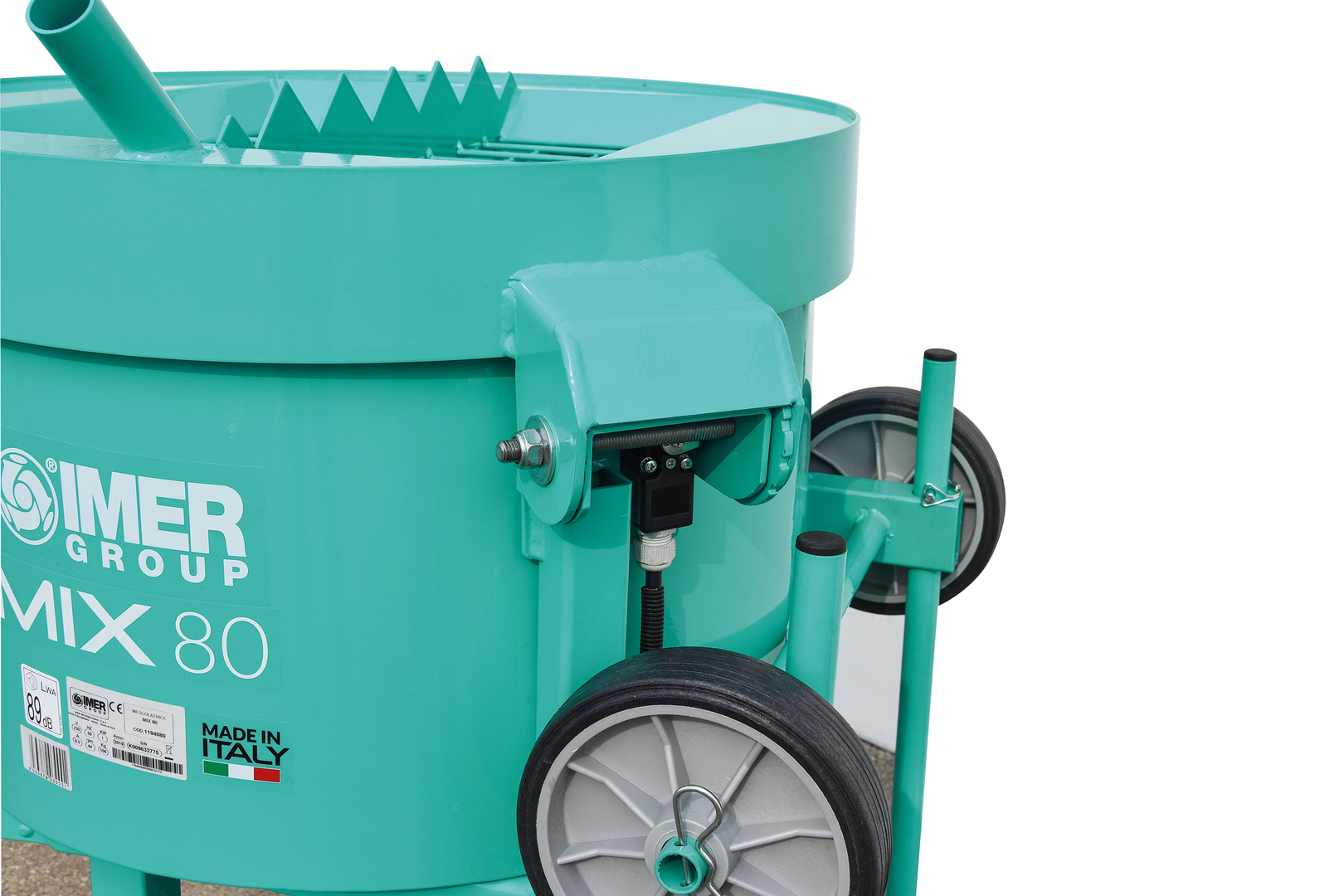

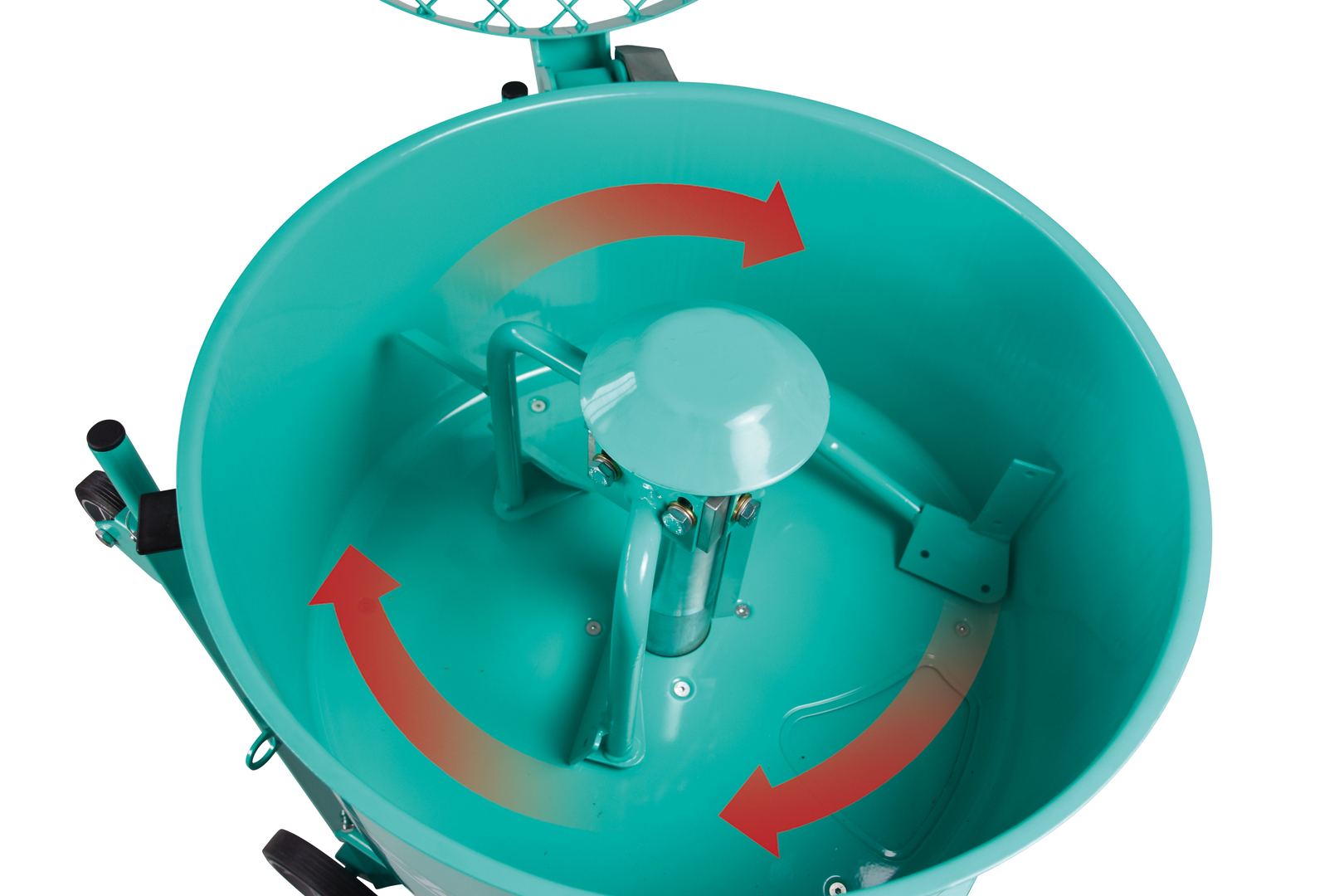

Planetary mortar mixer with forced action. Drum capacity 80 l.

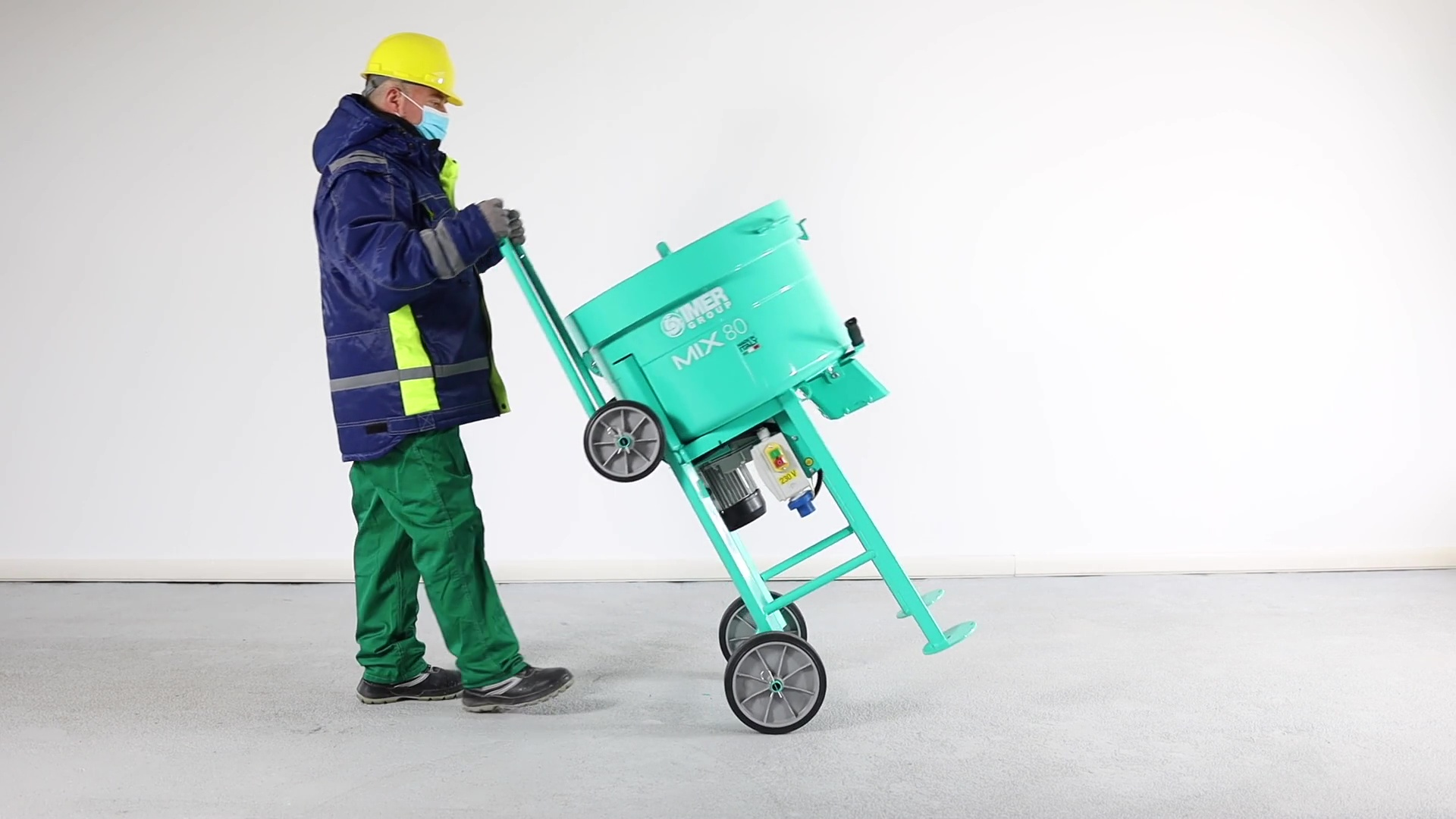

Small size, lightweight and easy loading in small transport vehicles. Ideal for mixing premixed or predosed products in bags in an optimal way and with as little effort as possible.
Common Characteristics

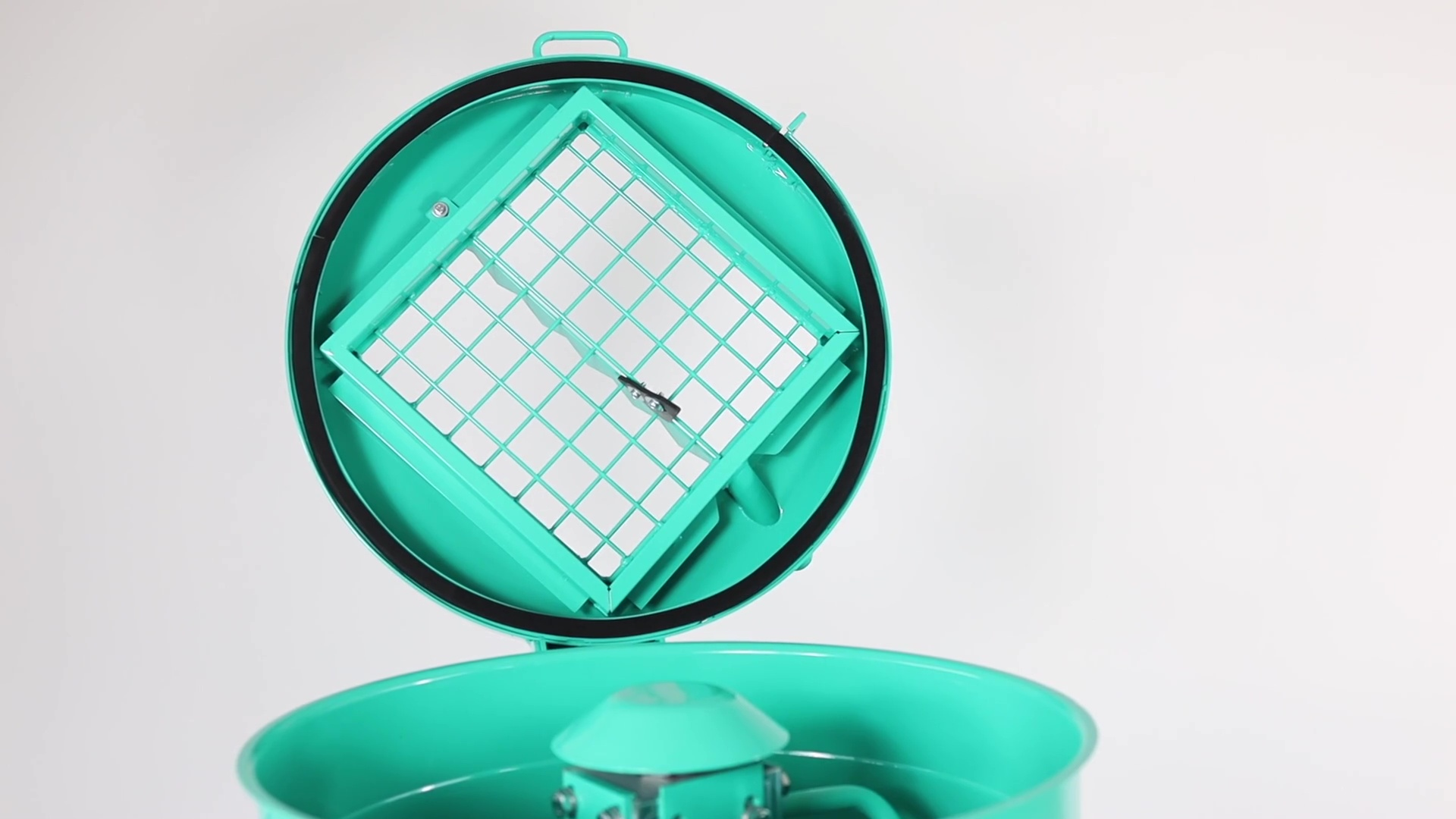

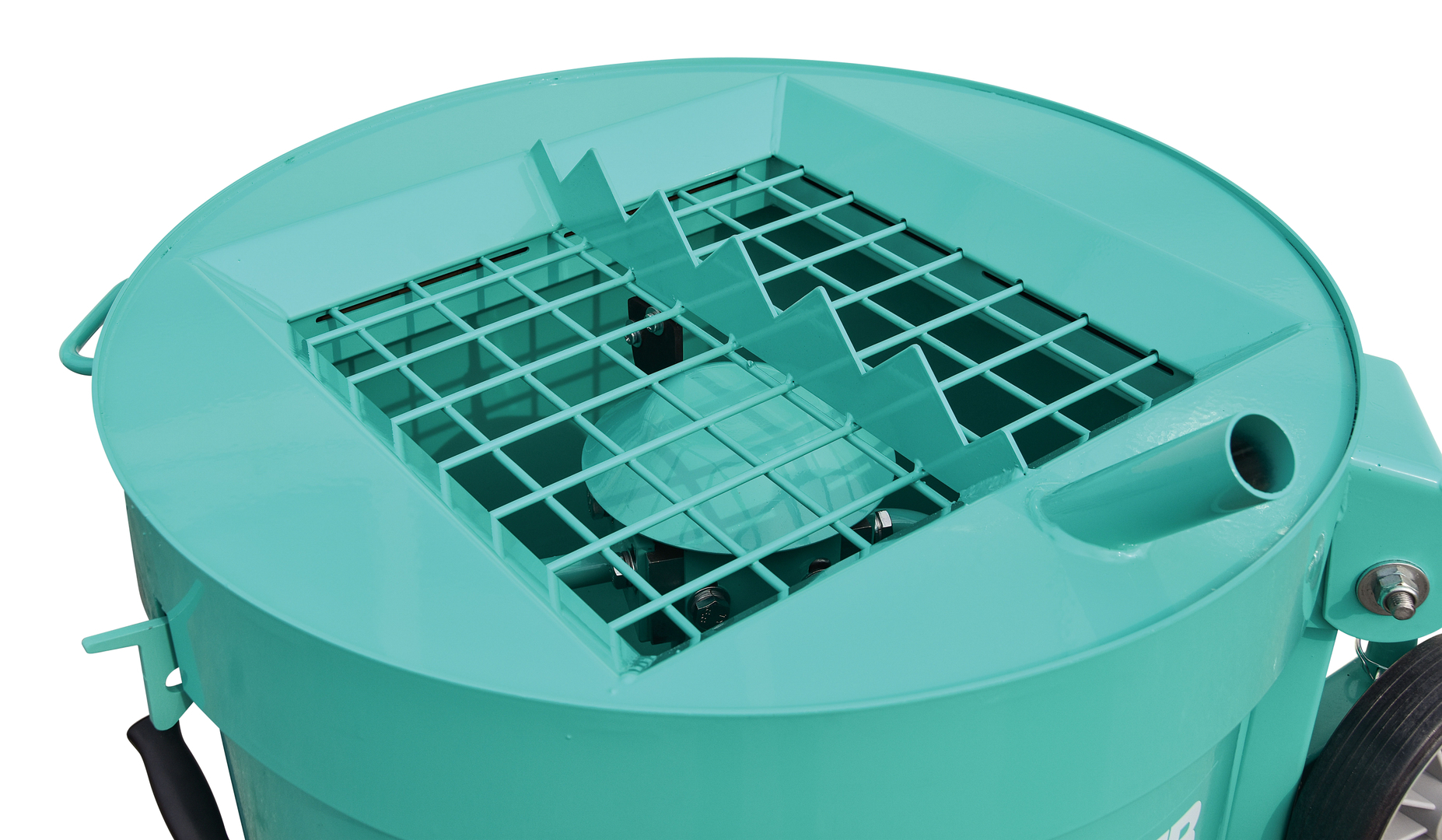

Small size, lightweight and easy loading in small transport vehicles. The I-DUST grid (standard), with connection for vacuum cleaner, limits the dust in the surrounding environment. Ideal for mixing premixed or predosed products in bags in an optimal way and with as little effort as possible. The homogeneity of the mixed product is unmatched, with total absence of lumps of cement in the case of mortars for floor screeds, or of lumps of fiber in the case of fiber-reinforced products.If necessary, Mix 80 can be used to mix traditional products, with the maximum mixing performance and homogeneity of the mixture.
Technical Data
| Parameter | Value |
|---|
| Drum capacity | 80
l |
| Batch output | 55
l |
| Drum diameter | 608
mm |
| Rotations | 44
rpm |
| Weight | 106
kg |
| Electric motor power rate | 1
kW |
| Machine dimensions with el. motor L x H x W | 780 х 1238 х 660
mm |
| Noise level | 70
dB(A) |
| Max grain size | 8
mm |
| Electric power supply | 230/50
V / Hz |
